Description:

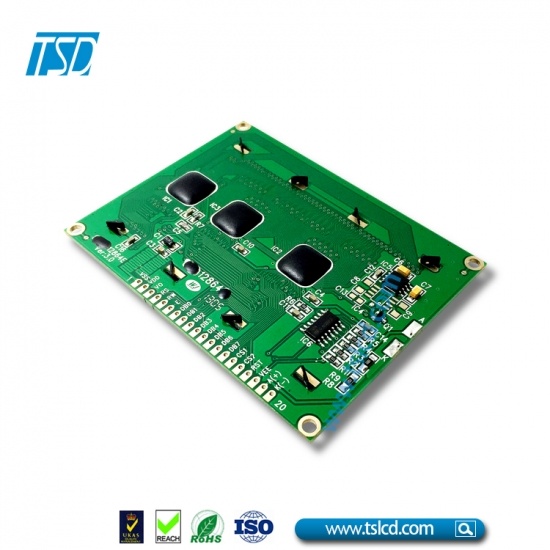

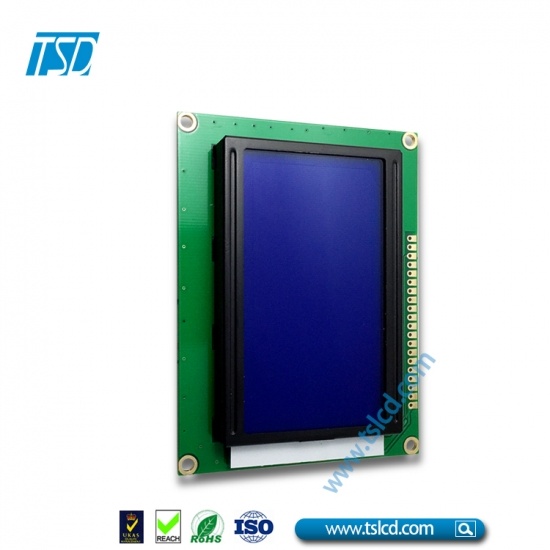

The TSM12864-1 is a 128*64 dots dot-matrix LCD module. It has a STN panel composed of 128 segments and 64 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.
|
||||||||||||||||||||||||||||||||
Drawing:
Interface Description:
| PIN | SYMBOL |
| 1 | CS1 |
| 2 | CS2 |
| 3 | VSS |
| 4 | VDD |
| 5 | V0 |
| 6 | RS |
| 7 | RW |
| 8 | E |
| 9 | DB0 |
| 10 | DB1 |
| 11 | DB2 |
| 12 | DB3 |
| 13 | DB4 |
| 14 | DB5 |
| 15 | DB6 |
| 16 | DB7 |
| 17 | RST |
| 18 | VOUT |
| 19 | A |
| 20 | K |
Applications:
For our TSM12864-1 dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.
Product Features:
1. TSM12864-1 dots lcd with 20pins
2. 5v working Voltage
3.S6B0107 IC chip
4.font table support English/European/Japanses/Russian
5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
