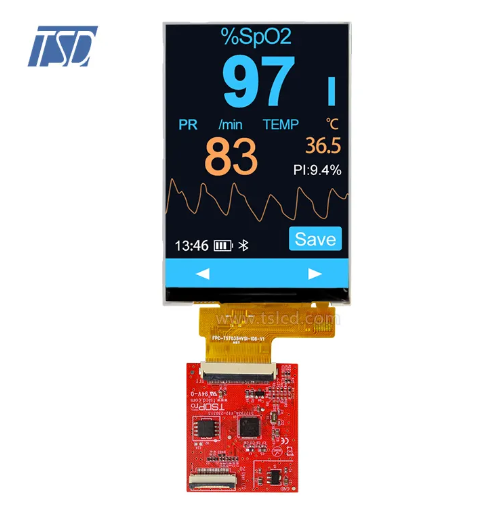

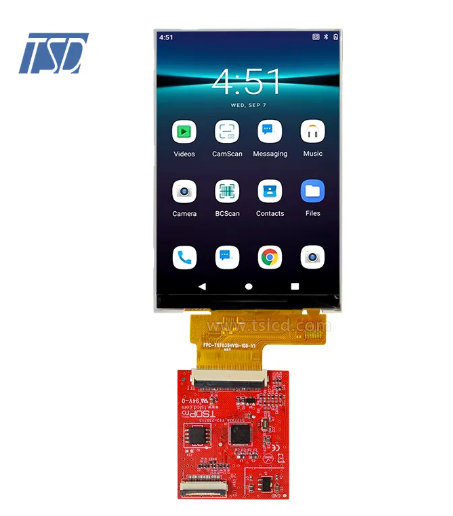

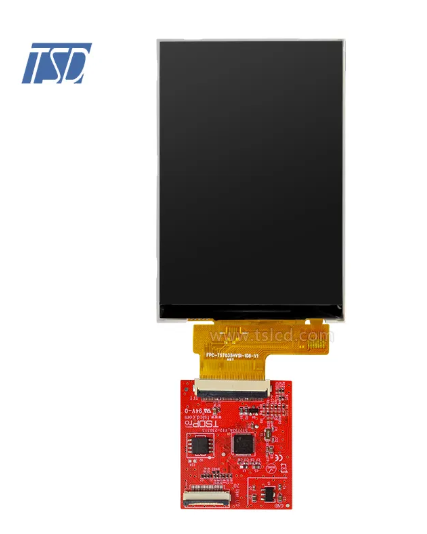

Serial Uart interface panel is added MCU and TFT controller on the TFT display module, the MCU is responsible for receiving from the remote mainboard interface port (Uart) command, then based on the defined commands to show images or animations, remote motherboard MCU don't need to write complex applications for showing images.

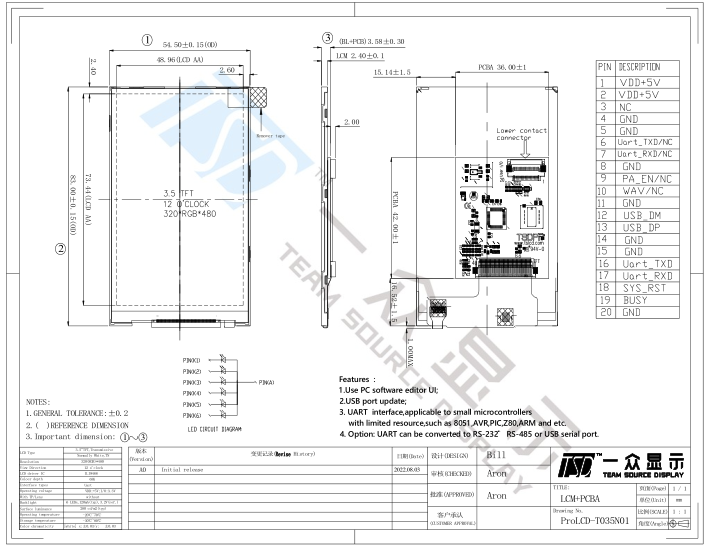

Drawing:
Specification
|
General Specification |
||
|
Part No. |
ProLCD-T035N01 |
|
|
Display Size(Diagonal) |
3.5 inch |
|
|
LCD type |
Transmissive,Normally white,TN |
|
|
Resolution |
320 x (RGB) × 480 |
|
|
View Direction |
12 o’clock |
|
|
Module Outline |
54.5(H) x 83.0(V) x2.4(T) |
|
|
Active Area |
48.96 (H) x 73.44 (V) |
|
|
Viewing Area |
ALL |
|
|
Backlight |
6 leds ， 120mA ， 3.2V |
|
|
Interface |
Uart |
|
|
Driver IC |
ILI9488 |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1~2 |
VDD+5V |
Power voltage +5V |
|
3 |
NC |
No connect |
|
4~5 |
GND |
Power ground |
|
6~7 |
NC |
No connect |
|
8 |
GND |
Power ground |
|
9 |
NC |
No connect |
|
10 |
NC |
No connect |
|
11 |
GND |
Power ground |
|
12 |
USB_DM |
This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data. |
|
13 |
USB_DP |
This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data. |
|
14~15 |
GND |
Power ground |
|
16 |
Uart_TXD |
This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU |
|
17 |
Uart_RXD |
This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal. |
|
18 |
SYS_RST |
Global reset pin |
|
19 |
BUS |
This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen i |
|
20 |
GND |
Power ground |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
