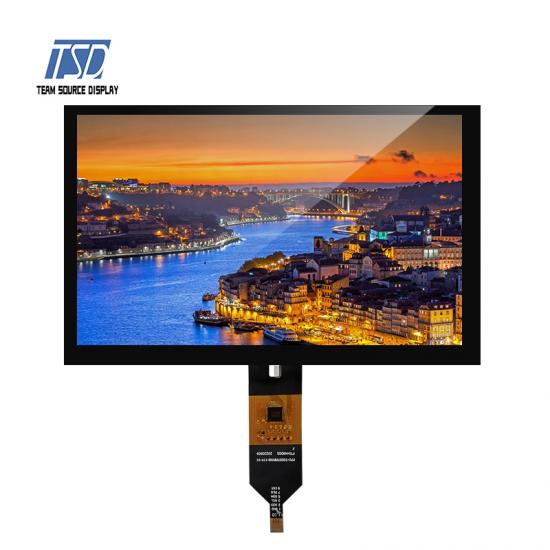

TSD 7 inch TFT LCD Module 800X480 resolution with RGB interface and IPS Panel

  • Model Name: TSM070WVHN-119
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 500 cd/m2
  • Control board: Built-in
  • Interface: RGB
  • Touch Screen: without, available to add
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃





Description:



TSM070WVHN-119 is 7 inch automotive tft lcd display with RGB 18 bits interface. This lcd display is with 800x480 resolution, IPS panel with full viewing direction. Outline dimension is 165.06x104.06x9.65mm, active area is 152.94x91.44mm. Power voltage is 3.3V. Color depth is 16.7M. Standard brightness is 500 cd/m2, TSD could also make the higher luminance basing on customer's need. Backlight design is 18.6V, 135mA. There is a control board on the back side of display, support backlight adjustment.

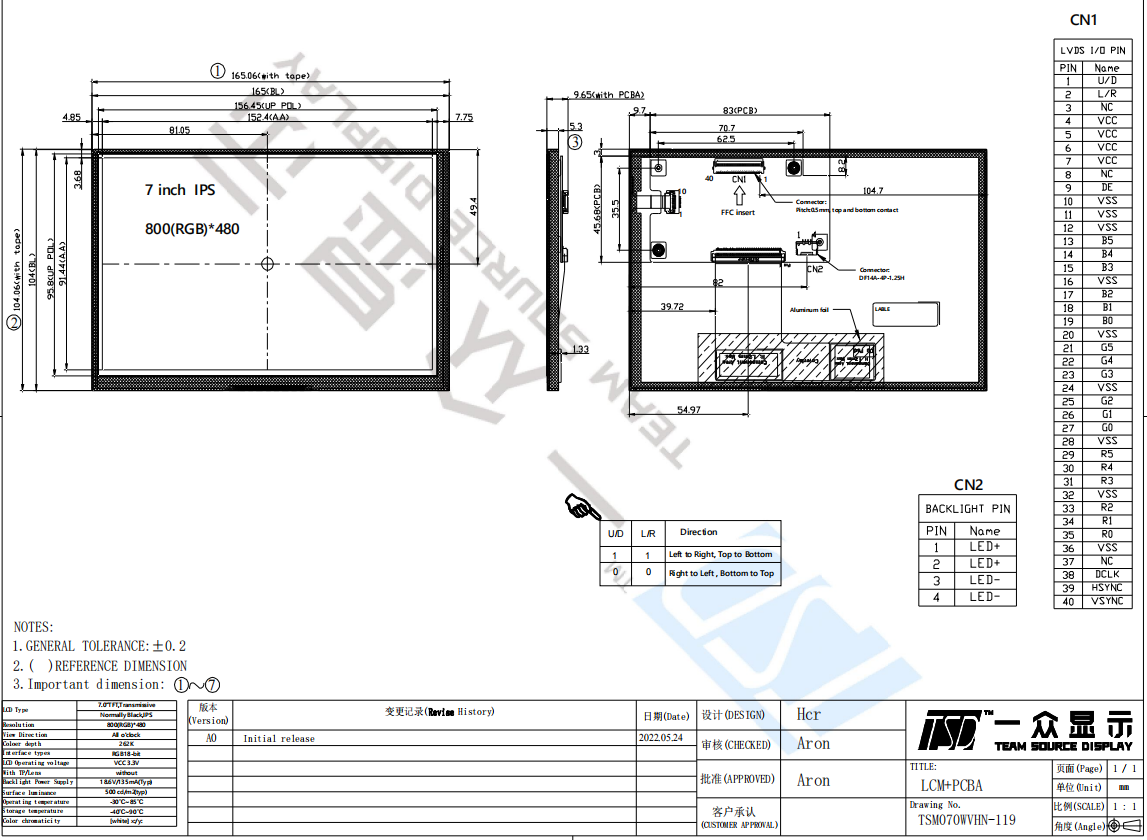

Drawing:




Specifications:



General Specification
Part No.  TST070WVHN-119
Outline Dimension(mm)  165.06x104.06x9.65
Active Area(mm) 152.4x91.44
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 500 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 U/D Up/down selection
2 L/R Left/right selection
3 NC No connection
4~7 VCC Power for Digital Circuit
8 NC No connection

9

DE Data Input Enable
10~12 VSS Power ground
13 B5 Blue data
14 B4 Blue data
15 B3 Blue data
16 VSS Power ground
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data
20 VSS Power ground
21 G5 Green data
22 G4 Green data
23 G3 Green data
24 VSS Power ground
25 G2 Green data
26 G1 Green data
27 G0 Green data
28 VSS Power ground
29 R5 Red data
30 R4 Red data
31 R3 Red data
32 VSS Power ground
33 R2 Red data
34 R1 Red data
35 R0 Red data
36 VSS Power ground
37 NC No connection
38 DCLK Sample clock
39 HSYNC Horizontal Sync input
40 VSYNC Vertical Sync input





Backlight Pins Description
Pin No.  Symbol Description
1 LED+ LED Anode
2 LED+ LED Anode
3 LED- LED Cathode
4 LED- LED Cathode
