Description:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.08”contains 128*160 dots and the Active area is 35.04 (L) x28.03 (W)

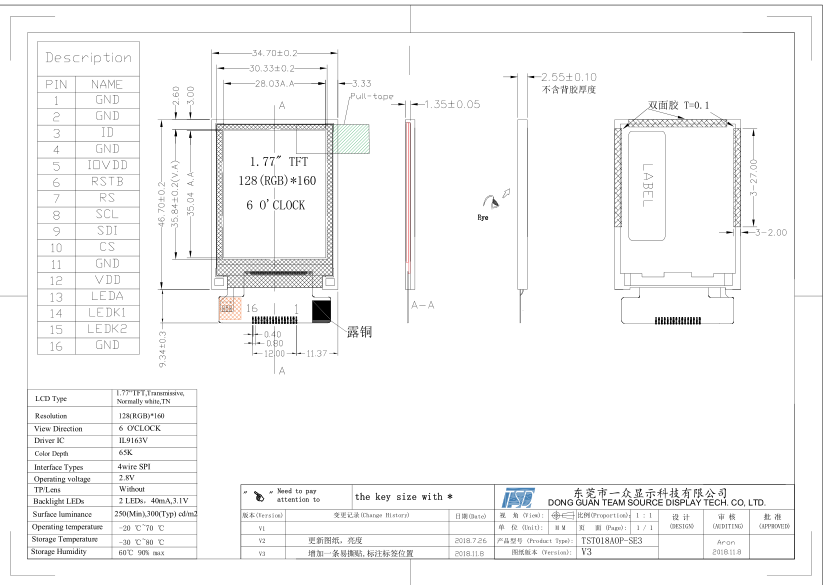

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST018AOP-SE3 |
|
|
Display Size(Diagonal) |
1.08 inch |
|
|
LCD type |
a-Si TFT, Positive, Transmissive |
|
|
Resolution |
128 x (RGB) × 160 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
46.70 (L) x 34.70(W) x 2.55(T) |
|
|
Active Area |
35.04 (L) x28.03 (W) |
|
|
Viewing Area |
6 o’clock |
|
|
Back light |
2-LED White Color |
|
|
Driver IC |
ILI9163V |
|
|
Interface |
SPI interface |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1-2 |
GND |
System Ground. (0V) |
|
3 |
NC |
OPEN |
|
4 |
GND |
GROUND |
|
5 |
IOVCC |
POWER SUPPLY CIRCUIT FOR INTERFACE PINS(1.8V/2.8V) |
|
6 |
RST |
Chip reset pin (“Low Active”). |
|
7 |
RS |
data/ command selection |
|
8 |
SCL |
as a synchronous clock |
|
9 |
SDI |
Serial data input / output |
|
10 |
CS |
Chip select signal. |
|
11 |
GND |
GROUND |
|
12 |
VDD |
POWER SUPPLY CIRCUIT(2.8V) |
|
13 |
A |
BACKLIGHT+ |
|
14-15 |
K1,K2 |
BACKLIGHT |
|
16 |
GND |
GROUND |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
