Description:

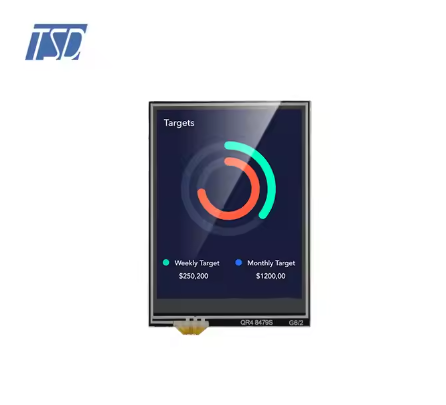

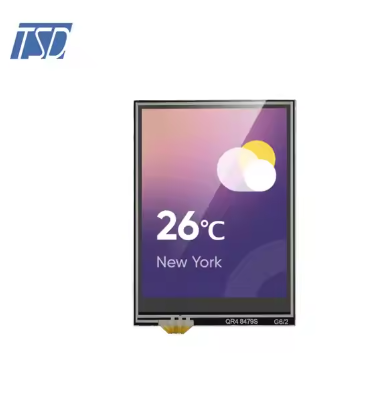

ProLCD-T024P01 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFT LCD panel, driver IC, FPC, backlight and capacitive touch screen. The active display area is a 2.4-inch measurement on the diagonal, with a native resolution of 240(RGB)*320. The characteristics of this product are shown in the following table below.

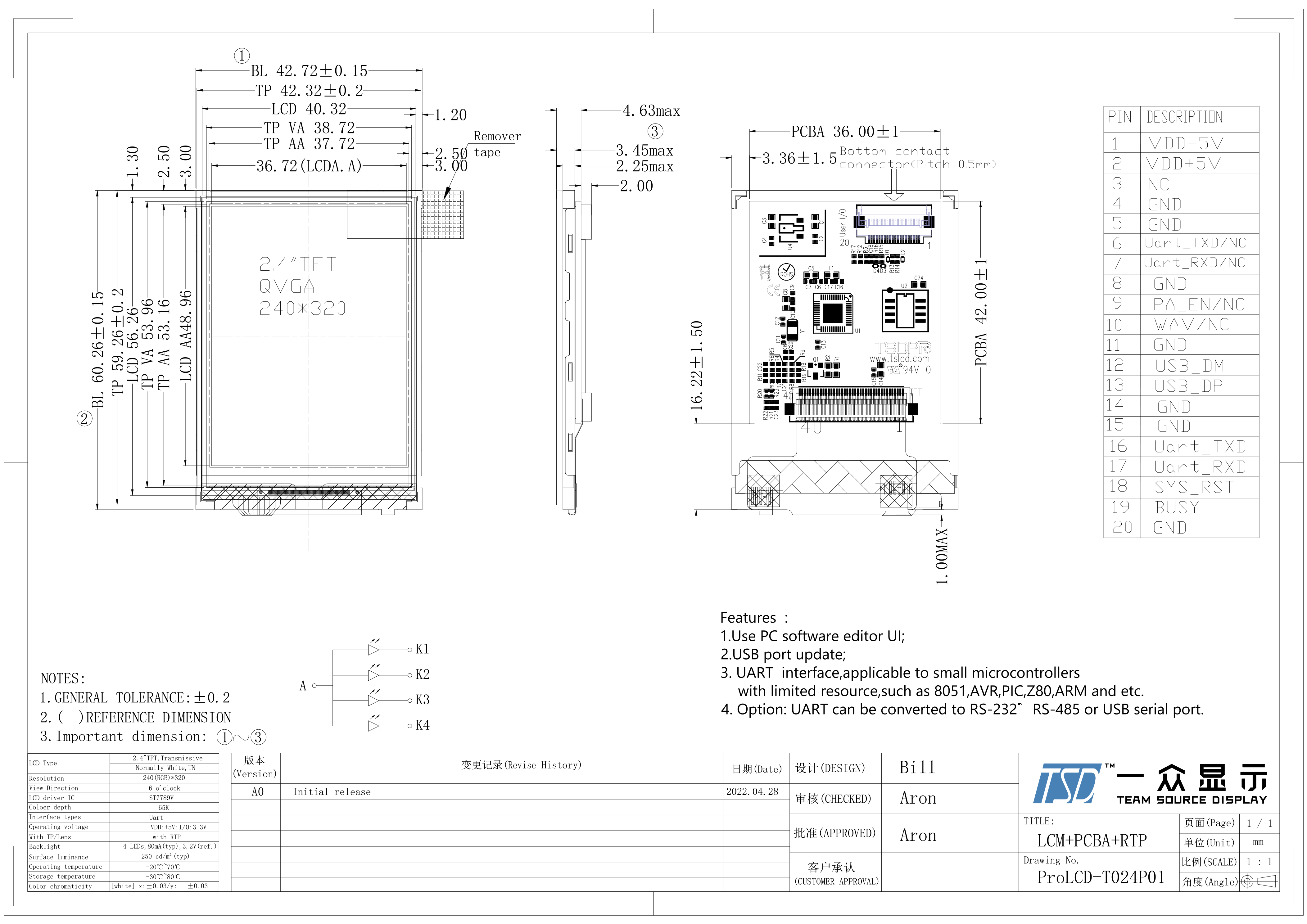

Drawing:
Specification
|
General Specification |
||
|
Part No. |
ProLCD-T024P01 |
|
|
Display Size(Diagonal) |
2.4 inch |
|
|
LCD type |
2.4"TFT,Transmissive |
|
|
Resolution |
240*320 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
60*42 |
|
|
Active Area |
48.96*37.72 |
|
|
Coloer depth |
65K |
|
|
Backlight |
4 LEDs,80mA(typ),3.2V(ref.) |
|
|
With TP/Lens |
with RTP |
|
|
Interface |
Uart |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
