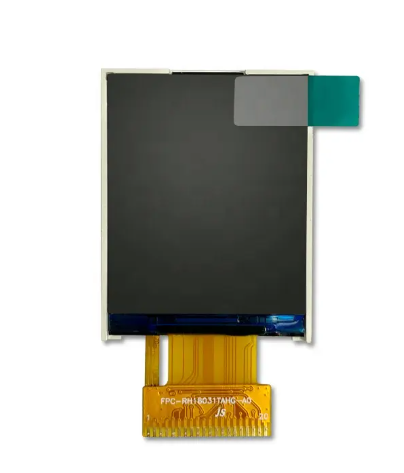

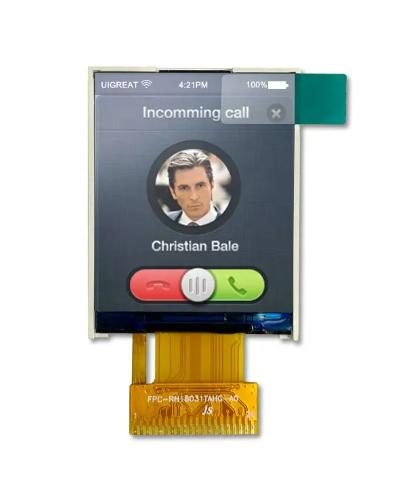

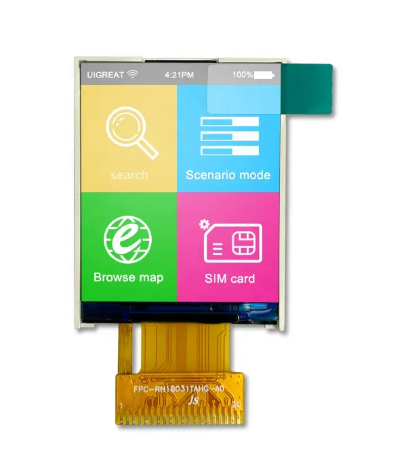

TSD 1.8 Inch TFT LCD Customization lcd panel 128*160 resolution

General Specification

Part No.

TST018QQHG-13

Display Size(Diagonal)

1.77 inch

LCD type

Transmissive,Normally white,TN

Resolution

128 x (RGB) × 160

View Direction

6 o’clock

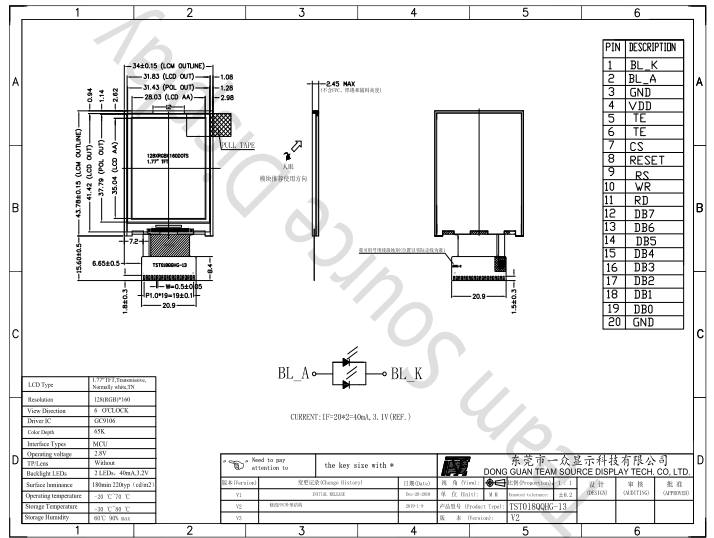

Module Outline

34(H) x 43.78(V) x 2.45(D)

Active Area

28.03 (H) x 35.04 (V)

Viewing Area

ALL

Backlight

2 LEDs，40mA

Interface

MCU8-bit

Driver IC

GC9106

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～60

Storage Temperature

-30～70

Pins Description

Pin No.

Symbol

Description

1

BL_K

Backlight K Cathode input pin.

2

BL_A

Backlight A Aothod input pin.

3

GND

System Ground. (0V)

4

VDD

Power supply.

5-6

TE

Tearing effect output pin to synchronize MPU to frame writing, activated by

S/W command.

7

CS

Chip select input pin ( "Low" enable).

8

RESET

This signal will reset the device and must be applied to properly

Signal is active low.

9

RS

This pin is used to select “ Data or Command ” in the parallel interface

10

WR

Write enable in 8080 MCU parallel interface.

11

RD

Read enable in 8080 MCU parallel interface.

12-19

DB7-DB0

Data bus.

20

GND

System Ground. (0V)
