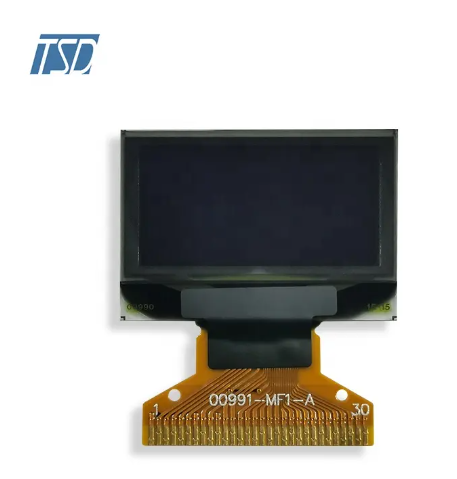

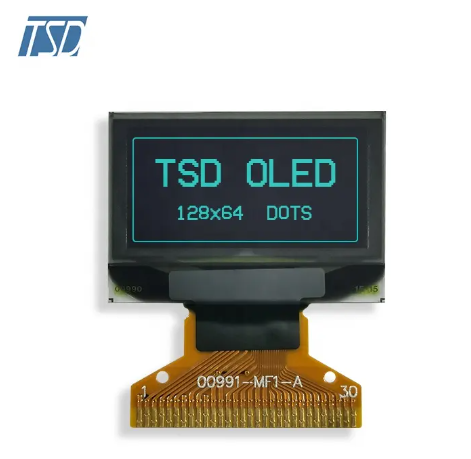

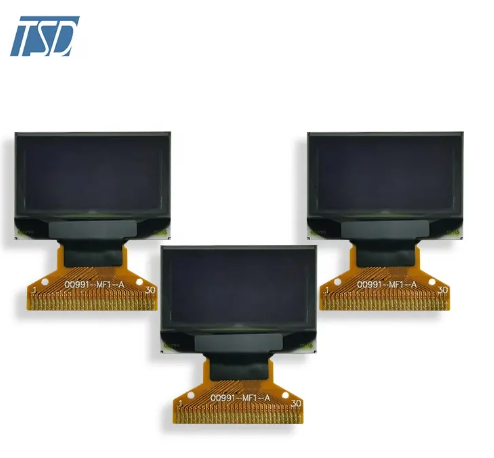

TSD 168*64 0.96 inch small size OLED Customization lcd panel

General Specification

Dot Matrix

128(W)×64(H)

Dot Size

0.154(W)×0.154 (H)

Dot Pitch

0.17(W)×0.17 (H)

Aperture Rate

82

Active Area

21.744(W)×10.864 (H)

Panel Size

26.7(W)×19.26(H)×1.02 (T)

Module Size

26.7(W)×31.26(H)×1.25 (T)

Diagonal A/A Size

0.96

Module Weight

1.27±10%

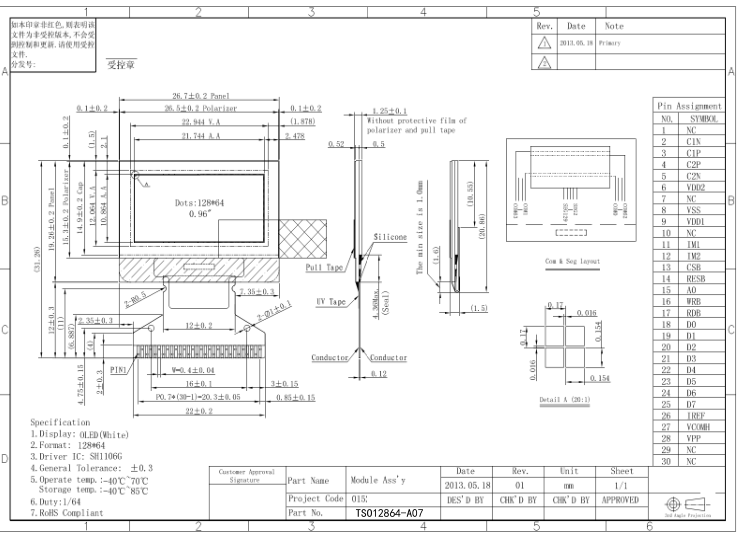

Pins Description

Pin No.

Symbol

Description

1,29,30

NC

No connect

2

C1N

onnect to charge pump capacitor.

These pins are not used and should be disconnected when Vpp is supplied externally.

3

C1P

4

C2P

Connect to charge pump capacitor.

These pins are not used and should be disconnected when Vpp is supplied externally.

5

C2N

6

VDD2

3.0 – 4.2V power supply pad for Power supply for charge pump circuit.

This pin can be disconnected or connect to VDD1 when VPP is supplied externally

7

NC

No Connection.

8

VSS

Ground.

9

VDD1

Power supply input: 1.65 - 3.5V

10

NC

No Connection.

11

IM1

8080 I²C 6800 4-wire SPI

12

IM2

IM1 1 1 0 0

IM2 1 0 1 0

13

CSB

This pad is the chip select input. When CS = “L”, then the chip select becomes active,and data/command I/O is enabled.

14

RESB

This is a reset signal input pad. When RES is set to “L”, the settings are initialized.

The reset operation is performed by the RES signal level.

15

A0

This is the Data/Command control pad that determines whether the data bits are data

or a command.

A0 = “H”: the inputs at SI are treated as display data.

A0 = “L”: the inputs at SI are transferred to the command registers.

In I²C interface, this pad serves as SA0 to distinguish the different address of

OLED driver.

16

WRB

This is a MPU interface input pad.

When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080

MPU WR signal. The signals on the data bus are latched at the rising edge of the WR

signal.

When connected to a 6800 Series MPU: This is the read/write control signal input

terminal.

When R/W = “H”: Read.When R/W = “L”: Write.

17

RDB

This is a MPU interface input pad.

When connected to an 8080 series MPU, it is active LOW. This pad is connected to

the RD signal of the 8080 series MPU, and the data bus is in an output status when

this signal is“L”.

When connected to a 6800 series MPU , this is active HIGH. This is used as an enable

clock input of the 6800 series MPU.

When RD = “H”: Enable.When RD = “L”: Disable.

18~25

D0~D7

This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard

MPU data bus.

When the serial interface is selected, then D0 serves as the serial clock input pad

(SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to

high impedance.

When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL)

and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to

high impedance.

26

IREF

This is a segment current reference pad. A resistor should be connected between this

pad and VSS. Set the current at 12.5μA.

27

VCOMH

This is a pad for the voltage output high level for common signals.

A capacitor should be connected between this pad and VSS.

28

VPP

OLED panel power supply. Generated by internal charge pump.

Connect to capacitor. It could be supplied externally
