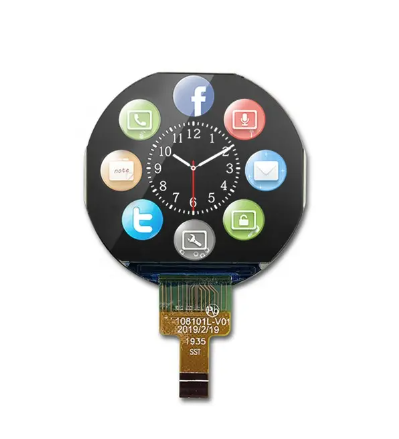

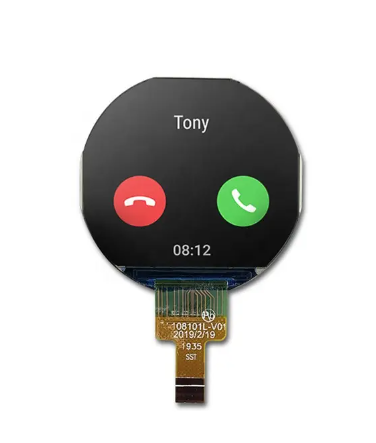

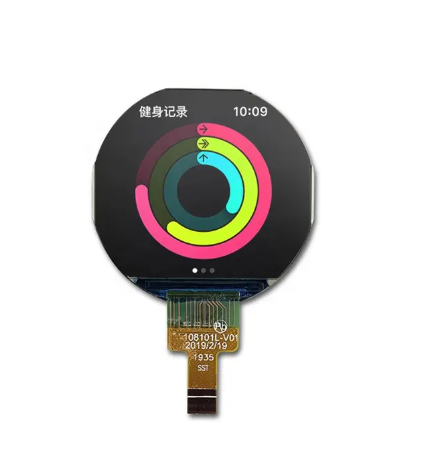

Description:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.08” contains 240(RGB)X210 dots and can display up to 65k colors.

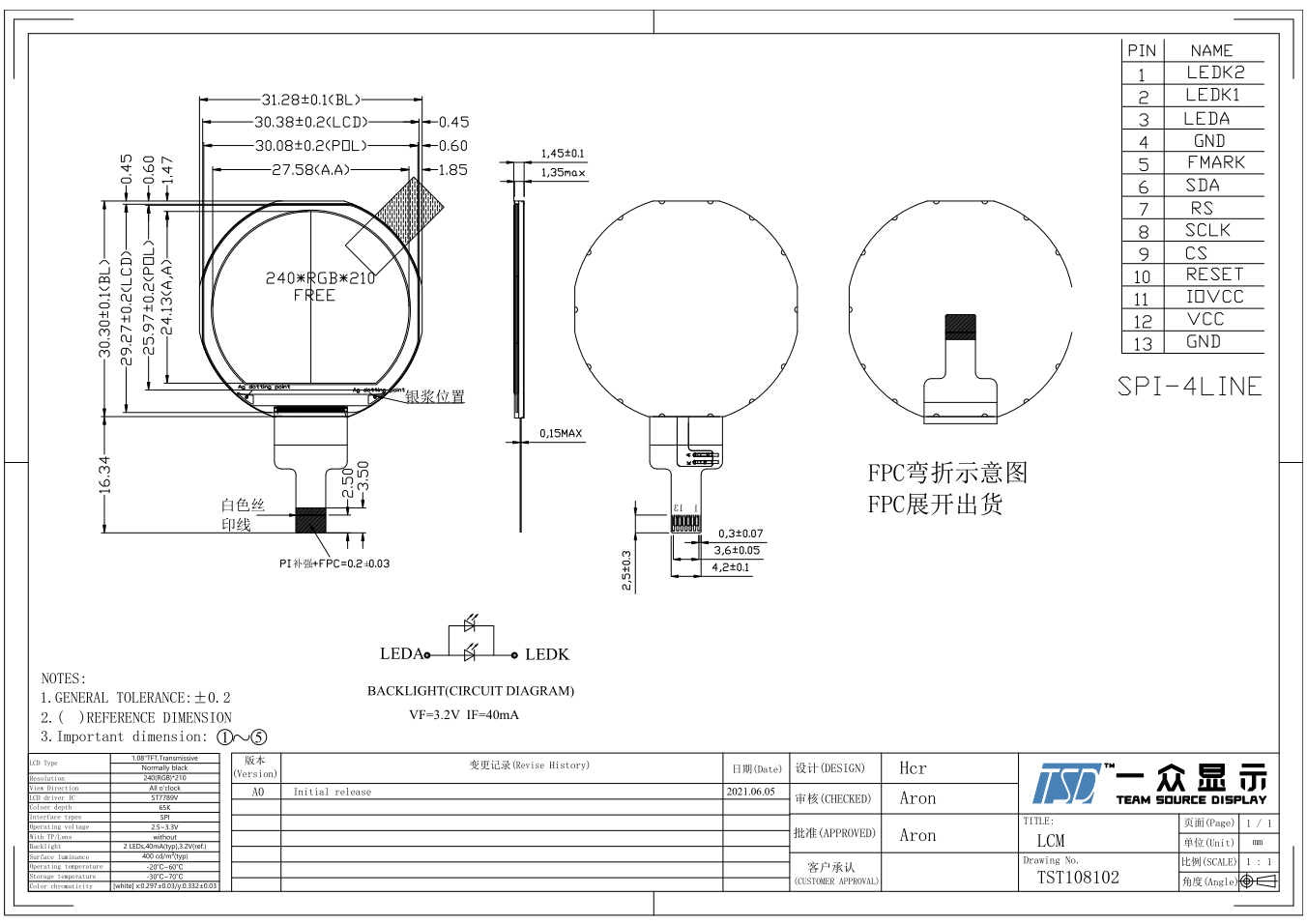

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST108102 |
|
|
Display Size(Diagonal) |
1.08 |
|
|
LCD type |
α-Si TFT |
|
|
Display Mode |
IPS / Transmissive / Normally Black |
|
|
Resolution |
240RGB x 210 |
|
|
View Direction |
All |
|
|
Module Outline |
31.28(H) ×30.3(V)×1.45(T) (Note 1 ) |
|
|
Active Area |
27.58 (H)×24.13(V) |
|
|
Viewing Area |
ALL |
|
|
Display Colors |
65K |
|
|
Interface |
4-SPI |
|
|
Driver IC |
ST7789V2 |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
