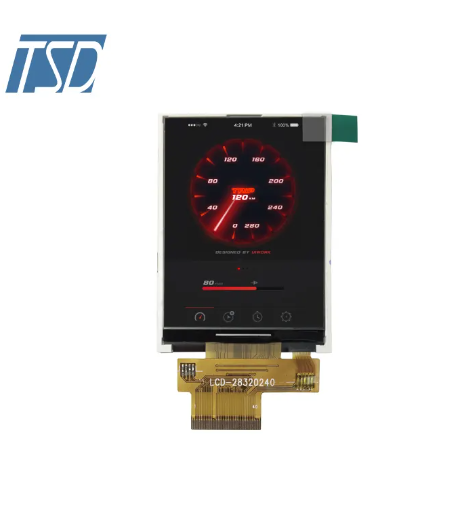

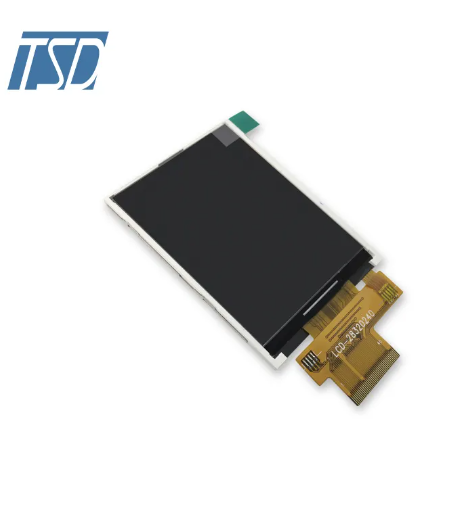

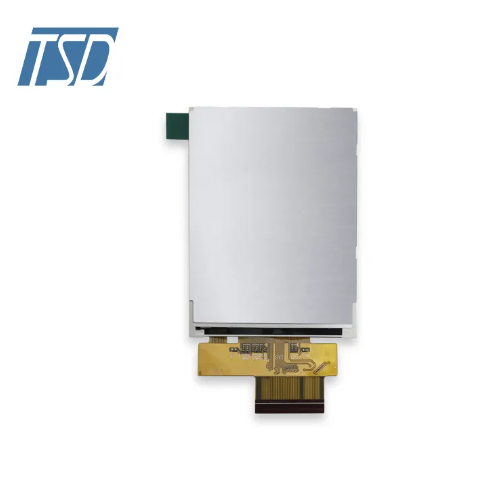

TSD 2.8 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution

Display mode: a-Si TFT,Transmissive,Normally white,TN

Resolution: 240*320

View Direction: All o’clock

Active area: 43.2 (W) x 57.6 (H)

LCM: 50.0W) x 69.2(H) x 2.43(D)

Backlight: LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.8”contains 240*320 dots and the Active area is 43.2 (W) x 57.6 (H)

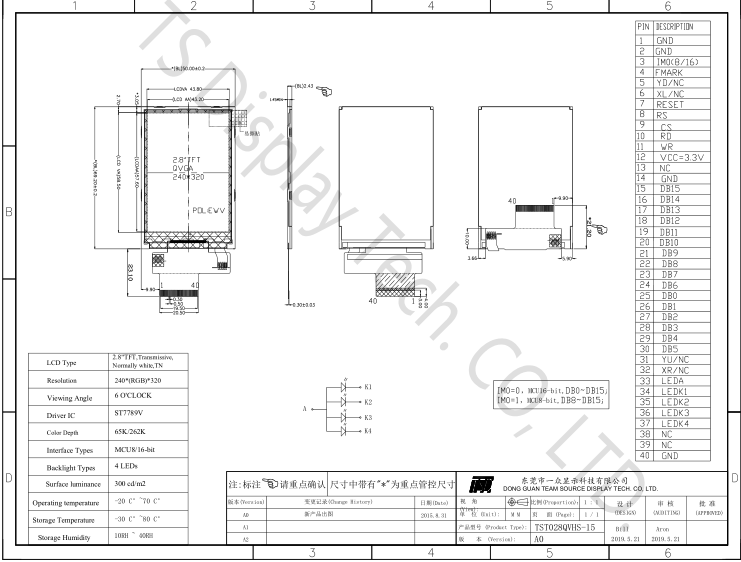

Drawing:

Specification



General Specification

Part No.

TST028QVHS-15

Display Size(Diagonal)

2.8 inch

LCD type

a-Si TFT,Transmissive,Normally white,TN

Resolution

240 x (RGB) × 320

View Direction

ALL o’clock

Module Outline

50.0W) x 69.2(H) x 2.43(D)

Active Area

43.2 (W) x 57.6 (H)

Viewing Area

6 o’clock

Color Depth

65K/262K

Driver IC

ST7789V

Interface

MCU High8/16-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

GND

System Ground. (0V)

3

IM0

IM0=0: MCU16-BIT, DB0~DB15

IM0=1: MCU8-BIT, DB8~DB15

4

FMARK

Tearing Effect output signal

NC

Not connect

6

NC

Not connect

7

RESET

Reset input signal

8

RS Data

Command Selection pin

9

CS

Chip select signal.

10

RD

read signal

11

WR

write signal

12

VCC

Power supply +2.8V~3.3V

13

NC

Not connect

14

GND

System Ground. (0V)

15~24

DB15~DB6

Data BUS

25~30

DB0~DB5

Data BUS

31

NC

Not connect

32

NC

Not connect

33

LEDA

Backlight A Aothod input pin.

34~37

LEDK1~LEDK4

Backlight K Cathode input pin.

38

NC

Not connect

39

NC

Not connect

40

GND

System Ground. (0V)



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
