Description:

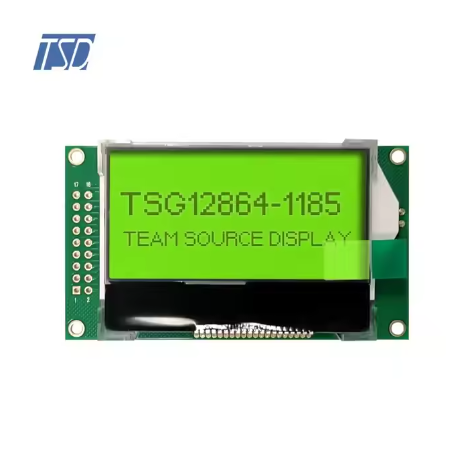

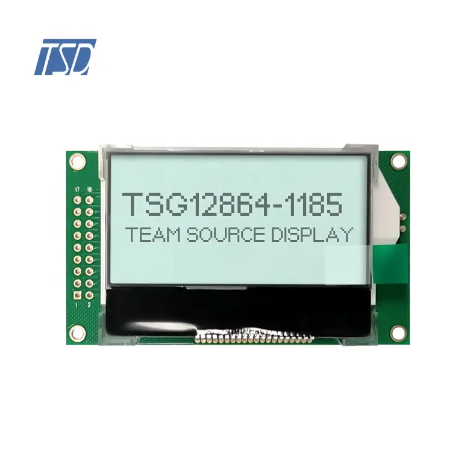

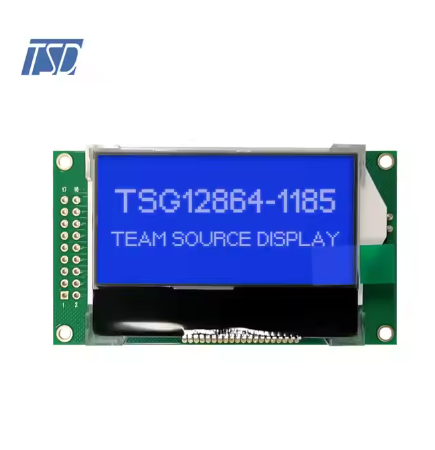

TSG12864-1185-FFDLWS-R-A1 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. The active display area is a 46.05(L) * 23.01(w) measurement on the diagonal, with a native resolution of 128*64 Dots. The characteristics of this product are shown in the following table below.

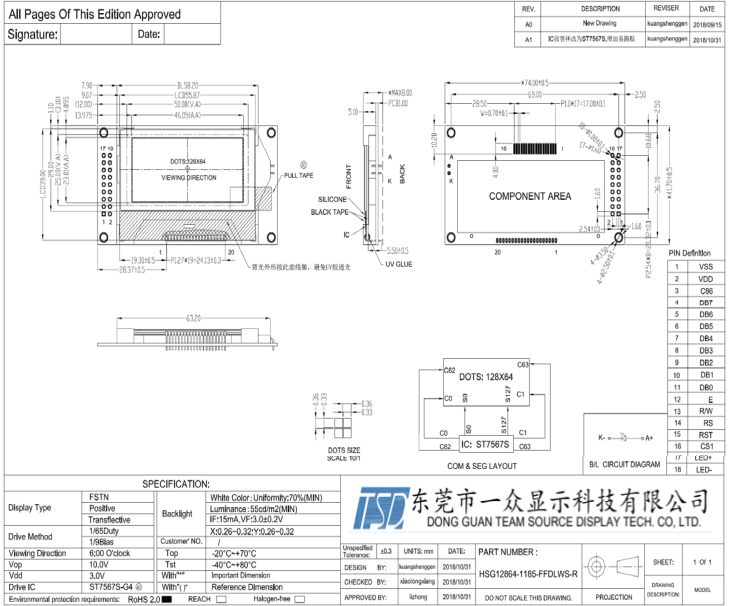

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSG12864-1185-FFDLWS-R-A1 |
|
|
Display Size(Diagonal) |
128*64 dots |
|
|
LCD type |
FSTN /Positive/ Transflective |
|
|
Module weight |
About 22.0g |
|
|
View Direction |
6 o’clock |
|
|
Dots Size |
0.33(L) *0.33(w) |
|
|
Active Area |
50.00(L) * 25.00(w |
|
|
ROHS2.0 |
YES |
|
|
Backlight |
4 LEDs,80mA(typ),3.2V(ref.) |
|
|
Module weight |
About 22.0g |
|
|
Interface |
6800/8080 |
|
|
LCD driver IC |
ST7567S-G4 |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VSS |
Power Ground |
|
2 |
VDD |
Main Power supply for the LCM |
|
3 |
C86 |
This is the MPU interface selection pin. C86 = “H”: 6800 Series MPU interface. C86 = “L”: 8080 Series MPU interface |
|
4 |
DB7 |
8-bit Bi-direction databus D[7:0] |
|
5 |
DB6 |
8-bit Bi-direction databus D[7:0] |
|
6 |
DB5 |
8-bit Bi-direction databus D[7:0] |
|
7 |
DB4 |
8-bit Bi-direction databus D[7:0] |
|
8 |
DB3 |
8-bit Bi-direction databus D[7:0] |
|
9 |
DB2 |
8-bit Bi-direction databus D[7:0] |
|
10 |
DB1 |
8-bit Bi-direction databus D[7:0] |
|
11 |
DB0 |
8-bit Bi-direction databus D[7:0] |
|
12 |
RD(E) |
Enable clock input for 6800 series MPU |
|
13 |
RW(R/W) |
Read/Write signal for 6800 series MPU. |
|
14 |
RS |
Command/Data selection control pin.H for display data and L for command data |
|
15 |
/RST |
Hardware reset pin. Low active |
|
16 |
/CS1 |
Chip selection control pin. Low active |
|
17 |
LED+ |
LED anode |
|
18 |
LED- |
LED cathode |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
