Description:

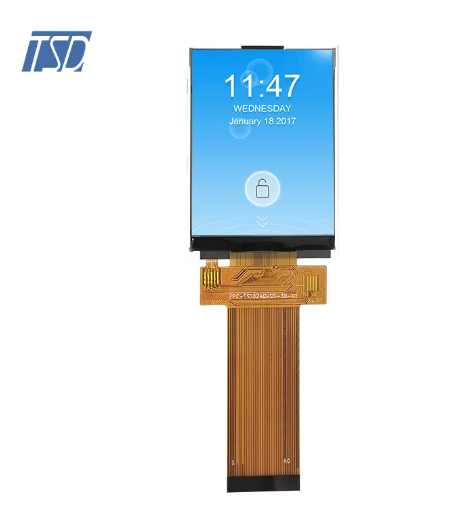

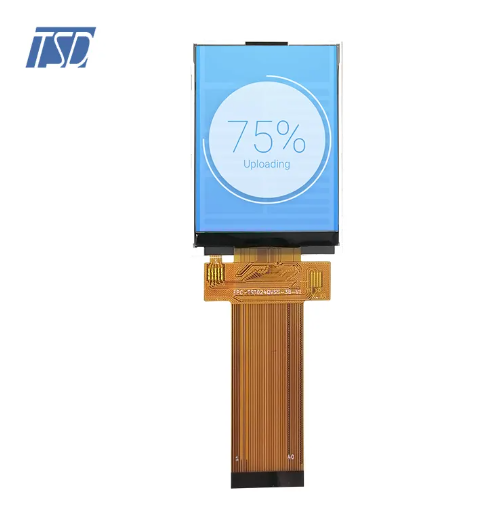

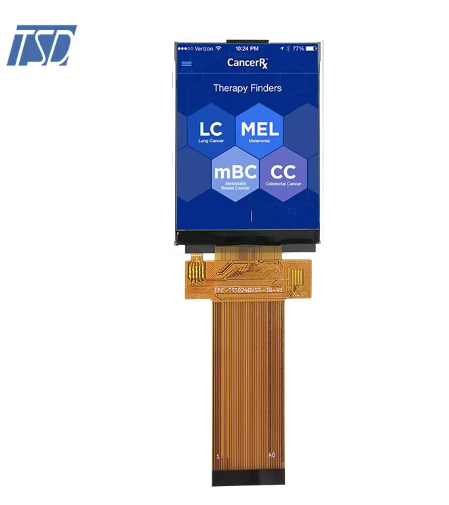

This display module is a Transmissive,Normally white, TN TFT liquid crystal display (LCD), This module is composed of a TFT LCD module, a driver circuit, and a back-light unit and without capacitive touch panel.The resolution of it is 240x (RGB) ×320 and the driver ic is ST7789S
Drawing:

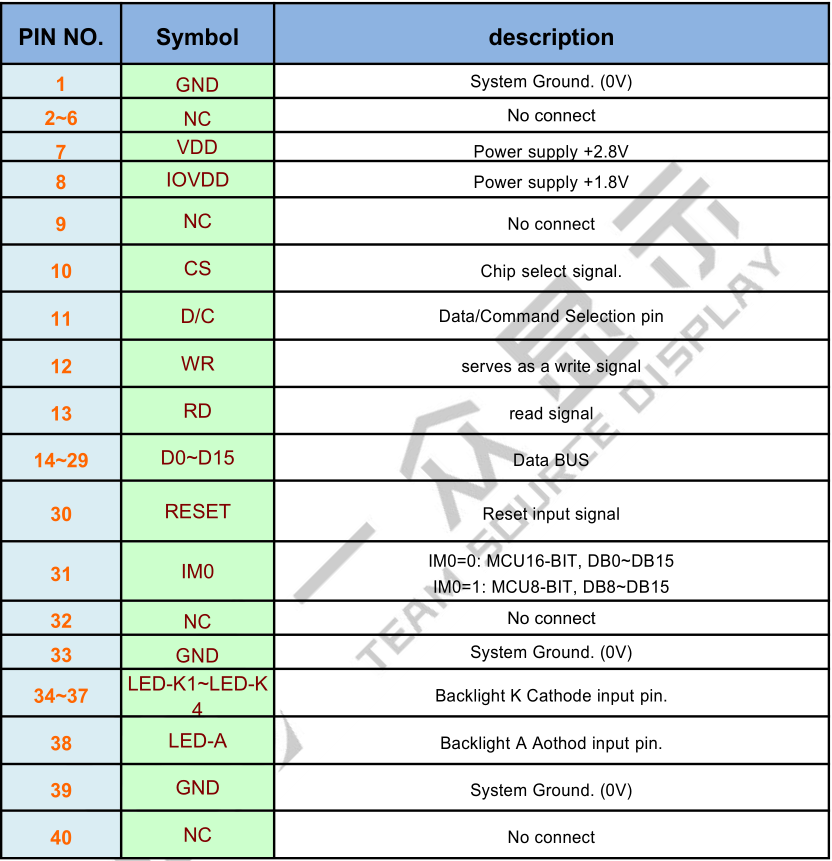

Specification
|
General Specification |
||
|
Part No. |
TST024QVSS-38 |
|
|
Display Size(Diagonal) |
2.4 inch |
|
|
LCD type |
Transmissive,Normally white,TN |
|
|
Resolution |
240 x (RGB) ×320 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
42.72W*60.26H*2.25D |
|
|
Active Area |
36.72W*48.96H |
|
|
Backlight |
4 LEDs |
|
|
Interface |
MCU interface |
|
|
Driver IC |
ST7789V |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
