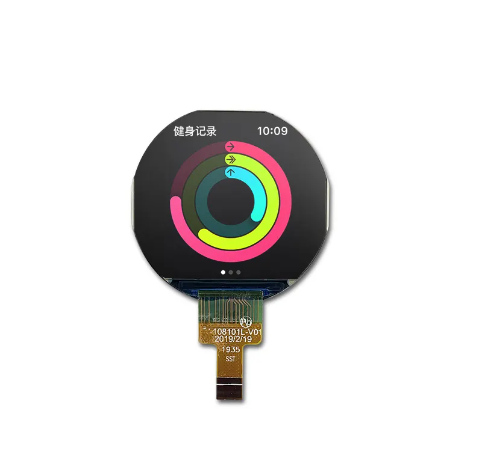

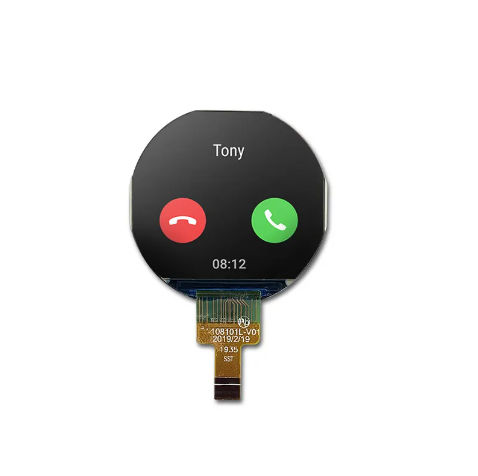

TSD 1.08 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution

General Specification

Part No.

TST108102

Display Size(Diagonal)

1.08 inch

LCD type

α-Si TFT

Resolution

240RGB x 210

View Direction

ALL o’clock

Module Outline

31.28(H) ×30.3(V)×1.45

Active Area

27.58 (H)×24.13(V)

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST7789V2

Interface

4-SPI

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～70

Storage Temperature

-30～80

Pins Description

Pin No.

Symbol

Description

1

LEDK2

LED Cathode

2

LEDK1

LED Cathode

3

LEDA

LED Anode

4

GND

System ground.

5

FMARK

Tearing effect signal is used to synchronize MCU to frame memory writing.

6

SDA

SPI interface input/output pin. The data is latched on the rising edge of the SCL

signal.

7

RS

Display data/command selection pin in 4-line serial interface.

8

SCLK

This pin is used to be serial interface clock.

9

CS

Chip selection pin; Low enable, High disable.

10

RESET

This signal will reset the device and it must be applied to properly initialize the

chip. Signal is active low.

11

IOVCC

Power Supply for I/O system. IOVCC=1.65V~3.3V

12

VCC

Power Supply for Analog, VCC=2.5V~3.3V.

13

GND

Power Ground
