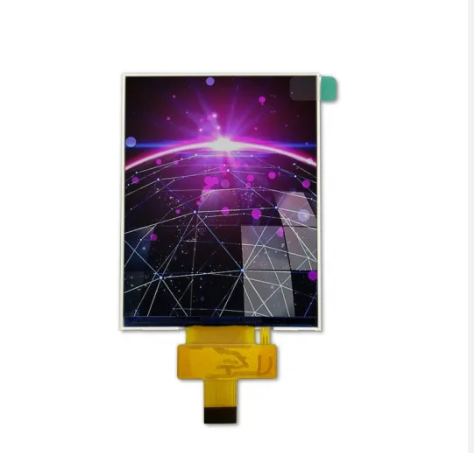

TSD 320×240 resolution 3.5 Inch mono TFT LCD panel

Part number: TST035QVGS-43

Resolution: 240*320

View Direction: All o’clock

Active area: 53.28 (w) x 71.04 (h) mm

LCM: 64.16 (w) x 83.39 (h) x 3.8 (t) mm

Backlight: 3* LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST035QVGS-43 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 3.5 inches diagonally measured and the native resolution is 240*320. feathers of this product are listed in the following table

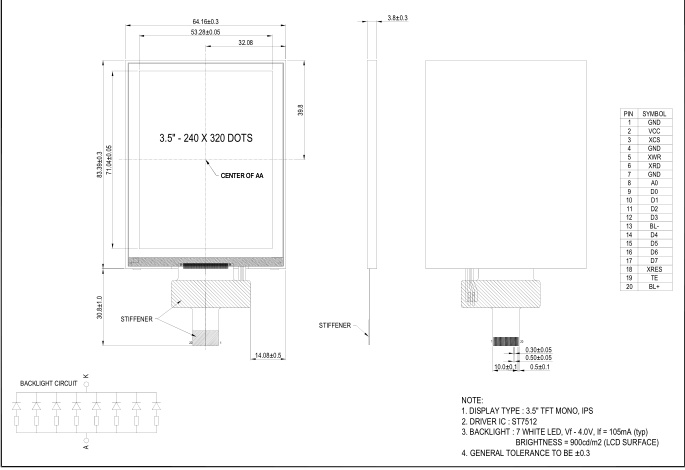

Drawing:



Specification



General Specification

Part No.

TST035QVGS-43

Display Size(Diagonal)

3.5 inch

LCD type

TFT,Transflective,Normally white

Resolution

240 x (RGB) × 320

View Direction

ALL o’clock

Module Outline

64.16 (w) x 83.39 (h) x 3.8 (t) mm

Active Area

 53.28 (w) x 71.04 (h) mm

Viewing Area

ALL o’clock

Back light

6 LEDs

Driver IC

ST7512

Interface

MPU 8-bit Parallel

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1

GND

Ground

2

VCC

Power Supply

3

XCS

Chip Select Pin

4

GND

System ground.

5

XWR

Write Pin

6

XRD

Read Pin

7

GND

Ground

8

A0

Data or Command identification Pin

9

D0

Data Bus

10

D1

Data Bus

11

D2

Data Bus

12

D3

GREEN Datas

13

BL

 Backlight Ground

14

D4

Data Bus

15

D5

Data Bus

16

D6

Data Bus

17

D7

Data Bus

18

XRES

Reset Pin and Low Active

19

TE

Vertical Synchronization signal output Pin

20

BL+

Backlight Supply



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
