Description:

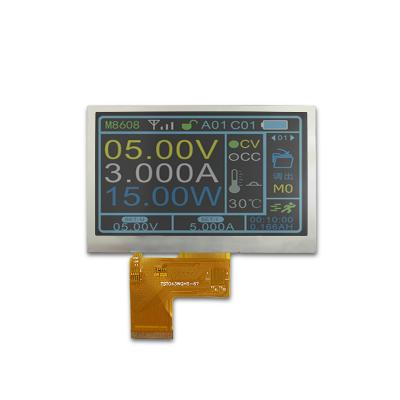

TST043WQHS-67P is 4.3 inch 480x272 resolution RGB 24 bit LCD display module, it is horizontal display with standard resistive touch panel. Backlight is 750-800 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24.8V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SC7283, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.
Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQHS-67P | |
| Outline Dimension(mm) | 105.50x67.20x4.25 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | with RTP | |
| Driver IC | SC7283 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB 24 bits |
|
| Module lifetime(Hours) | 20,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Cathode of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VDD | Power voltage |
| 5-12 | R0-R7 | Red data |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data |
| 29 | GND | System Ground.(0V) |
| 30 | DCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal |
| 33 | VSYNC | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37 | XR | The touch pin X right pin |
| 38 | YD | The touch pin Y down pin |
| 39 | XL | The touch pin X left pin |
| 40 | YU | The touch pin Y up pin |
Applications:
For our 4.3 inch 480x272 LCD display TST043WQHS-67P, normally used in smart home product, such as smart thermostat, coffee machine, washing machine, and many outdoor application, such as golf cart.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
