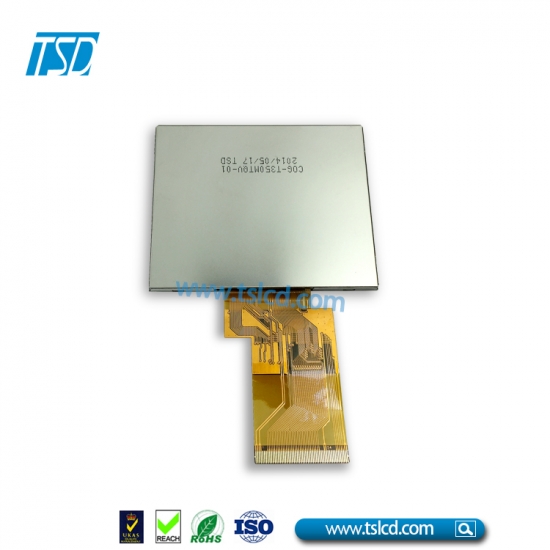

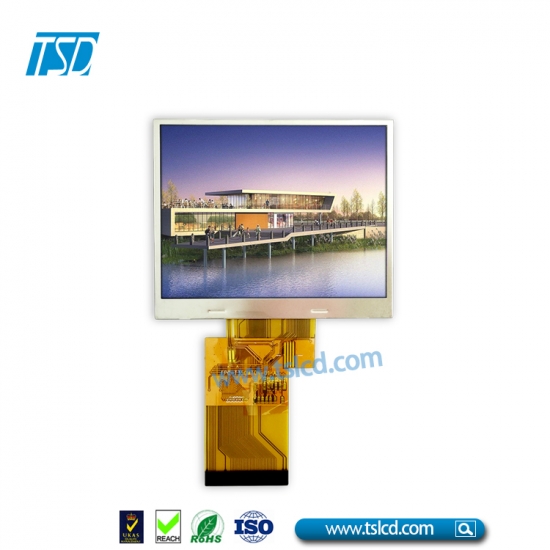

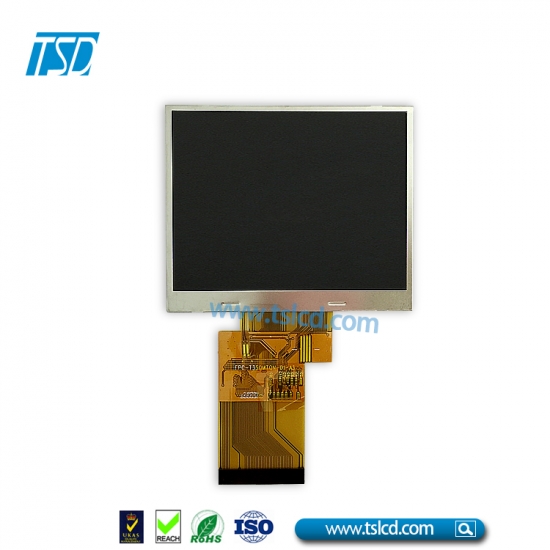

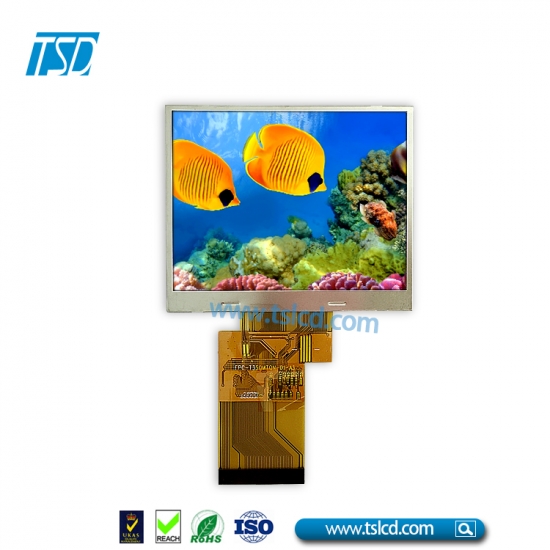

Wholesale 3.5 inch tft display
3.5 inch small tft-lcd monitor hdmi 320X240 tft
QVGA Color TFT LCD module display
| Specification | |
| LCD type | 3.5" tft lcd , Transmissive |
| Display type | 3.5" TFT 262k color, normal white |
| Item description | CTP for 3.5" QVGA tft lcd |
| Driver element | a-si TFT Active matrix |
| Outline Dimension(mm) | 76.9x63.9x3.15 |
| A.A.(mm) | 70.08x52.56 |
| Driver IC | NV3035GTC |
| Resolution(dots) | 320x240 resolution |
| Viewing Direction | 12H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Number of Pixel(pixels) | 240(H)x 3RGB x 320(V) |
| Pixel Pitch | 0.219x0.219 |
| Logic Volatge | 3.3v |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Interface | RGB 24 bits parallel interface |
| Backlight | 6 LEDs, White |
| Weight(g) | 29.3 |
| Interface | RGB |
| Module lifetime(Hours) | 50,000-100,000 |
