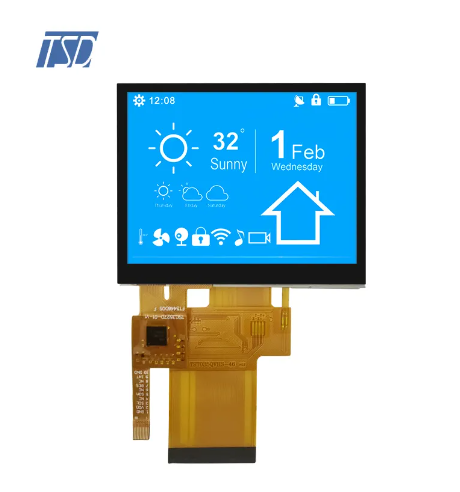

TSD 3.5 Inch TFT LCD with PCAP capacitive touch screen

Part number: TST035QVHS-86C

Resolution: 320*240

View Direction: All o’clock

Active area: 70.08(W) x 52.56 (H)

LCM: 76.9(W) x 63.9(H) x4.68(D)

Driver IC: ST7272A

Touch screen: with Capacitive touch

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST035QVHS-86C is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08(W) x 52.56 (H)  and the native resolution is 320 x (RGB) × 240, with capacitive touch screen,  feathers of this product are listed in the following table

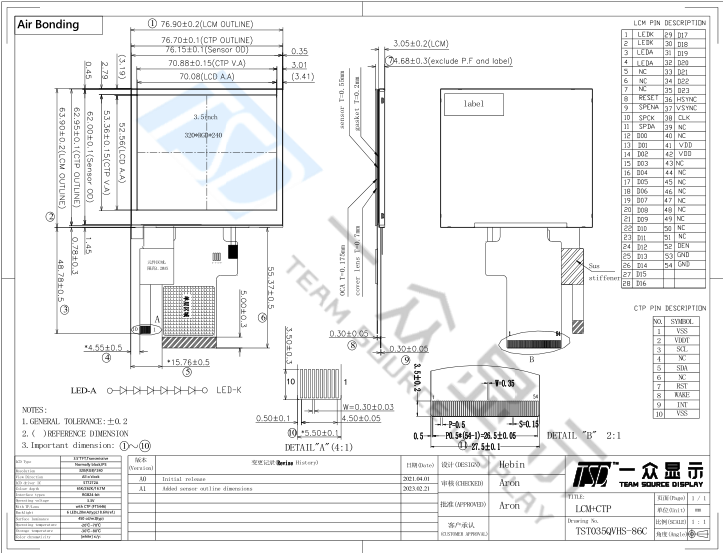

Drawing:

Specification



General Specification

Part No.

TST035QVHS-86

Display Size(Diagonal)

3.5 inch

LCD type

a-Si TFT,Transmissive,Normally black,IPS

Resolution

320 x (RGB) × 240

View Direction

ALL o’clock

Module Outline

76.9(W) x 63.9(H) x4.68(D)

Active Area

70.08(W) x 52.56 (H)

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST7272A

Interface

3SPI/RGB24-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1-2

LEDK

Cathode of LED backlight.

3-4

LEDA

Anode of LED backlight.

5-7

NC

Not Connection

8

RESET

System reset pin.

- An active low pulse at this pin will reset the IC, Connect to VCC in normal

operation

9

CS

Serial clock input

10

SCK

System Ground. (0V)

11

SDA

Data input/output pin in serial interface

12~19

B0-B7

Blue Data bus: B0~B7

20~27

G0-G7

Green Data bus: G0~G7

28~35

R0-R7

Red Data bus: R0~R7

36

HSYNC

Line Synchronization input

37

VSYNC

Frame/Ram Write Synchronization input

38

DCLK

Dot-clock signal and oscillator source.

39-40

NC

Not Connection

41-42

VDD

Power supply for digital voltage

43-47

NC

No connect

48

NC

No connect

49

NC

Not Connection

50

NC

Not Connection

51

NC

Not Connection

52

DE

Display enable pin from controller.

53-54

GND

Ground.



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
