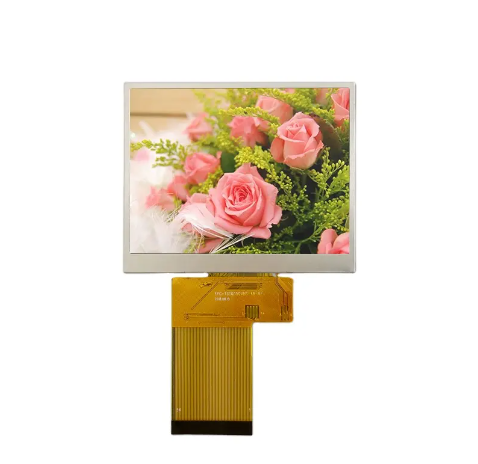

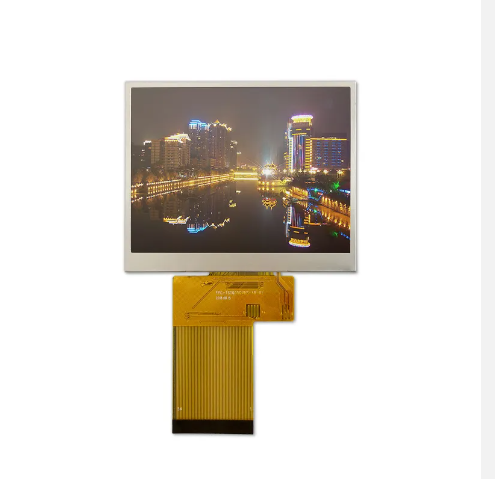

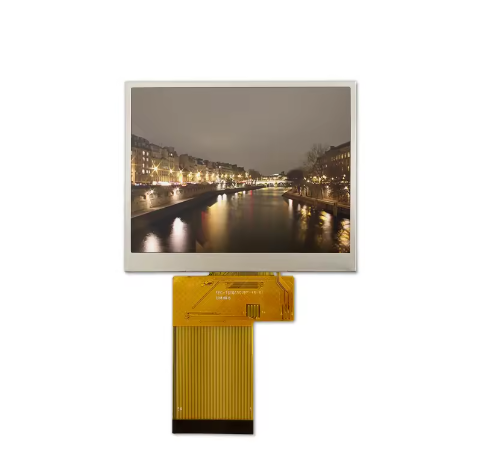

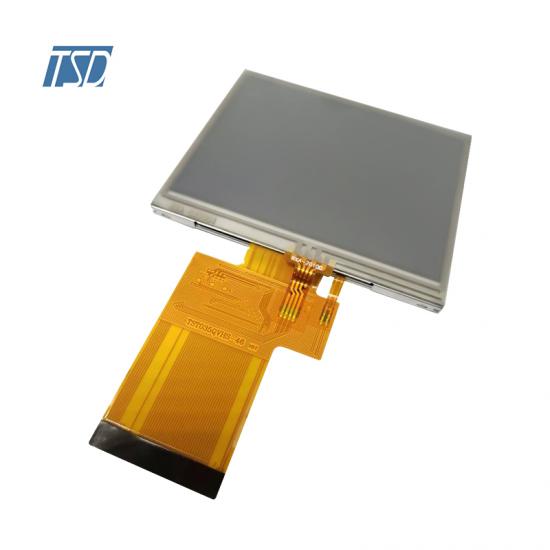

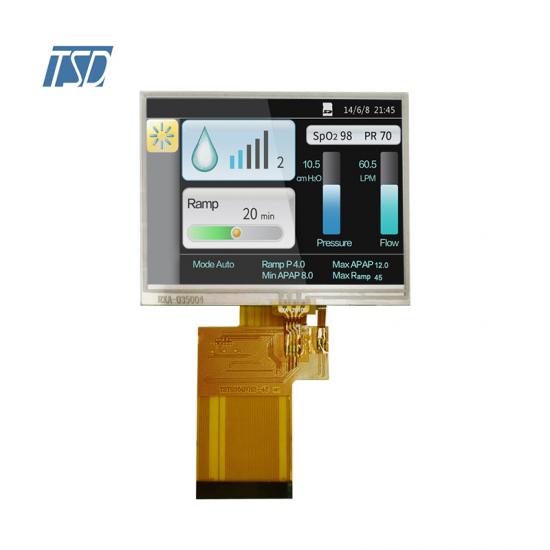

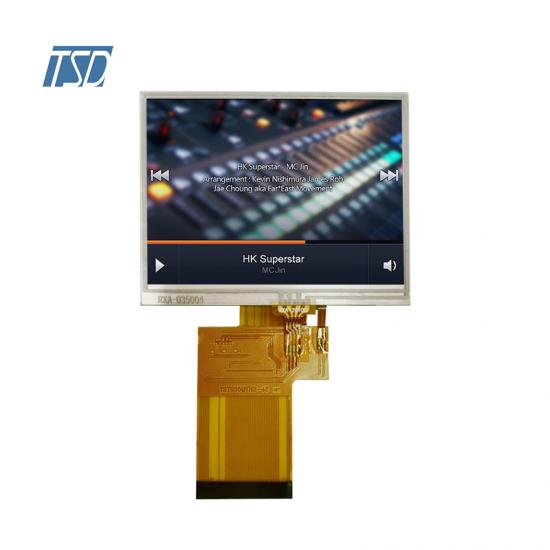

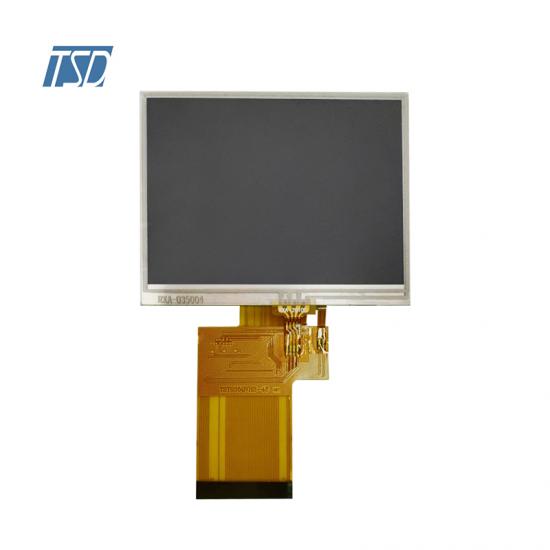

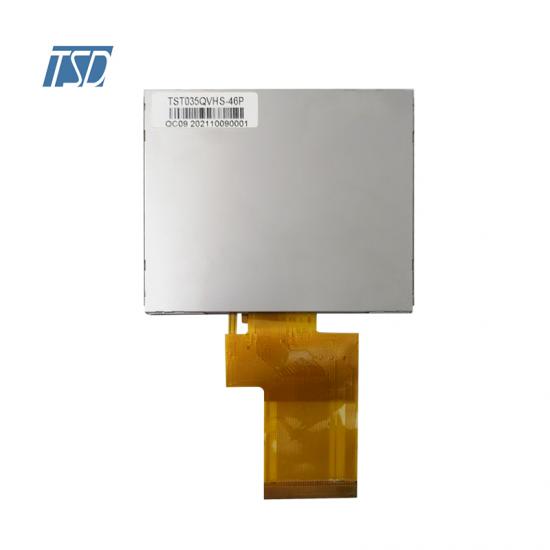

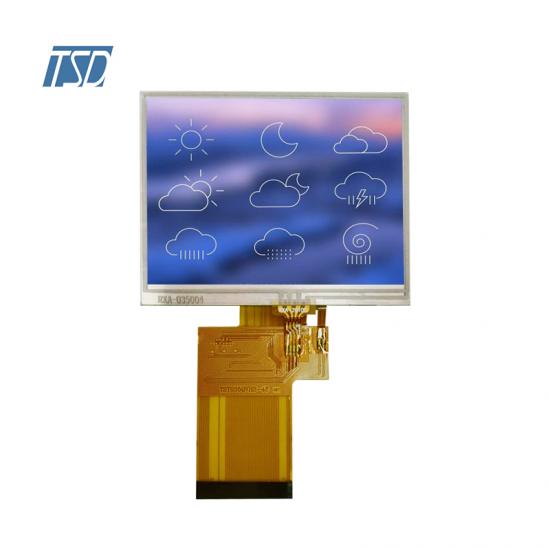

TSD QVGA 3.5 Inch TFT LCD display module with high brightness

Part number: TST035QVHS-46E

Resolution: 320*240

View Direction: All o’clock

Active area: 70.08*52.56

LCM: 76.9*63.9*3.05

Driver IC: ST7272A

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST035QVHS-46E is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56  and the native resolution is 320*240 feathers of this product are listed in the following table

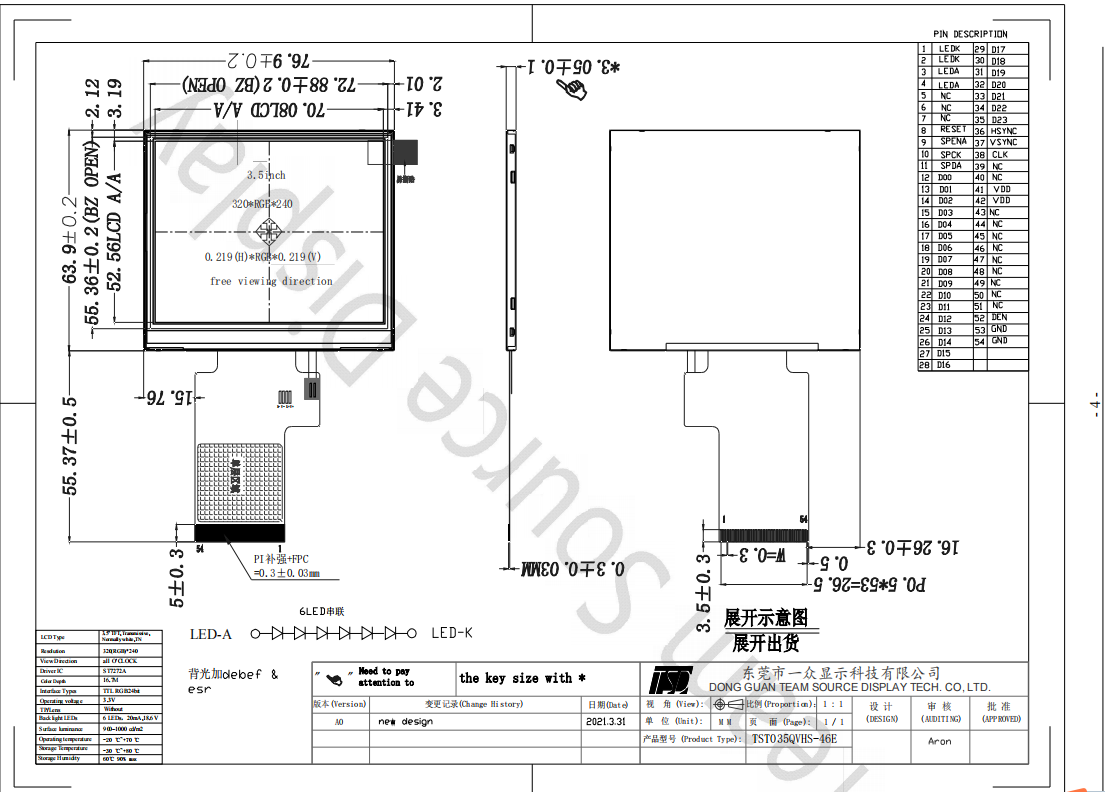

Drawing:

Specification



General Specification

Part No.

TST035QVHS-46E

Display Size(Diagonal)

3.5 inch

LCD type

TFT,Transflective,Normally black

Resolution

320 x (RGB) × 240

View Direction

ALL o’clock

Module Outline

76.9*63.9*3.05

Active Area

70.08*52.56

Viewing Area

ALL o’clock

Backlight

LED

Driver IC

ST7272A

Interface

RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





Pins Description

Pin No.

Symbol

Description

1

LEDK

Cathode of LED backlight

2

LEDK

Cathode of LED backlight

3

LEDA

Anode of the LED backlight

4

LEDA

Anode of the LED backlight

5

NC

No connection

6

NC

No connection

7

NC

No Connection

8

Reset

System reset Pin

9

CS

Chip select pin,if not use, please open it

10

SCK

Serial clock pin, if not use please open it

11

SDA

Data input/out put pin in serial interface. if not use, please open it

12-19

B0-B7

Blue data bus

20-27

G0-G7

Green data bus

28-35

R0-R7

Red Data bus

36

HSYNC

Line Synchronization input

37

VSYNC

Frame/Ram Write Synchronization input

38

DCLK

Dot-clock signal and osicillator source

39

NC

No connection

40

NC

No connection

41

VDD

Power supply for digital voltage

42

VDD

Power supply for digital voltage

43-50

NC

No connection

51

 DE

Display enable pin from controller

52

GND

Ground

53

GND

Ground



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
