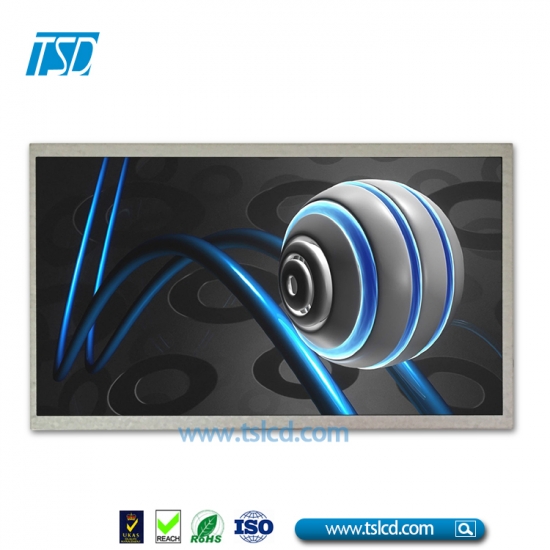

TSD 1024x600 resolution 10.1 inch lcd display screen monitor with RGB interface

  • Model Name: TST101WSBH-12
  • LCD Type: 10.1 inch TFT LCD display module
  • Resolution: 1024x600
  • Viewing angle: 12 o'clock
  • Brightness:  500cd/m2
  • Driver IC: HX8282+HX8696
  • Interface: RGB 24bit
  • Touch Screen: available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



Team Source Display model TST101WSBH-12 is a standard color TFT LCD, normally white with transmissive type TN panel, 1024x600 resolution, HX8282+HX8696 driver IC, RGB-24bits 50pin interface, 16.7M color depth, Anti-glare surface treatment.

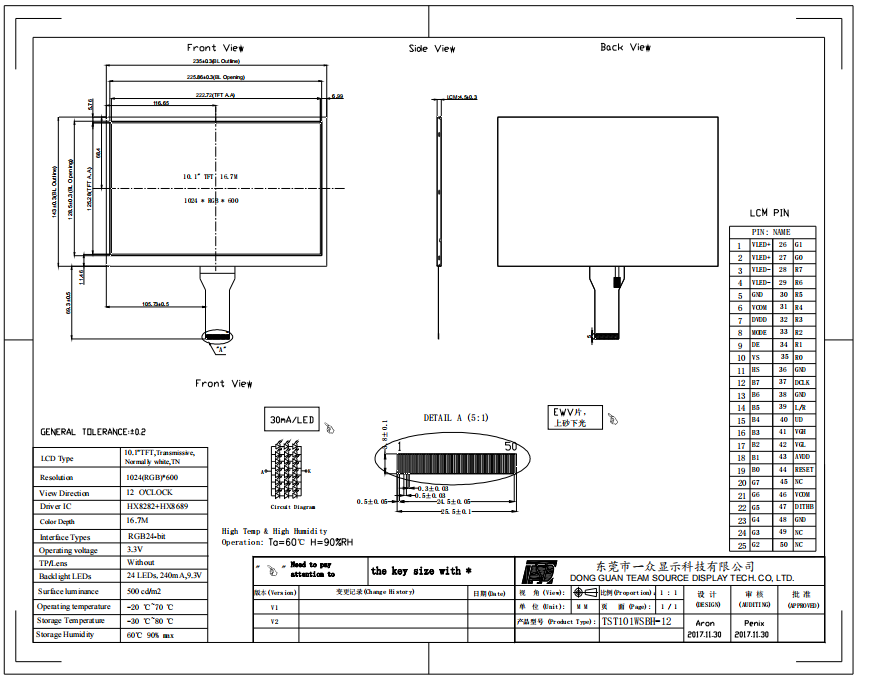

Drawing:




Specifications:



General Specification
LCD Type. 10.1"TFTTransmissive. Normally white,TN
Part No.  TST101WSBH-12
Outline Dimension(mm)

235(W)x143(H)x4.5(D)

Active Area(mm) 222.72(W) x 125.28(H)
Resolution(dots) 1024x (RGB) × 600
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Backlight 24LEDs, 240mA, 9.3V
Touch panel  available with CTP&RTP
Driver IC HX8282+HX8696
Pixel arrangement RGB-stripe
View direction  12H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24bits
Module lifetime(Hours) 30,000-50000





Pins Description
Pin No.  Symbol Description
1 LED+ LED Anode
2 LED+ LED Anode
3 LED- LED Cathode
4 LED- LED Cathode
5 GND Ground
6 VCOM Common Voltage
7 DVDD Digital Power
8 MODE DE/SYNC mode select Normally pull high, H:DE mode. L:HSD/VSD mode
9 DE Date Enable signal
10 VSD

Vertical sync input.Negative polarity

11 HSD Horizontal sync input.Negative polarity
12 B7 Blue Date Input(MSB)
13-18 B6-1

Blue Date Input

19 B0 Blue Date Input(LSB)
20 G7 Green Data Input(MSB)
21-26 G6-1 Green Data Input
27 G0 Green Data Input(LSB)
28 R7 Red Data Input(MSB)
29-34 R6-1 Red Data Input
35 R0 Red Data Input(LSB)
36 GND Power ground
37 DCLK
Clock input
38 GND Power ground
39 LR
Left or Right Display Control
40 UD
Up /Down Display Control
41 VGH
Positive Power for TFT
42 VGL
Negative Power for TFT
43 AVDD
Analog Power
44 RSTB

Global rest pin.Active low to enter reset state.

Suggest to connecting with an RC reset circuit for stability.

Normally pull high.(R=10K)



45 NC Not connection
46 VCOM
Common Voltage
47 DITH

Dithering setting.

DITH="H", 6bit resolution(last 2bit  of input data ) )truncated.DITH="H", 6bit resolution(default setting)

48 GND Power ground
49 NC Not connection
50 NC Not connection




Applications:



For this 10.1 inch TFT LCD display TST101WSBH-12 1024x600 resolution, widely used for smart home applications, washing machines and Express Cabinet.
