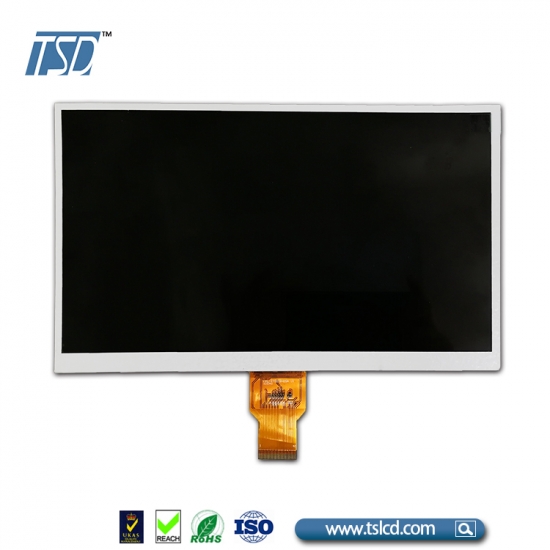

1024x600 resolution 10.1" tft lcd module 40pins 600 nits 10 inch lcd monitor LVDS interface
| Specification | |
| LCD type |
10.1" tft lcd module |
| Display type | 10.1 inch TFT, 16.7M color, normally white |
| Driver element | color active matrix thin film transistor |
|
Viewing angle |
12H |
| Outline Dimension(mm) | 229.46*149.1*2.7 |
| Active Area.(mm) | 216.96*135.6 |
| Resolution(dots) | 1024xRGBx600 |
|
Operating Voltage |
3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Luminance(cd/m2) | 500(typ.) |
| Contrast Ratio | 500(typ.) |
| Application | Notebook, advertisement display, etc. |
|
Number of pins |
50 |
| Interface |
LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
