TSD 4.3 inch LCD UART interface Resistive lcd panel 480x272 hmi 4.3 inch tft lcd display module



  • Model Name: ProLCD-T043R01
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: 12 o'clock
  • Brightness: 500 cd/m2
  • Driver IC: ST7282
  • Interface: UART
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃











Description:



ProLCD-T043R01 is 4.3 inch color LCD display with resistive touch panel, it's the smart modules with UART interface, resolution is WVGA 480x4272, LCD size is 4.3 inch, outline dimension of display is 105.46x67.11x4mm, Active Area is 96.4x55mm, Viewing Area is 99x57.6mm. Thinkness of LCM is 2.9±0.20mm, with RTP is 4±0.30mm. Viewing direction is 12 o'clock, TN display.



UART uses asynchronous serial communication; characters are used as transmission units, and bits are transmitted sequentially; the time interval between two characters in communication is not fixed, but the time interval between two adjacent bits in the same character The time interval is fixed. The data transmission rate is expressed by the baud rate, which is the number of binary bits transmitted per second;

Generally, there are options such as 9600, 19200, 115200, etc. when choosing a baud rate.

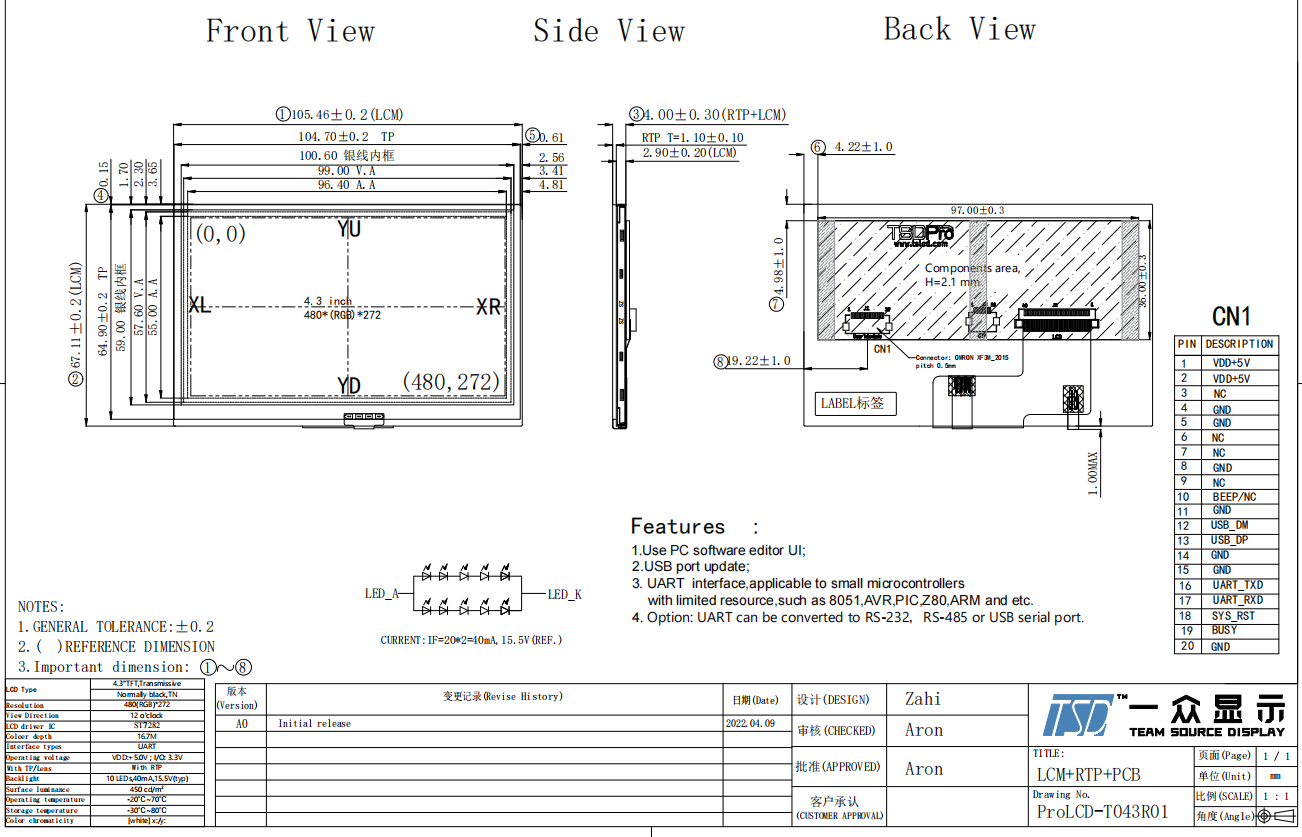

Drawing:


Specifications:



General Specification
Part No.  ProLCD-T043R01
Outline Dimension(mm)

105.46(W)x67.11(H)x4(D)

Active Area(mm) 96.4(W) x 55(H)
Resolution(dots)  480x (RGB) ×272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480RGB(H)xRGBx272(V)
Touch panel  RTP
Driver IC ST7282
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 4.3 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP/NC Buzzer output / No connect
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Features:



1. Use PC software editor UI

2. USB port update

3. UART interface, applicable to small microcontrollers with limited resource, such as 8051,A VR, PIC, Z80, ARM and etc.

4. Option: UART can be converted to RS-232, RS-485 or USB serial port.
