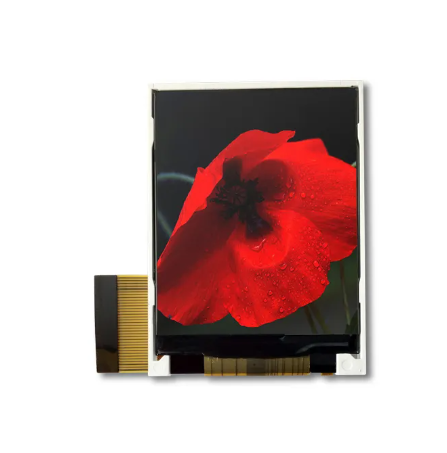

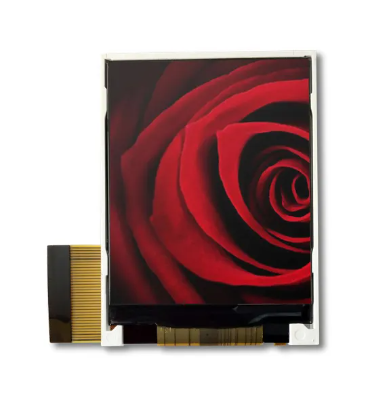

TSD Custom 2.0 Inch TN TFT LCD 176 RGB 220 dots

General Specification

Part No.

TST020CY-T01

Display Size(Diagonal)

2.0 inch

LCD type

2.0’’TFT

Resolution

176 RGB 220 dots

View Direction

All

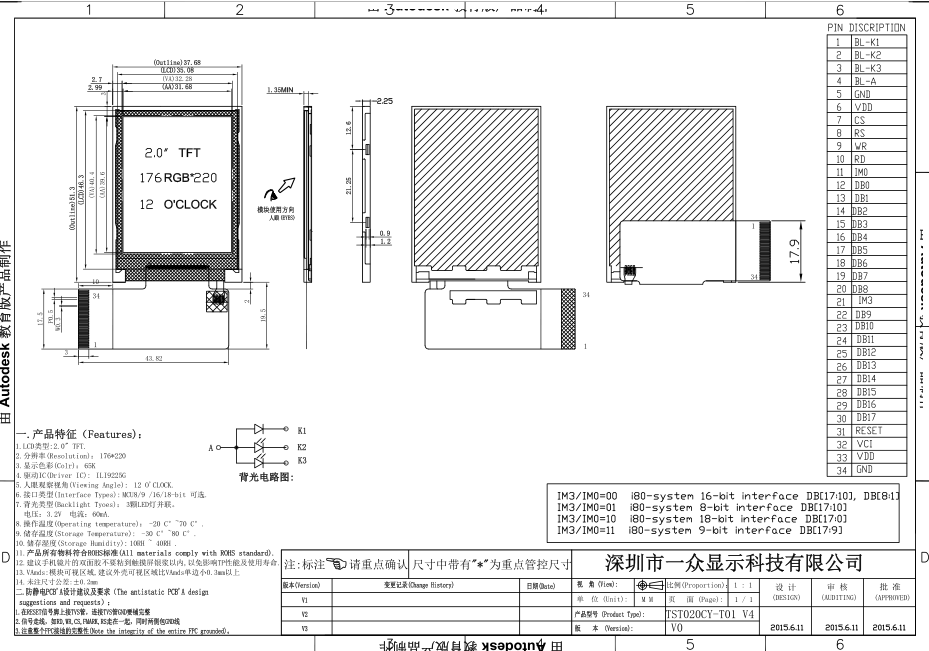

Module Outline

84.0(H) ×84.0(V)×2.6(T) (Note 1 )

Active Area

71.93x71.93

Viewing Area

ALL

Backlight

3 White LED

Interface

MCU

Driver IC

ILI9225

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～60

Storage Temperature

-30～70

Pins Description

Pin No.

Symbol

Description

1

BL_K1

BACK LIGHT K

2

BL_K2

BACK LIGHT K

3

BL_K3

BACK LIGHT K

4

BL_A

BACK LIGHT A,3.2V(TYP)

5

GND

GROUND

6

VDD

A supply voltage to the digital circuit. Connect to an external

power supply of 1.65 ~ 3.6V

7

/CS

A chip select signal. Low: the chip is selected and accessible

8

/RS

Display data / Command selection pin. RS=’1’: Display data.

RS=’0’: Command data.

9

WR

Write enable in parallel interface.

10

RD

Read enable.

11

IM0

NOTE 1*

12

DB0

DATA BUS

13

DB1

DATA BUS

14

DB2

DATA BUS

15

DB3

DATA BUS

16

DB4

DATA BUS

17

DB5

DATA BUS

18

DB6

DATA BUS

19

DB7

DATA BUS

20

DB8

DATA BUS

21

IM3

NOTE 1*

22

DB9

DATA BUS

23

DB10

DATA BUS

24

DB11

DATA BUS

25

DB12

DATA BUS

26

DB13

DATA BUS

27

DB14

DATA BUS

28

DB15

DATA BUS

29

DB16

DATA BUS

30

DB17

DATA BUS

31

RESET

A reset pin.

Initializes the ILI9225G with a low input. Be sure to execute a

Power-on reset after supplying power.

32

VCI

A supply voltage to the analog circuit. Connect to an external

Power supply of 2.5 ~ 3.6V. 2.8V(TYP)

33

VDD

A supply voltage to the digital circuit. Connect to an external

power supply of 1.65 ~ 3.6V

34

GND

GROUND
