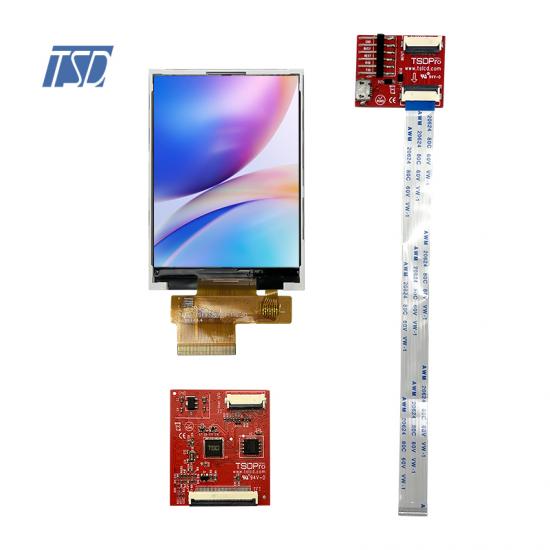

TSD 3.5 inch HVGA 320x480 resolution LCD display with Resistive touch panel

  • Model Name: ProLCD-T035P01
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x480
  • Viewing angle: 6 o'clock
  • Brightness: 280 cd/m2
  • Driver IC: ILI9488
  • Interface: UART
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



ProLCD-T035P01 is 3.5 inch 320x480 resolution TFT LCD display with Resistive touch panel, it's coming out with UART serial port. Display IC is ILITEK ILI9488, it's the standard portrait mode display. Viewing angle is 6 o'clock, color depth is 65K, VDD of display is 5V. Operating temperature is -20 to +70°C, storage temperature is -30 to 80°C, it's the standard industrial display, which is widely using for smart home, white goods, industrial equipment, medical devices and many other applications.



The serial port mentioned in embedded also refers to UART, which can be said to be widely used in the embedded field. It directly communicates between the host and auxiliary equipment, such as communication between car audio and external AP, and communication with PC, including monitoring and debugging. device communicates with other devices such as EEPROM.

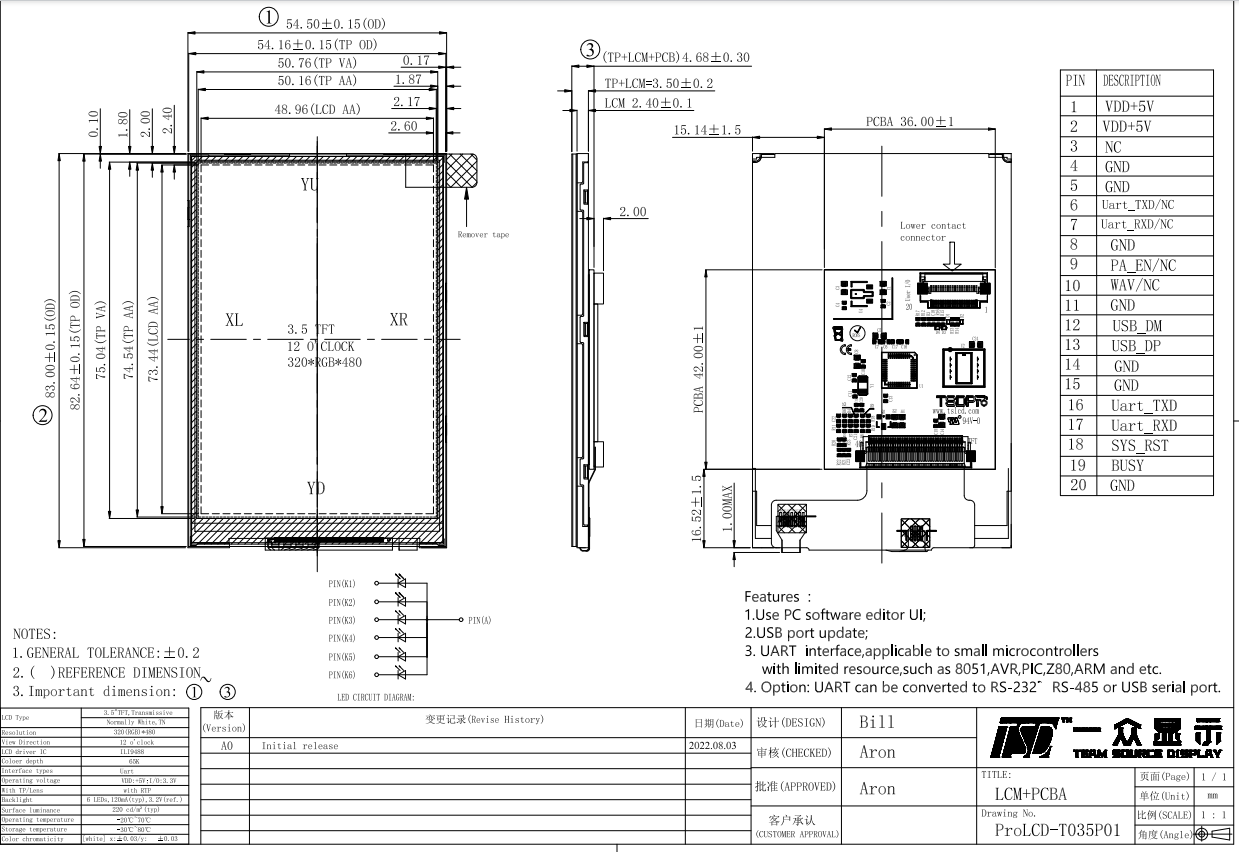

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T035P01
Outline Dimension(mm)

54.5(W)x83(H)x4.68(D)

Active Area(mm) 48.96W) x 73.44(H)
Resolution(dots) 320x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320RGB(H)xRGBx480V)
Touch panel  RTP
Driver IC ILI9488
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 3.5 inch TFT
Surface treatment Antiglare
View direction  6 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 UART_TXD/NC Serial Communication Sends Data Output Pin. Do not Connect if you don't use it.
7 UART_RXD/NC Serial Communication Receives Data Input Pin. Do not connect if you don't use it.
8 GND Power ground
9 PA_EN/NC Power Amplification Enable Pin. Do not connect if you don't use it.
10 WAV/NC Audio Output Pin. Don not connect if you don't use it.
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
