Description:

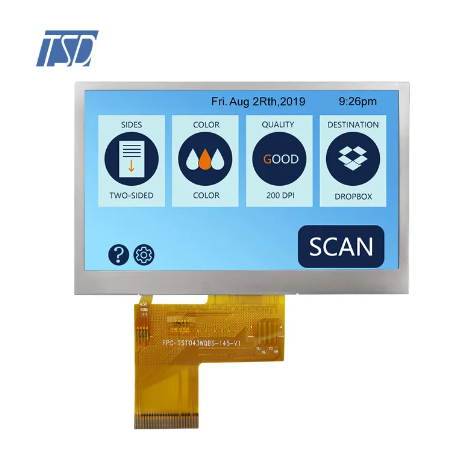

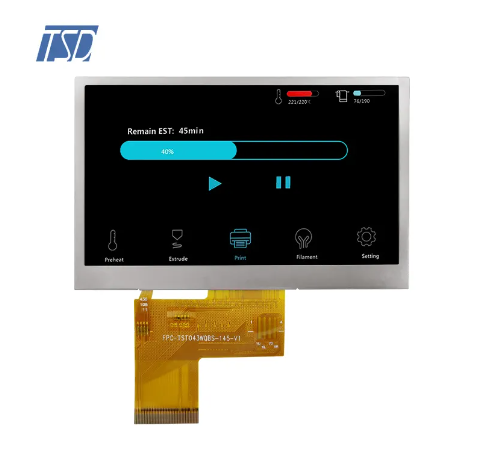

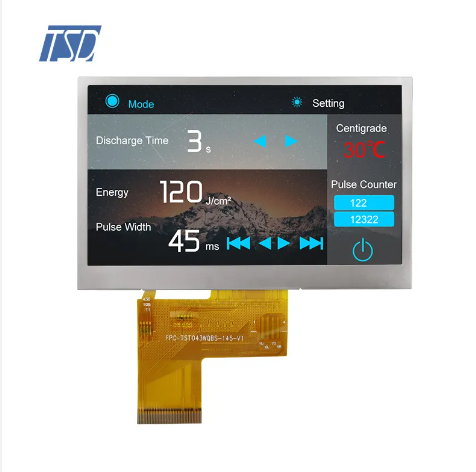

TST043WQBS-145 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 4.3 inches diagonally measured and the native resolution is 480*272. feathers of this product are listed in the following table

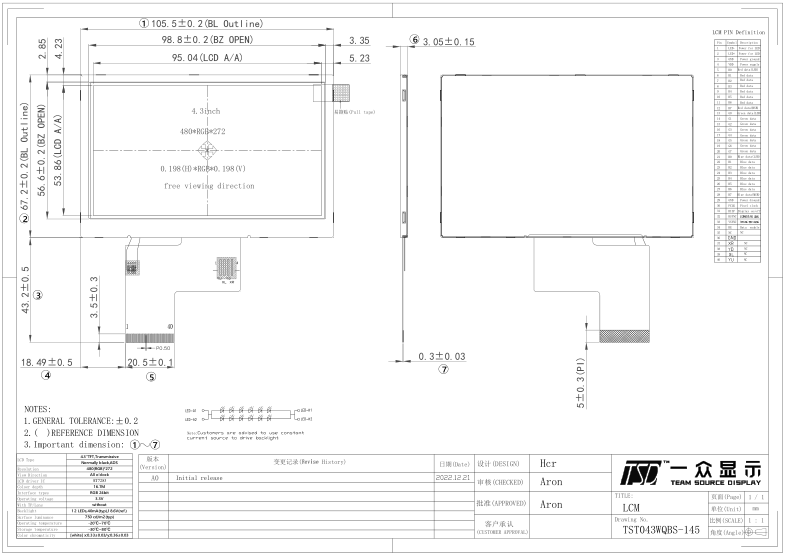

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST043WQBS-145 |
|
|
Display Size(Diagonal) |
4.3 inch |
|
|
LCD type |
TFT/Transmissive |
|
|
Resolution |
480x (RGB) ×272 |
|
|
View Direction |
ALL o’clock |
|
|
Module Outline |
105.5*67.2*3.05 |
|
|
Active Area |
95.04*53.86 |
|
|
Viewing Area |
ALL o’clock |
|
|
Back light |
White LEDs*12 |
|
|
Driver IC |
ST7283 |
|
|
Interface |
24-Bit RGB |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
