Description:

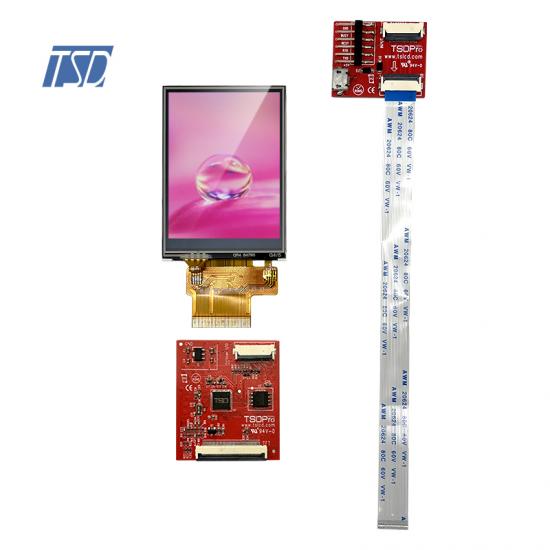

ProLCD-T024N01 is 2.4 inch 240x320 resolution LCD display with UART serial port screen, it's TN display with 6 o'clock viewing angle. Display size is 42.72x60.26
x3.43mm. Active Area for display is 36.72x48.96mm. Display driver chip is Sitronix ST7789V. LCD type is normally white, transmissive display. 65K color depth, backlight design with 6pcs LED, 80mA, 3.2V voltage.
Serial Uart interface panel (UART) is added MCU and TFT controller on the TFT lcd display module, the MCU is responsible for receiving from the remote mainboard interface port (UART) command, basing on the defined commands to show images or animations, remote motherboard MCU don't need to write complex applications for showing images, which is much more easy to support customer at the begining of development. TFT LCD Panel and remote MCU mainly communicate through RS232 or RS485 interface. If the distance between the remote MCU and TFT Panel is very close ( for example around 30cm), the UART output and input of the remote MCU can be directly connected to the TFT lcd panel.

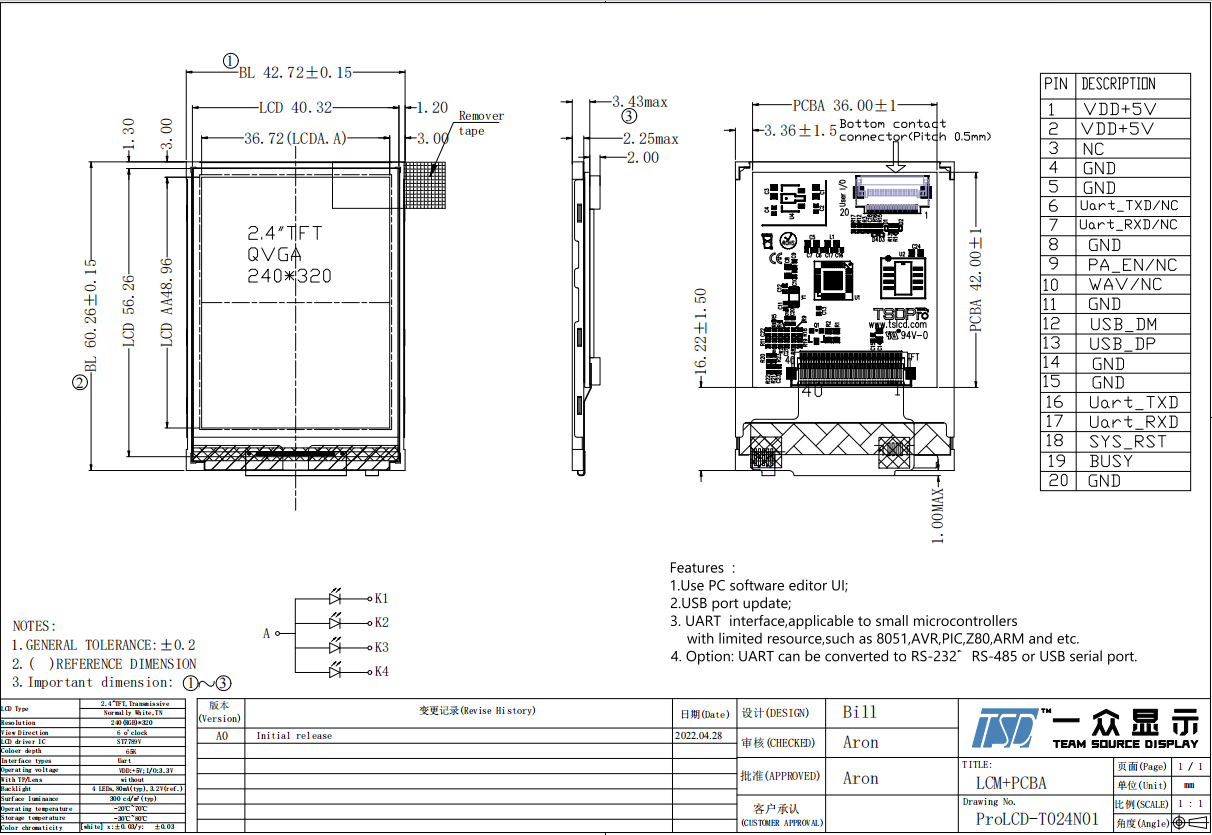

Drawing:
Specifications:
| General Specification | ||
| Part No. | ProLCD-T024N01 | |
| Outline Dimension(mm) |
42.72(W)x60.26(H)x3.58(D) |
|
| Active Area(mm) | 36.72(W) x 48.96(H) | |
| Resolution(dots) | 240x (RGB) × 320 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 240RGB(H)xRGBx320V) | |
| Touch panel | without | |
| Driver IC | ST7789V | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 2.4 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 6 o'clock |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART |
|
| Module lifetime(Hours) | 30,000-50,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VDD | Power voltage 5V |
| 2 | VDD | Power voltage 5V |
| 3 | NC | No connect |
| 4 | GND | Power ground |
| 5 | GND | Power ground |
| 6 | UART_TXD/NC | Serial Communication Sends Data Output Pin. Do not Connect if you don't use it. |
| 7 | UART_RXD/NC | Serial Communication Receives Data Input Pin. Do not connect if you don't use it. |
| 8 | GND | Power ground |
| 9 | PA_EN/NC | Power Amplification Enable Pin. Do not connect if you don't use it. |
| 10 | WAV/NC | Audio Output Pin. Don not connect if you don't use it. |
| 11 | GND | Power Ground |
| 12 | USB_DM | This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data. |
| 13 | USB_DP | This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data. |
| 14 | GND | Power Ground |
| 15 | GND | Power Ground |
| 16 | UART_TXD | This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU |
| 17 | UART_RXD | This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal |
| 18 | SYS_RST | Global reset pin |
| 19 | BUSY | This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy |
| 20 | GND | Power Ground |
