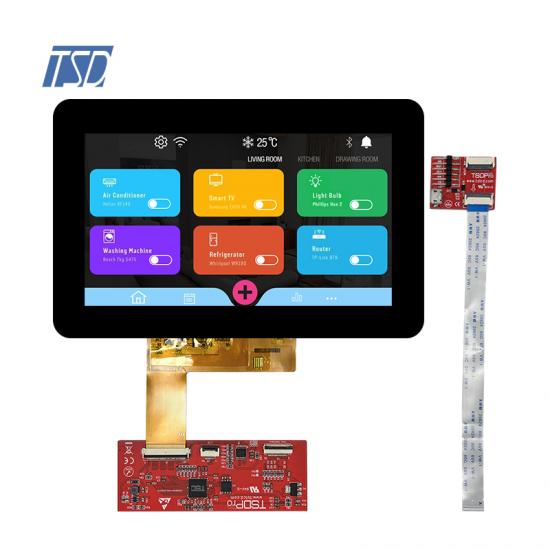

TSD 7 inch LCD display with UART interface and PCAP-touch screen

  • Model Name: ProLCD-T070C01
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 680 cd/m2
  • Driver IC: EK9716BD&EK73002ACGB
  • Interface: UART
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



ProLCD-T070C01 is 7 inch 800x480 resolution LCD display with UART interface, standard brightness is 800 cd/m2, which is suitable for indoor and outdoor application. For this 7 inch TFT LCD module, driver IC is EK9716BD&EK73002ACGB, viewing direction is 12 o'clock, color depth is 16.7M, operating voltage is 3.3V,  this lcd module is with standard Capacitive touch panel, customized design are also welcome.



Serial Uart interface panel (UART) is added MCU and TFT controller on the TFT lcd display module, the MCU is responsible for receiving from the remote mainboard interface port (UART) command, basing on the defined commands to show images or animations, remote motherboard MCU don't need to write complex applications for showing images, which is much more easy to support customer at the begining of development. TFT LCD Panel and remote MCU mainly communicate through RS232 or RS485 interface. If the distance between the remote MCU and TFT Panel is very close ( for example around 30cm), the UART output and input of the remote MCU can be directly connected to the TFT lcd panel.

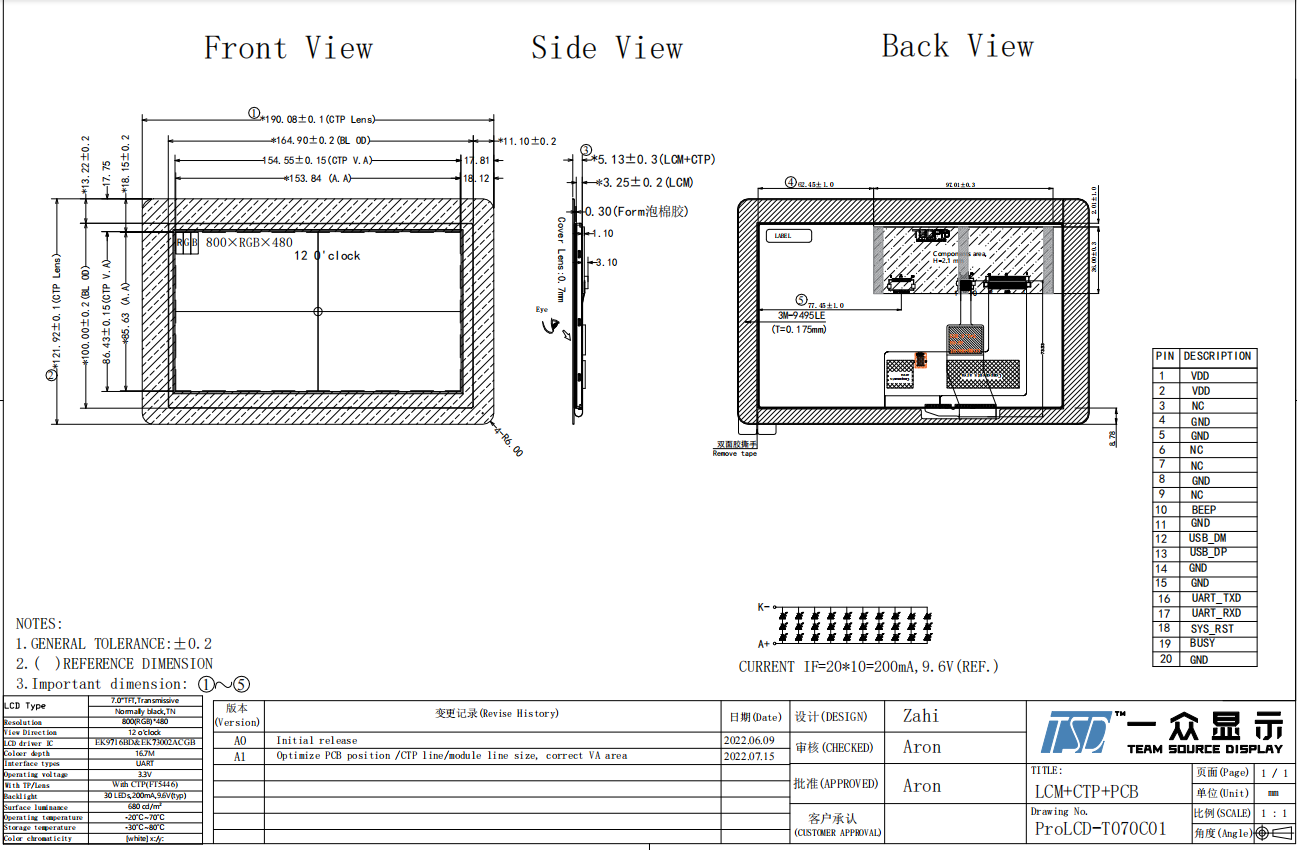

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T070C01
Outline Dimension(mm)

190.08(W)x121.92(H)x5.13(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots)  800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  CTP
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP Buzzer output
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



For our 7 inch LCD display ProLCD-T070C01, it's widely using in smart home product, such as thermostat, Temperature and humidity control panel. Customer only needs a low-end microprocessor (commonly known as single-chip microcomputer) and cooperates with the host computer software to easily design its own UI.




Product Features:



1. Standard UART communication interface, baud rate 115200 bps;

2. USB2.0 interface update UI, fast and convenient;

3. PC-side host computer software, graphically designed UI, efficient and fast;

4. Support about 70 serial port commands, such as displaying pictures, progress bar, touch bar control, button control, text display, virtual touch, drawing graphics and other functions.

5. TSD have full ranges of UART display from 2.4 inch to 7 inch, customized design are warmly welcome.
