Description:

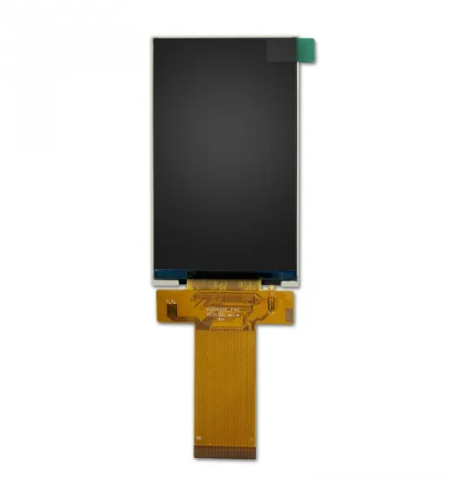

TST043W V VBI-57is a Trans missive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, a drive IC, a FPC and a LED-backlight unit. The active display area is 4.3 inches diagonally measured and the native resolution is 480*RGB*800.Features of this product are listed in the following table

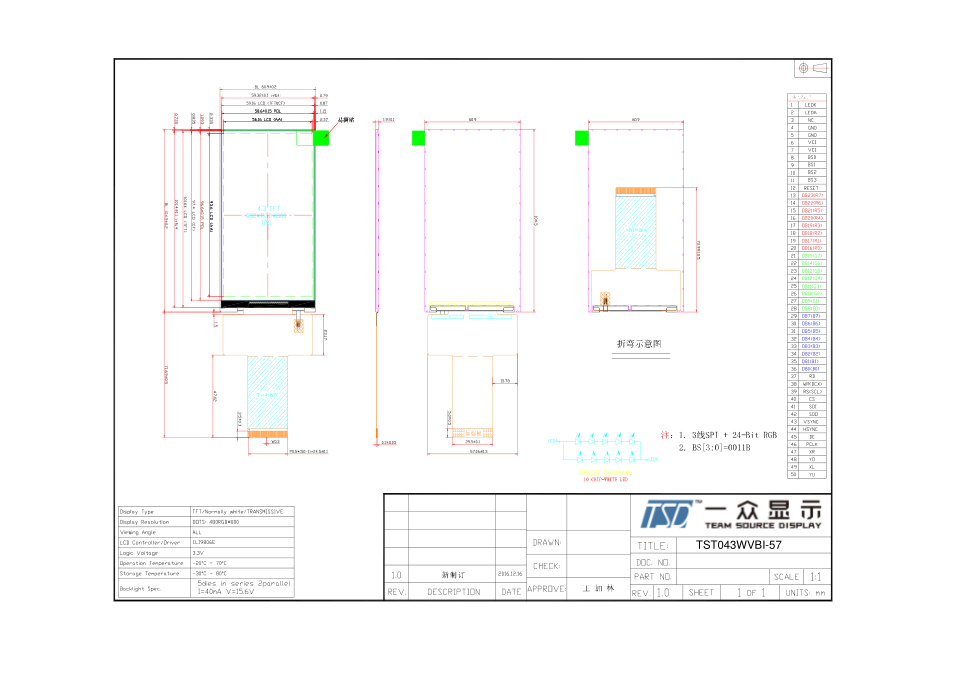

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST043WVBI-57 |
|
|
Display Size(Diagonal) |
4.3 inch |
|
|
LCD type |
TFT/Transmissive |
|
|
Resolution |
800x (RGB) × 480 |
|
|
View Direction |
ALL o’clock |
|
|
Module Outline |
104.5(H)*60.9(W)*1.9 (T)(Exclude FPC) |
|
|
Active Area |
93.6(H)*56.16(W) |
|
|
Viewing Area |
ALL o’clock |
|
|
Back light |
White 5LEDs*2 |
|
|
Driver IC |
ILI9806E |
|
|
Interface |
24-Bit Parallel RGB |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
LEDK |
LED Power supply - |
|
2 |
LEDA |
LED Power supply + |
|
3 |
NC |
No Connection. |
|
4-5 |
GND |
System ground. |
|
6-7 |
VCI |
Power supply, 2.6~3.3V |
|
8 |
BS0 |
BS[3:0]=0011b , 3-line 9-bit + 24-bit RGB |
|
9 |
BS1 |
BS[3:0]=0011b , 3-line 9-bit + 24-bit RGB |
|
10 |
BS2 |
BS[3:0]=0011b , 3-line 9-bit + 24-bit RGB |
|
11 |
BS3 |
BS[3:0]=0011b , 3-line 9-bit + 24-bit RGB |
|
12 |
RESET |
The external reset input. |
|
13~20 |
R7~R0 |
RED Datas |
|
21~28 |
G7~G0 |
GREEN Datas |
|
29~36 |
B7~B0 |
BLUE Datas |
|
37 |
RD |
Fix to GND. |
|
38 |
WR |
Fix to GND. |
|
39 |
SCL |
Serial clock input |
|
40 |
CS |
Chip select signal. |
|
41 |
SDI |
Serial data input/output pin. |
|
42 |
SDO |
Open. |
|
43 |
VS |
Vertical synchronizing signal. |
|
44 |
HS |
Horizontal synchronizing signal. |
|
45 |
DE |
Data ENABLE signal |
|
46 |
CLK |
Dot clock signal |
|
47 |
TP_R |
Right electrode – differential analog （N.C ） |
|
48 |
TP_D |
Down electrode – differential analog （N.C ） |
|
49 |
TP_L |
Left electrode – differential analog （N.C ） |
|
50 |
TP_U |
Up electrode – differential analog （N.C ） |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
