Description:

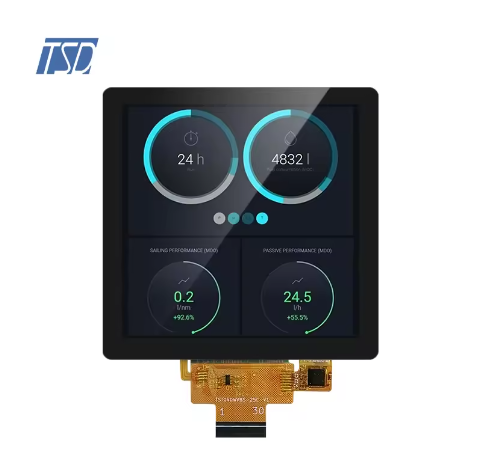

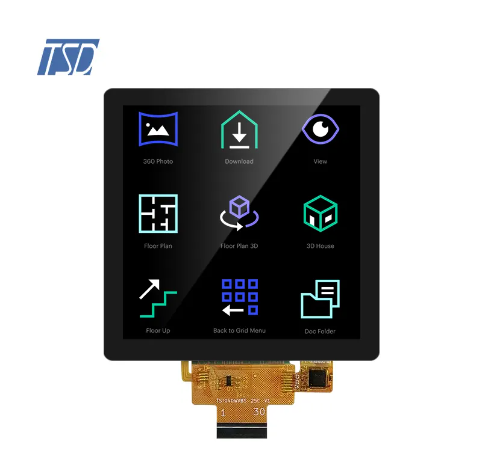

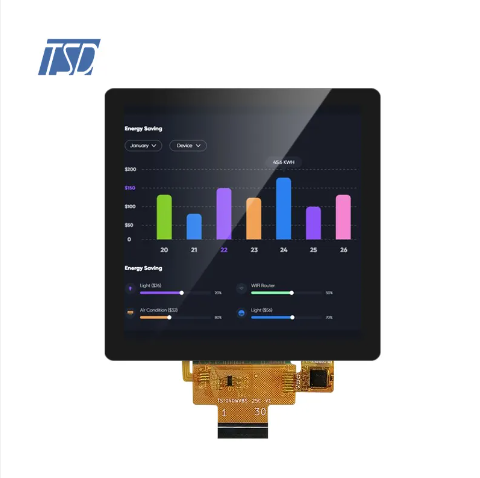

TST040WVBS-34C is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 71.93 (W) x 71.93 (H) and the native resolution is 720*720. feathers of this product are listed in the following table

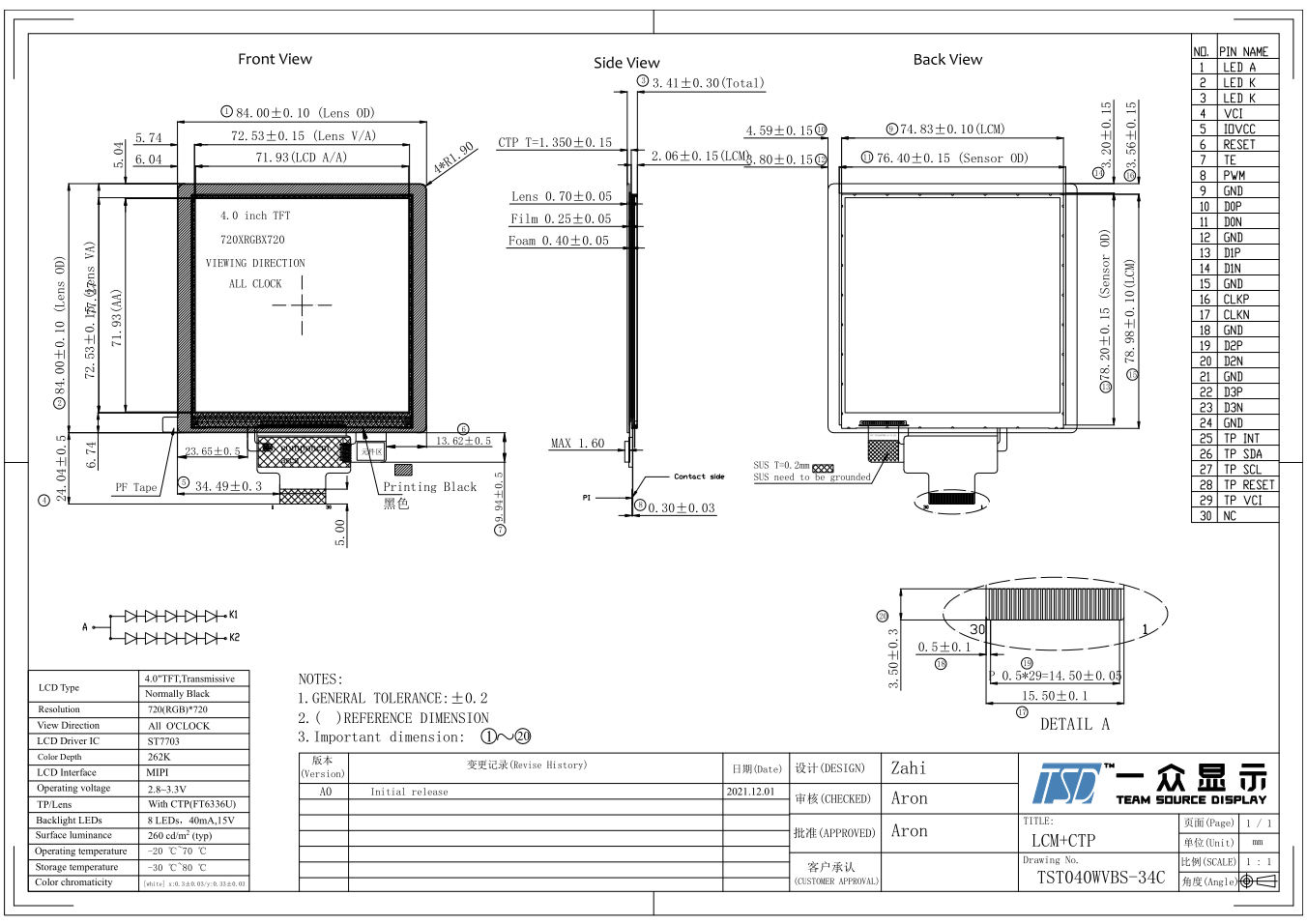

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST040WVBS-34C |
|
|
Display Size(Diagonal) |
4.0 inch |
|
|
LCD type |
TFT,Transflective,Normally white |
|
|
Resolution |
720 x (RGB) × 720 |
|
|
View Direction |
ALL o’clock |
|
|
Module Outline |
74.83(W) x 78.98(H) x 2.06(D) |
|
|
Active Area |
71.93 (W) x 71.93 (H) |
|
|
Viewing Area |
ALL o’clock |
|
|
Back light |
10 LEDs |
|
|
Driver IC |
ST7703 |
|
|
Interface |
MIPI |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
