Description:
TSD TFT item number TST080FHBF-N81 is 8 inch, IPS TFT LCD, 1920*1200 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.
| Specification | |
| LCD type | 8 inch ips display |
| Display type | 8 inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
| Viewing angle | All |
| Outline Dimension(mm) | 119.8x181.7x5.5 |
| Active Area.(mm) | 172.224x107.640 |
| Resolution(dots) | 1920xRGBx1200 |
| Operating Voltage | 3.3V |
| Operating temperature(°C) | -30- +85 |
| Storage temperature(°C) | -30- +85 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Luminance(cd/m2) | 1000(typ.) |
| Contrast Ratio | 3000(typ.) |
| Application | Notebook, advertisement display, etc. |
| Number of pins | 45 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |

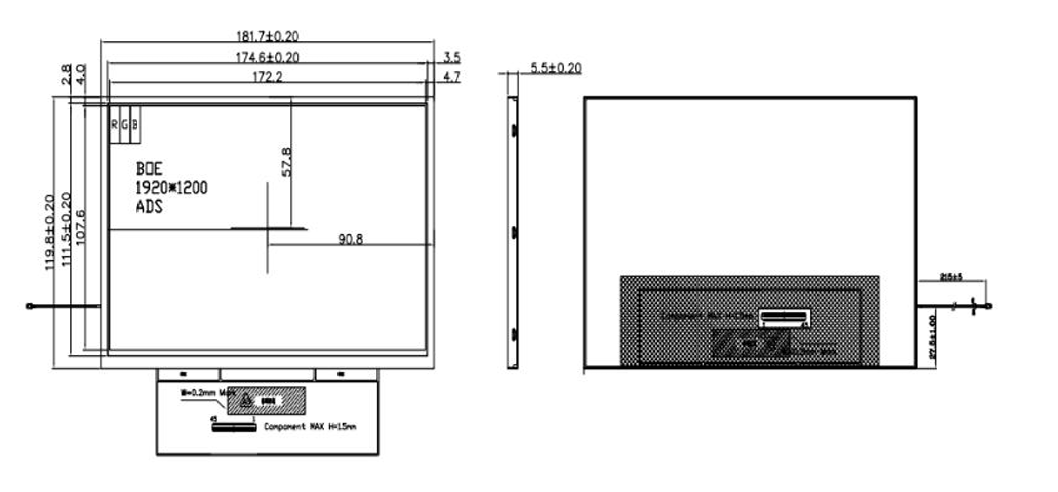

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | VLED- | Power for led backlight (Cathode) |
| 2 | VLED- | Power for led backlight (Cathode) |
| 3 | VLED+ | Power for led backlight (Anode) |
| 4 | VLED+ | Power for led backlight (Anode) |
| 5 | NC | Noconnection |
| 6 | GND | Power ground |
| 7 | ELV3P | LVDSdifferential datainputPositive |
| 8 | ELV3N | LVDSdifferential datainputNegative |
| 9 | GND | Power ground |
| 10 | ELV2P | LVDSdifferential datainputPositive |
| 11 | ELV2N | LVDSdifferential datainputNegative |
| 12 | GND | Power ground |
| 13 | ELVLKP | LVDSdifferential datainputPositive |
| 14 | ELVLKN | LVDSdifferential datainputNegative |
| 15 | GND | Power ground |
| 16 | ELV1P | LVDSdifferential datainputPositive |
| 17 | ELV1N | LVDSdifferential datainputNegative |
| 18 | GND | Positive MIPI differential data input |
| 19 | ELV0P | LVDSdifferential datainputPositive |
| 20 | ELV0N | LVDSdifferential datainputNegative |
| 21 | GND | Power ground |
| 22 | OLV3P | LVDSdifferentialdatainputPositive |
| 23 | OLV3N | LVDSdifferentialdatainputNegative |
| 24 | GND | Power ground |
| 25 | OLV2P | LVDSdifferentialdatainputPositive |
| 26 | OLV2N | LVDSdifferentialdatainputNegative |
| 27 | GND | Ground |
| 28 | OLVCLKP | LVDSdifferentialdatainputPositive |
| 29 | OLVCLKN | LVDSdifferentialdatainputNegative |
| 30 | GND | ground |
| 31 | OLV1P | LVDSdifferentialdatainputPositive |
| 32 | OLV1N | LVDSdifferentialdatainputNegative |
| 33 | GND | ground |
| 34 | OLVOP | LVDSdifferentialdatainputPositive |
| 35 | OLVON | LVDSdifferentialdatainputNegative |
| 36 | GND | ground |
| 37 | I2CSDA | data input/output forI2C Please let these pins open. |
| 38 | I2CSCL | CLock signal for I2C (please let these pins open) |
| 39 | VDD OTP | supply for OTP circuit(please letthese pins open |
| 40 | EEPEN | 0nlytest Pin(please letthese pinsopen.) |
| 41-45 | VDDIN | power supply |
Applications:
For our 8 inch LCD displayTST080FHBF-N81, it's widely using in handheld device.
Product Features:
1.8 inch 1920*1200res. with 45pins LVDS interface
2. IPS lcd : full viewing angle
3.FHD high definition
4.Vertical lcd type with capacitive touch
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
