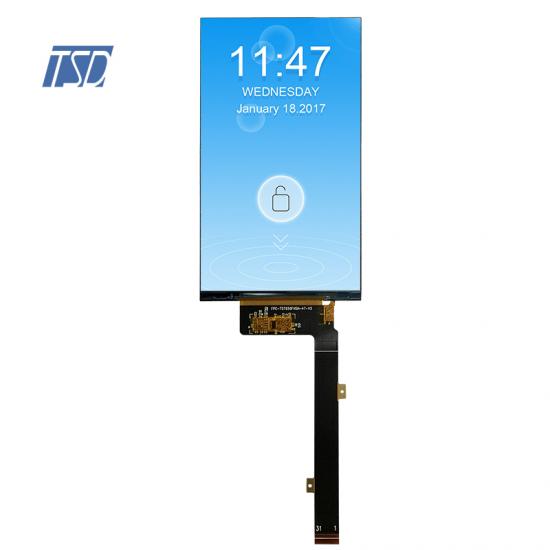

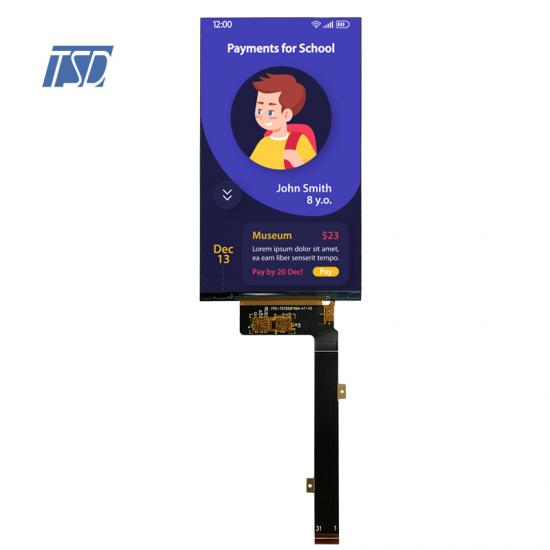

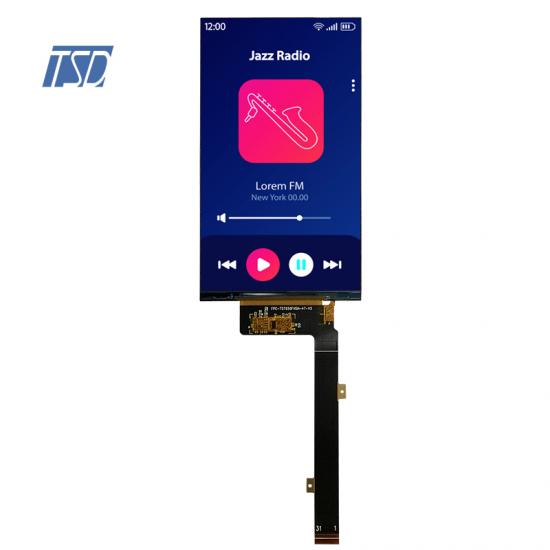

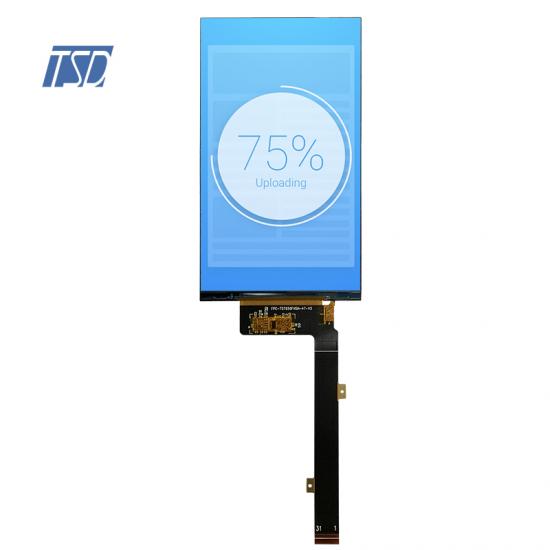

Description:
TST050FWBS-107 is 5 inch 480x960 resolution LCD display with RGB/SPI interface, standard brightness is 450cd/m2. For this 5 inch TFT LCD module, . Driver IC is ST7701S, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc
| Specification | ||
| Part No. | TST050FWBS-107 | |
| Outline Dimension(mm) | 59.76x120.58x2.1 | |
| Active Area(mm) | 56.16x112.32 | |
| Resolution(dots) | 480x960 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 480*960 | |
| Touch panel | Without |
|
| Driver IC | ST7701S | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 5 inch TFT | |
| Surface treatment | Anti glare | |
| View direction | ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MIPI |
|
| Module lifetime(Hours) | 50,000-100,000 | |

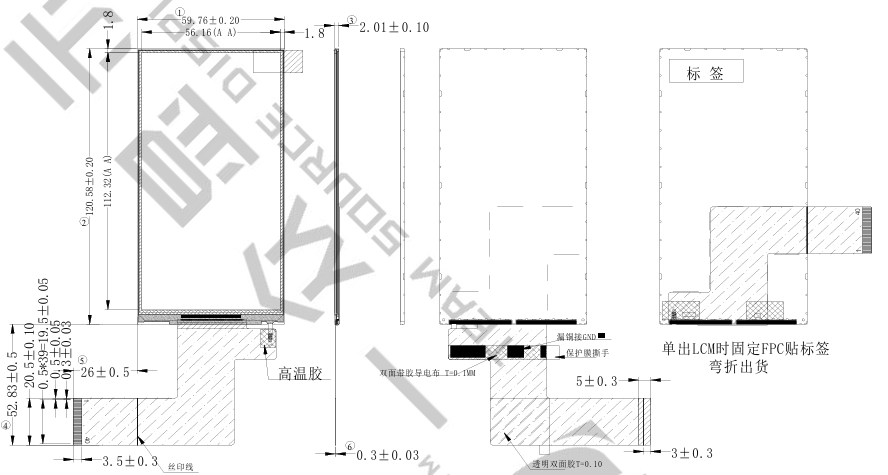

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | LED-K | Backlight K Cathode input pin. |
| 2 | LED-A | Backlight A anode input pin. |
| 3 | LED+ | System Ground.(0V) |
| 4 | GND | Power supply(3.3V) |
| 5-12 | RO-R7 | Red Data bus |
| 13-20 | G0-G7 | Green Data bus |
| 21-28 | B0-B7 | Blue Data bus |
| 29 | GND | System Ground.(0V) |
| 30 | CLK | Dot clock signal for RGB interface operation |
| 31 | RST | Reset input pin |
| 32 | HSYNC | Line synchronizing signal for RGB interface operation |
| 33 | VSYNC | Frame synchronizing signal for RGB interface operation |
| 34 | DEN | Data enable signal for RGB interface operation |
| 35 | SDO | Serial data output pin used for the SPl Interface. |
| 36 | GND | System Ground. (0V) |
| 37 | SPI SDA | Serial data input/output bidirectional pin for SPI Interface |
| 38 | SPI SCK | Serial clock input for SPl interface. |
| 39 | SPI CS | A chip select signal. |
| 40 | GND | System Ground.(0V) |
Applications:
For our 5 inch LCD display TST050FWBS-107, it's widely using in handheld device, POS machine, scanning products.
Product Features:
1.5‘’ 480*960 res. with 40pins RGBV/SPI interface
2. IPS lcd : full viewing angle
3.ST7701S Controller
4.Vertical lcd type
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
