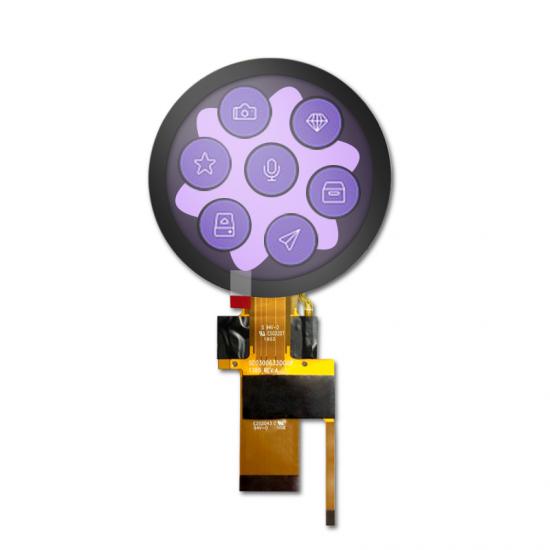

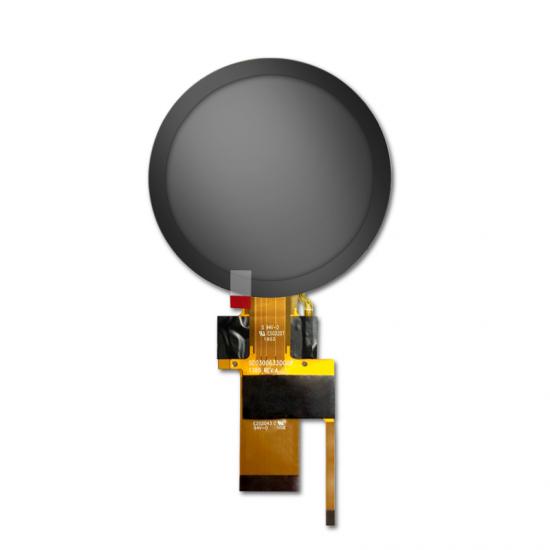

432x432 resolution 3 inch round ips lcd display with ST1633i touch controller

432x432 resolution 3" ips round lcd display with ST1633i touch controller

Specification

LCD type 3 inch IPS round tft display module
Display type 3" round TFT
Driver element a-si TFT Active matrix

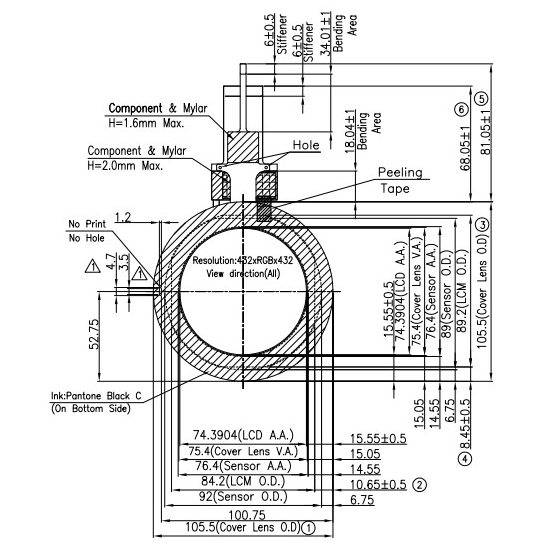

Outline Dimension(mm)
84.2*89.2(W)
Cover lens OD(mm) 105.5(W)*105.5(L)
CTP IC ST1633i
Resolution(dots)_ 432*RGB*432
Viewing Direction All
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 432(H)x 3RGB x 432(V)
Operating Volatge 3.3v
Logic Voltage 1.8v-2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
IC Package Type COG
Luminance 850 nits
Backlight While LEDs
Number of pins 45
Module lifetime(Hours) 50,000-100,000
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
