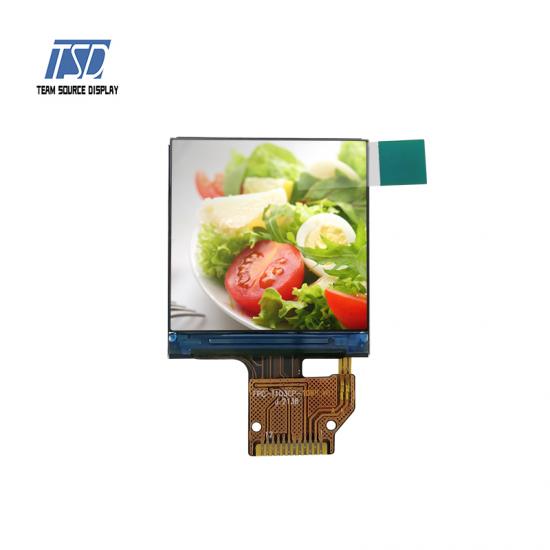

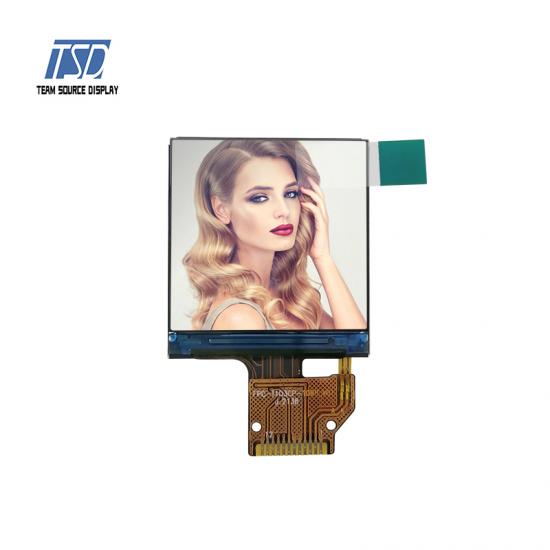

TSD 1.3 Inch TFT Touch Screen TST013QVHS-07

Module name: TST013QVHS-07

LCD Type: 1.3 inch tft lcd

Resolution:240x (RGB) ×240

Viewing angle: All o’clock

Driver IC: ST7789V3

Interface:4wire-SPI

Touch Screen:Without

Weight:TBD

Description:



TST013QVHS-07 is 1.3 inch 240*RGB*240 resolution LCD display with 4 wire SPI interface, standard brightness is 600 cd/m2, which is suitable for indoor and outdoor application. For this 1.3 inch lcd module, driver IC is ST7789V3, viewing direction is All o’clock , color depth is 65KM, this lcd module is with standard Capacitive touch panel, customized design are also welcome.



Serial peripheral interface (SPI) is one of the most widely used interfaces between microcontroller and peripheral ICs such as sensors, ADCs, DACs, shift registers, SRAM, and others. This article provides a brief description of the SPI interface by an introduction to Analog Devices’ SPI enabled switches and muxes, and how they help reduce the number of digital GPIOs in system board design.

SPI is a synchronous, full duplex main-subnode-based interface. The data from the main or the subnode is synchronized on the rising or falling clock edge. Both main and subnode can transmit data at the same time. The SPI interface can be either 3-wire or 4-wire. This article focuses on the popular 4-wire SPI interface.

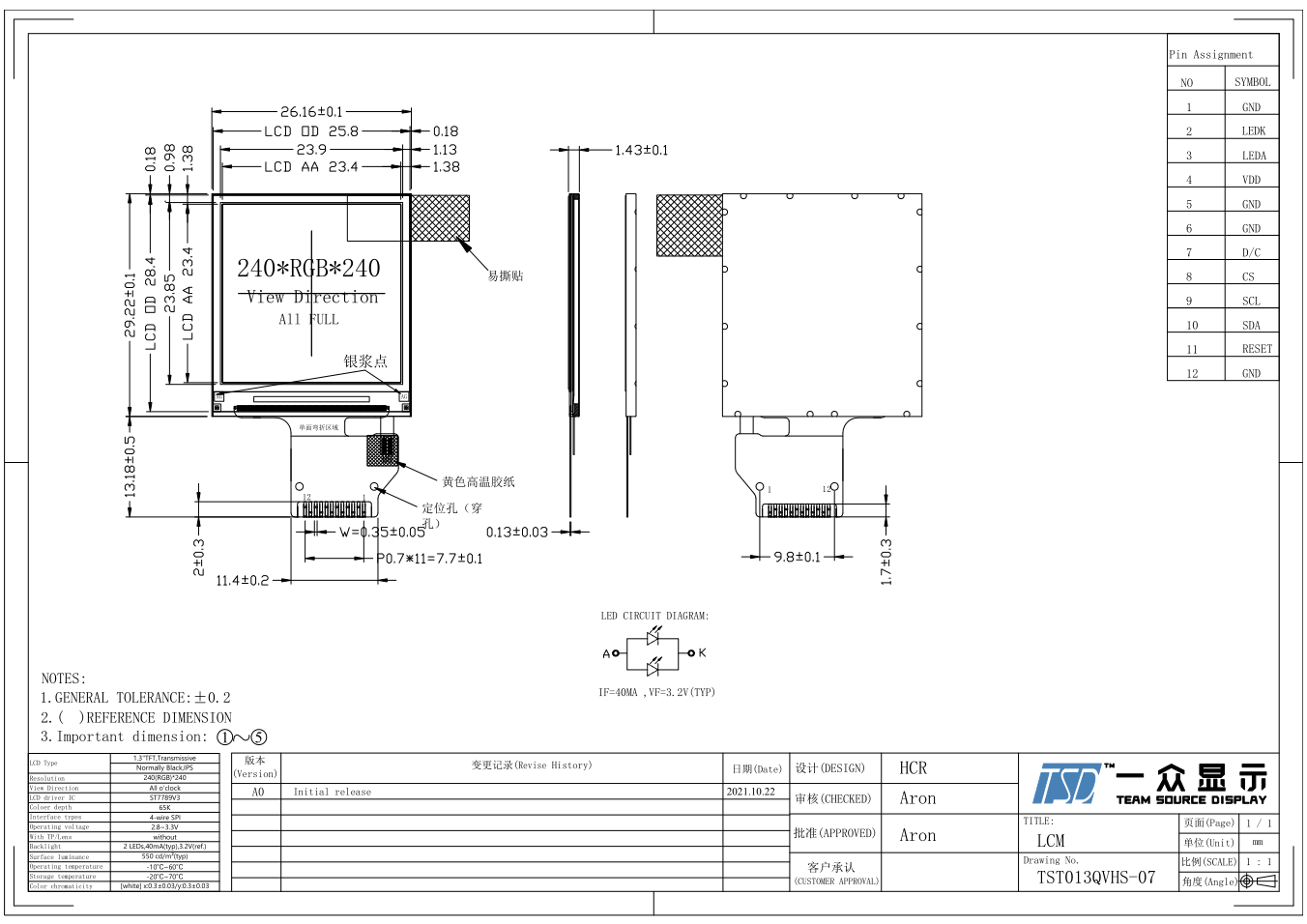

Drawing:





Specifications:



General Specification

Part No.

TST013QVHS-07

Outline Dimension(mm)

26.16(H) x 29.22(V) x 1.43(D

Active Area(mm)

23.4 (H) x 23.4 (V)

Resolution(dots)

240x (RGB) ×240

Operating temperature(°C)

-1 0℃~60℃

Storage temperature(°C)

-20 ~ +70°C

Number of Pixel(pixels)

320RGB(H)xRGBx480V)

Touch panel

CTP

Driver IC

ST7789V3

Pixel arrangement

RGB-stripe

Display mode

Normal Black

Surface treatment

Antiglare

View direction

All o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)



B/L system

TBD(Typ.)

Interface

4wire-SPI

Module lifetime(Hours)

50,000-100,000



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
