Description:

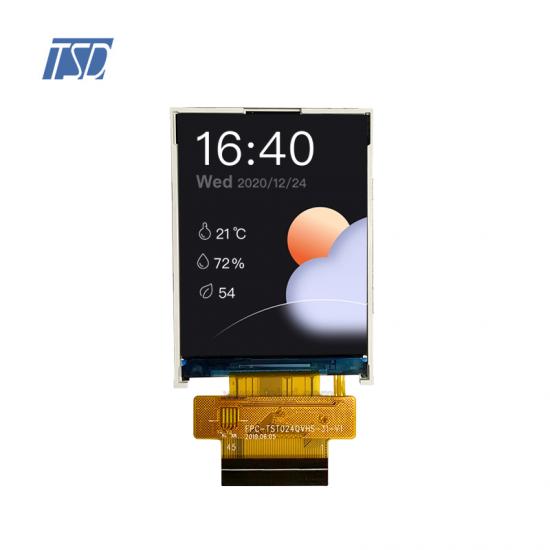

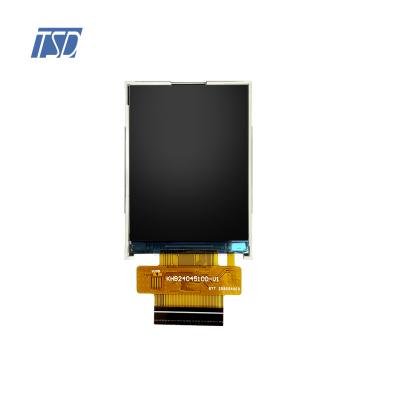

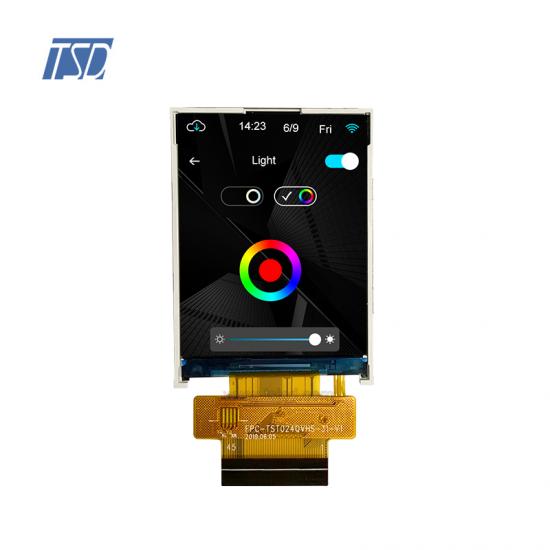

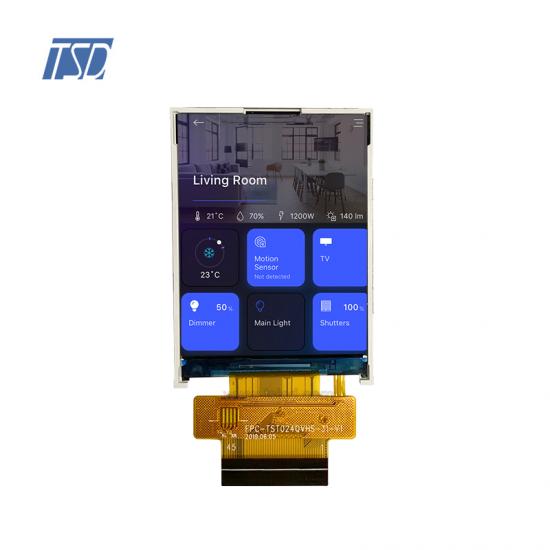

TST024QVHS-31 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 36.72 (W) x 48.96 (H) mm diagonally measured active area with 240 x (RGB) × 320 resolutions.

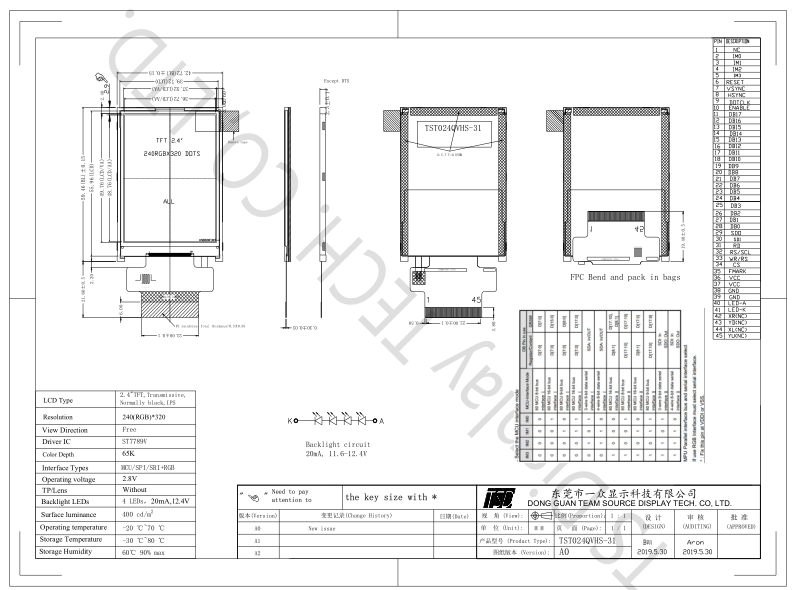

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST024QVHS-31 |
|
|
Outline Dimension(mm) |
42.72W) x 60.26(H) x 2.3(D) |
|
|
Active Area(mm) |
36.72 (W) x 48.96 (H) |
|
|
Resolution(dots) |
240 x (RGB) × 320 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
400(Typ) |
|
|
Touch panel |
without |
|
|
Pixel arrangement |
RGB Vertical stripe |
|
|
Display mode |
Normal black, IPS |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
All o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
MCU/SPI/ SRI +RGB |
|
|
Ic |
ST7789V |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
NC |
No Connect |
|
2-5 |
IM0-IM3 |
Interface select |
|
6 |
RESET |
Reset input signal |
|
7 |
VSYNC |
Vertical sync signal |
|
8 |
HSYNC |
Horizontal sync signal |
|
9 |
DOTCLK |
Pixel clock |
|
10 |
ENABLE |
Data enable |
|
11-28 |
DB17-DB0 |
Data BUS |
|
29 |
SDO |
Serial data output |
|
30 |
SDI |
Serial data input |
|
31 |
RD |
Read signal |
|
32 |
RS/SCL |
Data/Command selection pin |
|
33 |
WR |
Write signal |
|
34 |
CS |
Chip select signal |
|
35 |
FMARK |
Tearing effect output signal |
|
36-37 |
VCC |
Power supply +2.8V |
|
38-39 |
GND |
System Ground |
|
40 |
LED-A |
Backlight A Anode input pin |
|
41 |
LED-K |
Backlight K Cathode input pin |
|
42 |
XR/NC |
No Connect |
|
43 |
YD/NC |
No Connect |
|
44 |
XL/NC |
No Connect |
|
45 |
YU/NC |
No Connect |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
