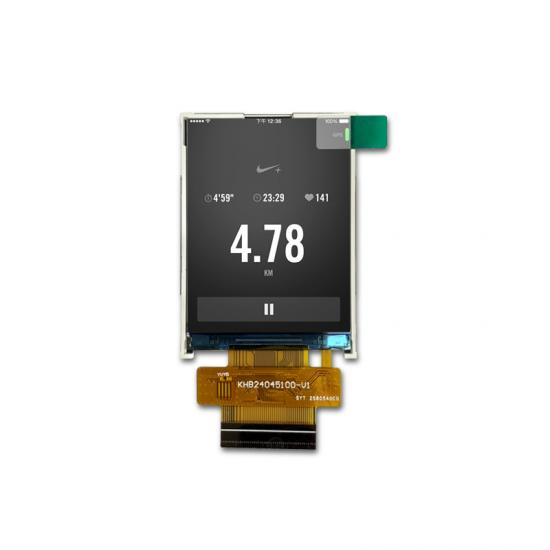

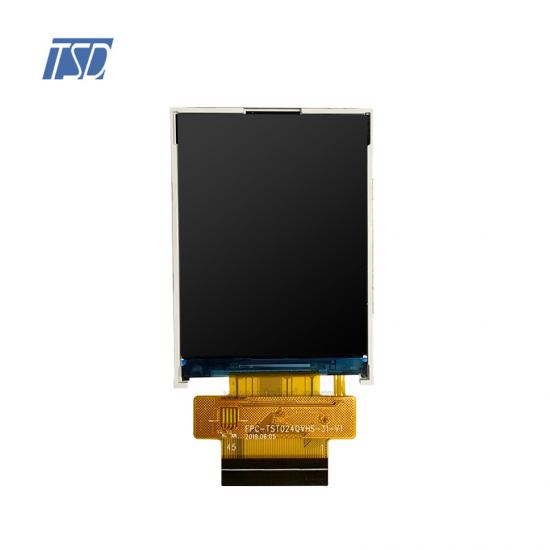

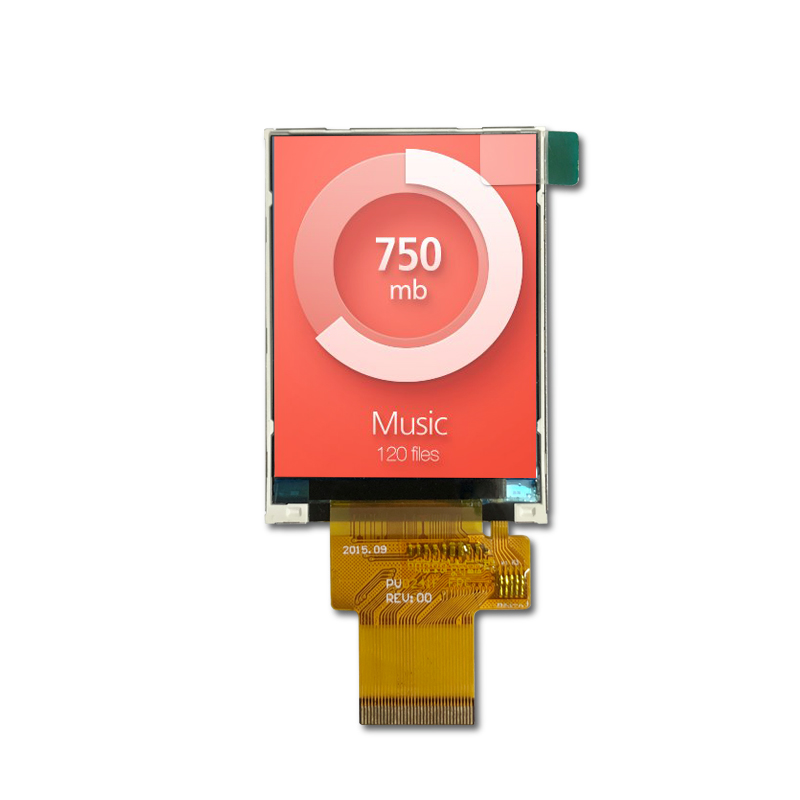

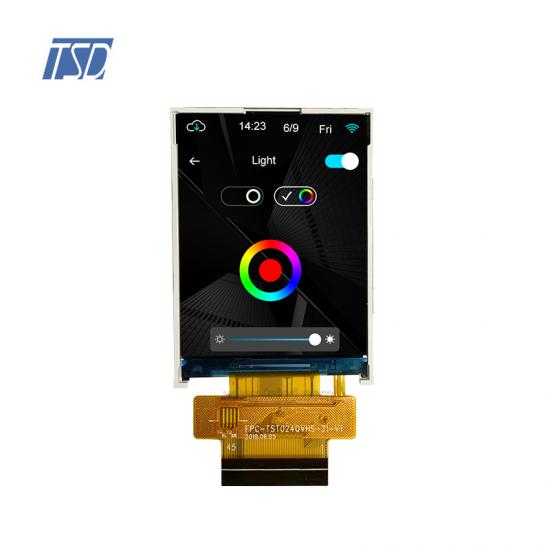

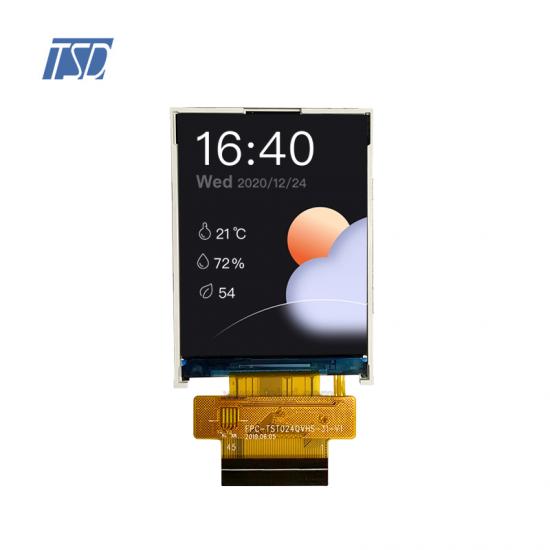

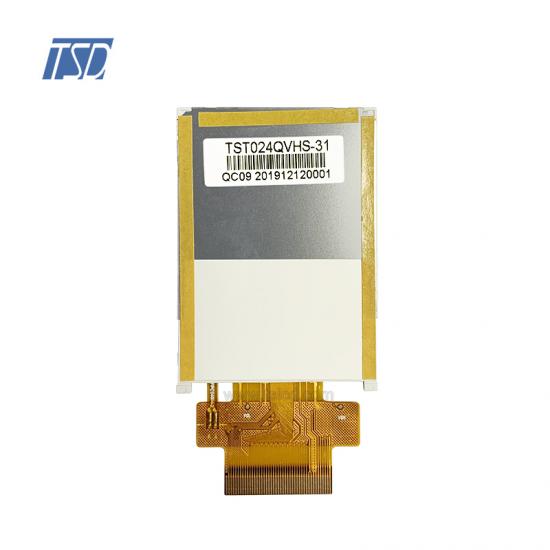

TSD 240x320 IPS 2.4 inch IPS TFT LCD screen

  • Model Name: TST024QVHS-34
  • LCD Type: 2.4 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: ST7789V
  • Interface: SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST024QVHS-34 is 2.4 inch 240x320 resolution SPI interface 10 pins LCD display module, without standard capacitive touch panel. Backlight is 400 nits, White LEDs is 4, backlight current is 20mA and backlight voltage is 12V, which could be customized. For this 2.4 inch TFT LCD module, driver IC is ST7789V, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

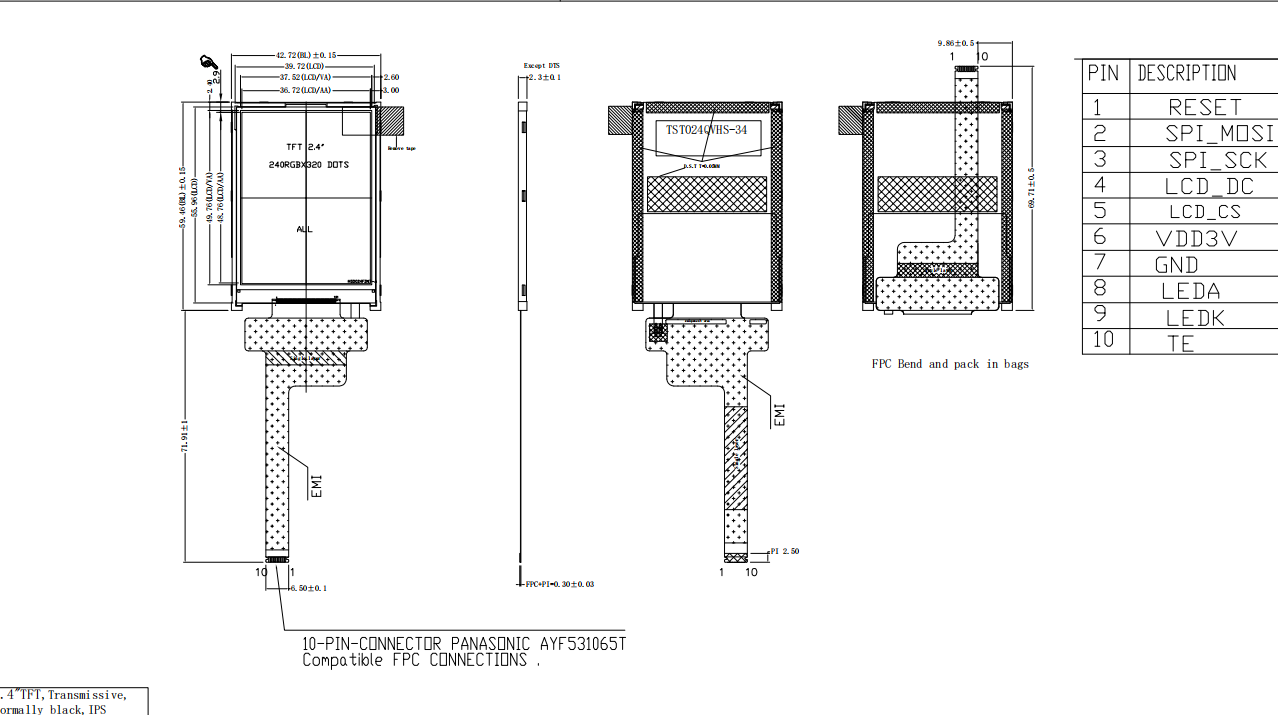

Drawing:




Specifications:



General Specification
Part No.  TST024QVHS-34
Outline Dimension(mm)

42.72x59.46x2.30

Active Area(mm) 36.72x48.96
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 RESET Reset input signal
2 SPI_MOSI Serial data in/output signal
3 SPI_SCK Serial clock input signal
4 LCD_DC Data/Command selection pin
5 LCD_CS Chip select signal
6 VDD3V Power supply
7 GND system ground
8 LEDA Backlight A Aode input pin
9 LEDK Backlight K Cathode input pin
10 TE Tearing effect output signal




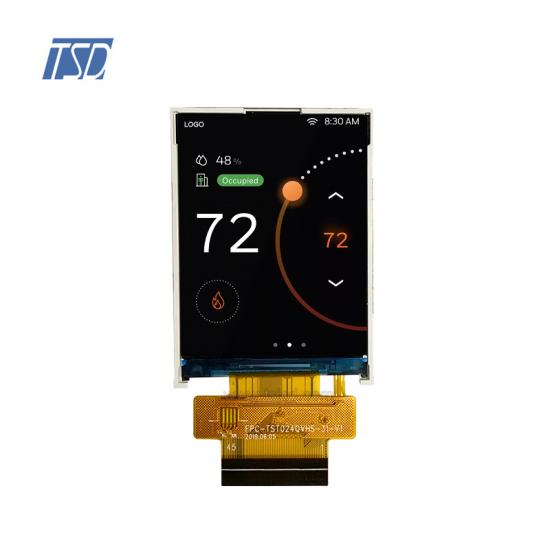

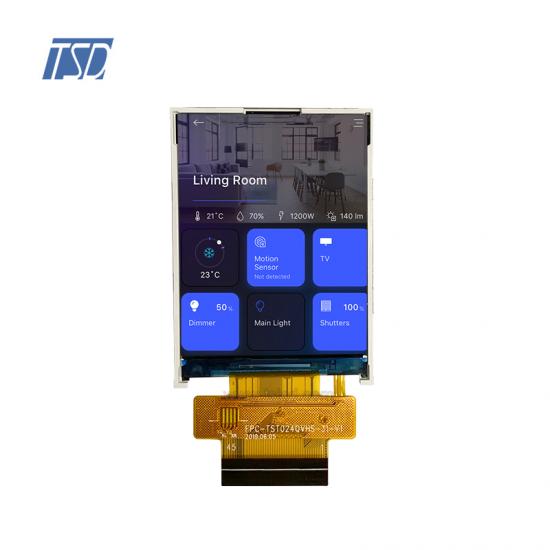

Applications:



For our 2.4 inch LCD display TST024QVHS-34, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.4" contains 240x320 dots and can display up to 65k colors.
