TSD 2.4 inch IPS TFT LCD module 240x320 resolution with RTP

  • Model Name: TST024QVHS-31P
  • LCD Type: 2.4 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: ST7789V
  • Interface: RGB interface
  • Touch Screen: with resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST024QVHS-31P is 2.4 inch 240x320 resolution color display, support MCU/SPI/SPI+RGB interface, with standard resistive touch panel. Backlight is 400 nits, White LEDs is 4, backlight current is 20mA and backlight voltage is 12.4V, which could be customized. For this 2.4 inch TFT LCD module, driver IC is ST7789V, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

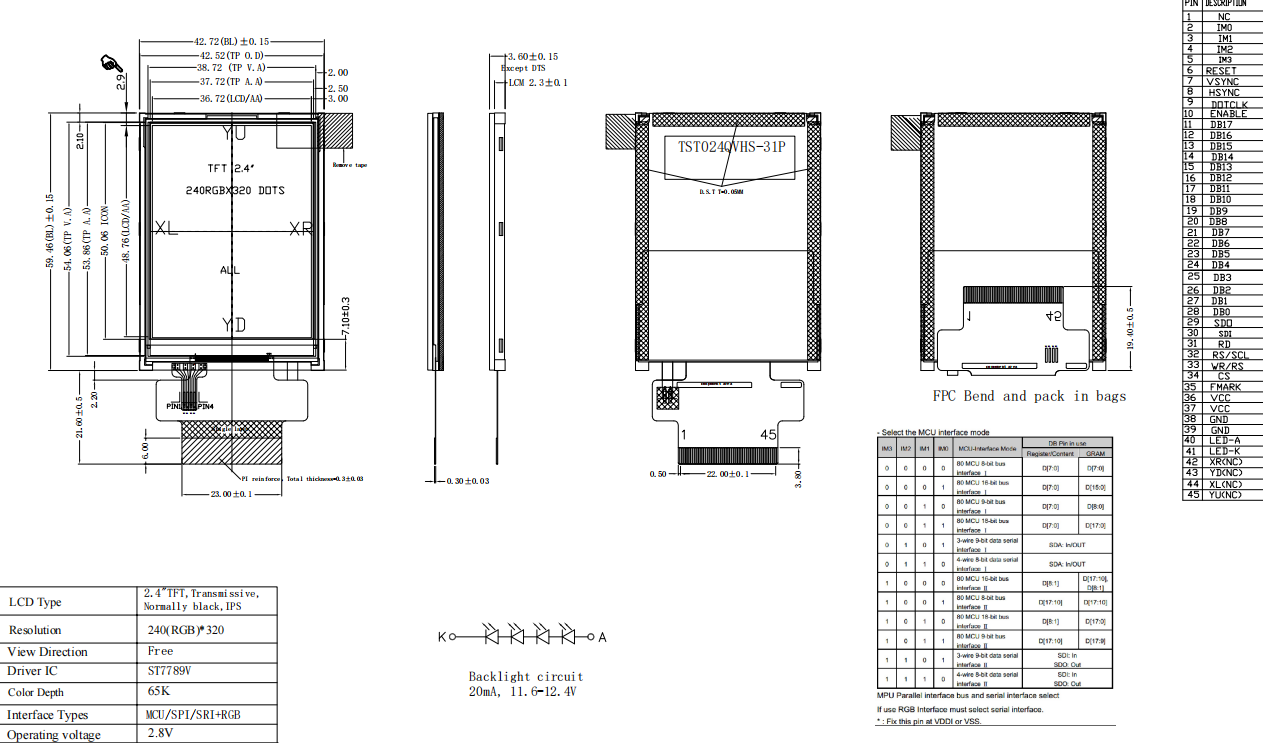

Drawing:




Specifications:



General Specification
Part No.  TST024QVHS-31P
Outline Dimension(mm)

42.72x59.46x3.6

Active Area(mm) 36.72x48.96
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  with RTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU/SPI/SPI+RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 NC No connect
2 IM0-IM3 Interface select
3 Reset Reset input signal
4 VSYNC Vertical sync signal
4 HSYNC Horizontal sync signal
6 ENABLE Data enable
7 DB17-DB0 Data BUS
8 SDO serial data output
9 SDI serial data output
10 RD read signal
11 RS/SCL Data/Command selection pin
12 WR write signal
13 CS chip selection signal
14 FMARK Tearing effect output signal
15 VCC Power supply +2.8V
4 GND System ground
4 LEDA Backlight A Anode input pin
4 LEDK Backlight K Cathode input pin
4 XR /
4 YD /
4 XL /
4 YU /




Applications:



For our 2.4 inch LCD display TST024QVHS-31P, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.4" contains 240x320 dots and can display up to 65k colors.
