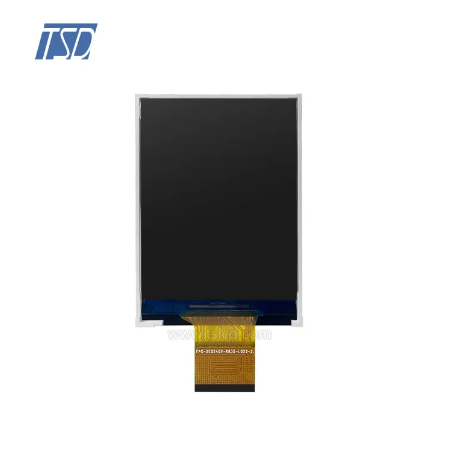

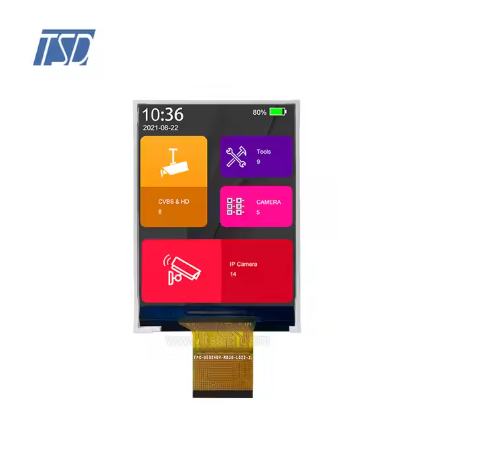

TSD UART STM32 2.4 Inch TFT LCD smart lcd module 320 x (RGB) × 240 resolution

Part number: Pro024QVSTM-R2101

Resolution: 240*320

View Direction: All o’clock

Active area: 33.966*81

LCM: 37.27*89*1.6

Touch type:CTP ports are reserved

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

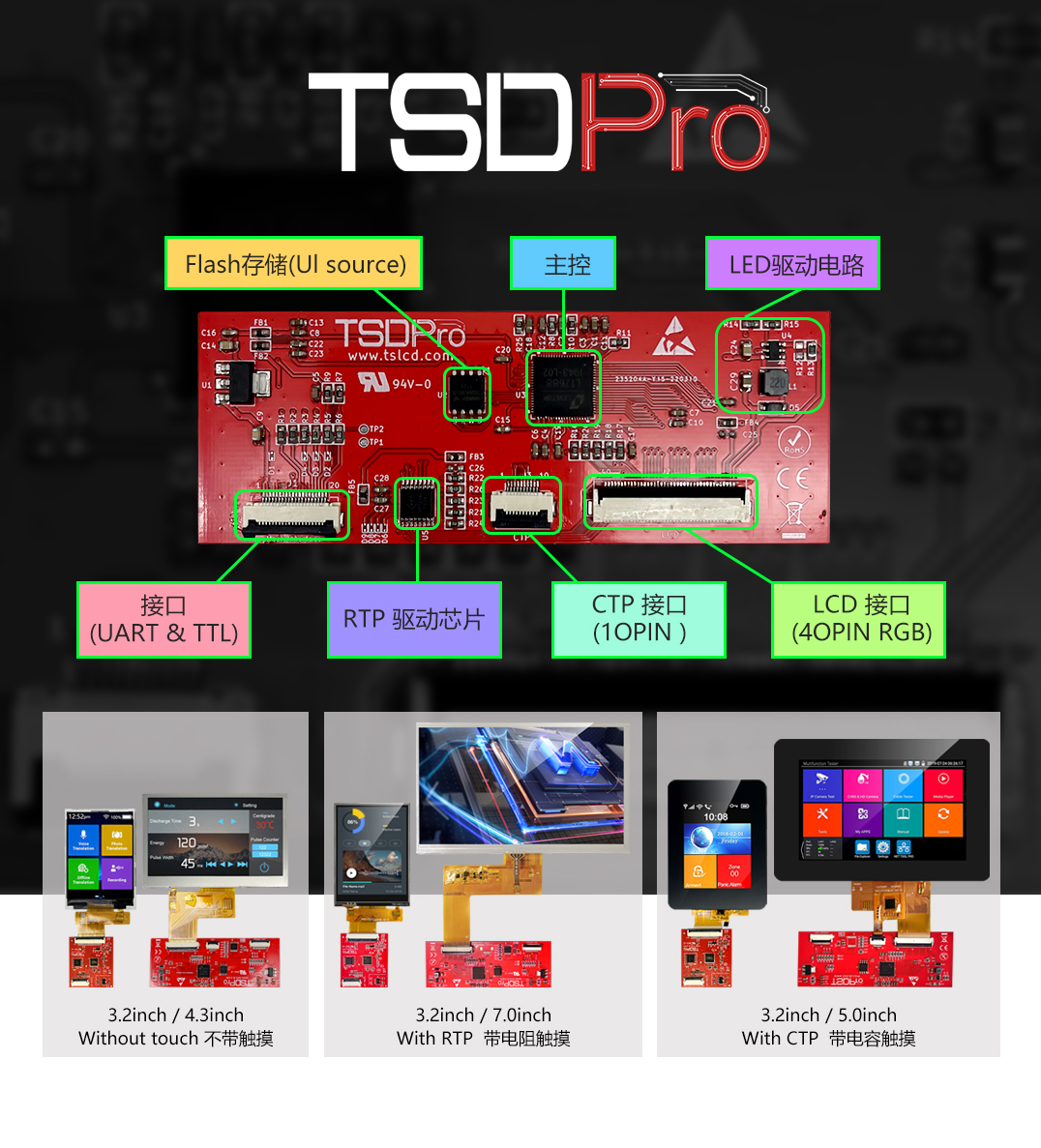

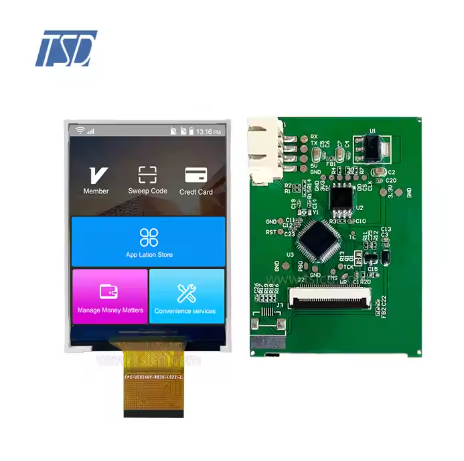

Pro024QVSTM-R2101 LCD module is a serial communication TFT color display module based on STM32 main chip development platform. Through optimization algorithm, the main chip and the display can cooperate quickly to make it have excellent screen refresh rate and dynamic display effect. The module has the advantages of simple structure, simple circuit and high adaptability to environment, and is suitable for various display products requiring serial communication.

UART (Universal Asynchronous Receiver and Transmitter) universal asynchronous receiver and transmitter (asynchronous serial communication port), is a general Data communication protocol, which includes interface standard specifications and bus standard specifications such as RS232, RS499, RS423, RS422 and RS485, that is, UART is the general name for asynchronous serial communication ports. TSD have the full ranges design for UART  solutions, contact us freely to get more detail information.



Drawing:

Specification



General Specification

Part No.

Pro024QVSTM-R2101

Display Size(Diagonal)

2.4 inch

LCD type

TFT,Transflective,Normally white

Resolution

240*320

View Direction

ALL o’clock

working voltage

4.5V ~ 9V, typical value: 5V

working current

50mA ~ 150mA, typical value 108mA

display colour

65K color

Backlight

LED

angle of view

80°/80°/80°/80

Interface

UART

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20℃70℃

Storage Temperature

-30℃80℃/96h
