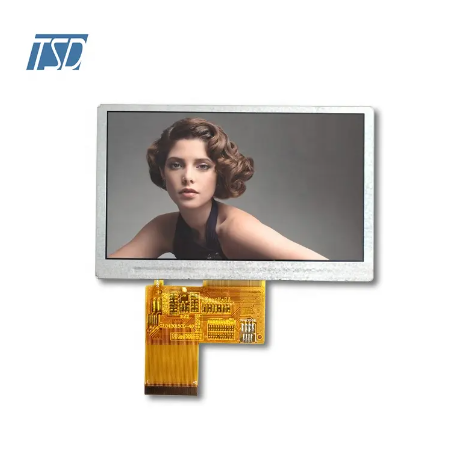

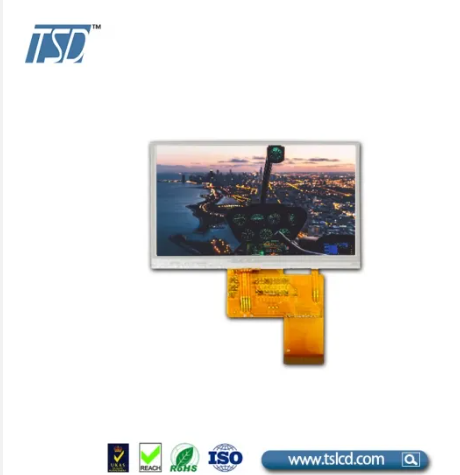

TSD 4.3 Inch TFT LCD lcd panel 480*RGB*272 resolution SC7283 LCD Controller



Part number: TST043WQHS-72P

Resolution: 480*RGB*272

View Direction: 6 o’clock

Active area: 95.04 (L)* 53.86 (W)

LCM: 105.5 (H)*67.2(V)*4.25(T)

Backlight: White LED*12

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST043WQHS-72P( is a transmissive type color active matrix liquid crystal display(LCD) which uses amorphous thin film transistor(TFT) as switching devices. This product is composed of a TFT LCD panel, a drive IC, a FPC, and a LED-backlight unit,and a resistive touch panel. The active display area is 4.3inches diagonally measured and the native resolution is 480*RGB*272.Features of this product are listed in the following table.





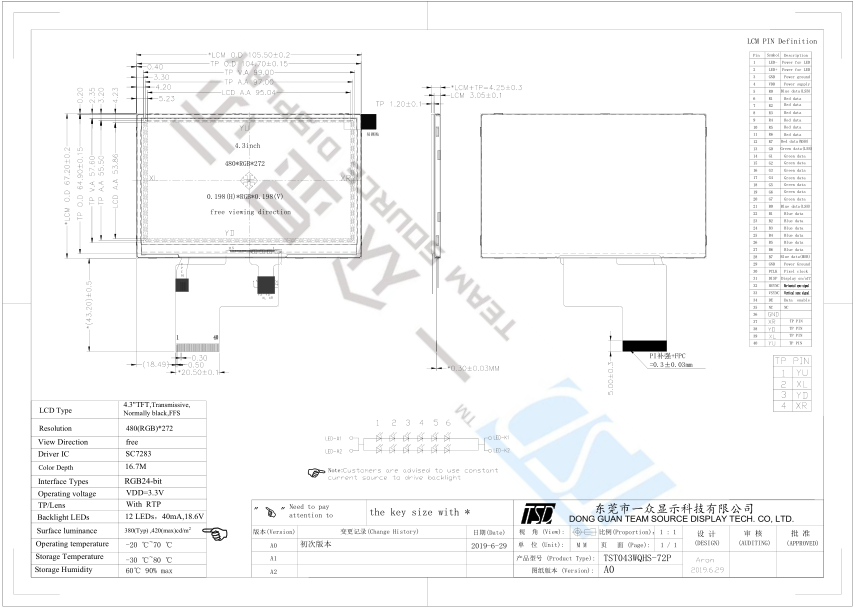

Drawing:



Specification



General Specification

Part No.

TST043WQHS-72P

Display Size(Diagonal)

4.3 inch

LCD type

TFT,Transflective,Normally white

Resolution

480*RGB*272

View Direction

6 o’clock

Module Outline

105.5 (H)*67.2(V)*4.25(T)(Exclude FPC)

Active Area

95.04 (L)* 53.86 (W)

Viewing Area

ALL

Backlight

White LED*12

Driver IC

SC7283

Interface

RGB24-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080



Pins Description

Pin No.

Symbol

Description

1

LED-

Cathode of LED backlight

2

LED+

Anode of LED backlight

3

GND

Power ground

4

VDD

Power voltage

5

R1

Red data

6

R2

Red data

7

R3

Red data

8

R4

Red data

9

R5

Red data

10

R6

Red data

11

R7

Red data

12

G1

Green data

13

G2

Green data

14

G3

Green data

15

G4

Green data

16

G5

Green data

17

G6

Green data

18

G7

Green data

19

G8

Green data

20

B1

Blue data

21

B2

Blue data

22

B3

Blue data

23

B4

Blue data

24

B5

Blue data

25

B6

Blue data

26

B7

Blue data

27

B8

Blue data

29

GND

Power ground

30

DCLK

Pixel clock

31

DISP

Display on/off

32

HSYN

Horizontal sync signal

33

VSYNC

Vertical sync signal

34

DE

Data enable

35

NC

NO connect

36

GND

Power ground

37

XR

The touch panel pin

38

YD

The touch panel pin

39

XL

The touch panel pin

40

YU

The touch panel pin



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
