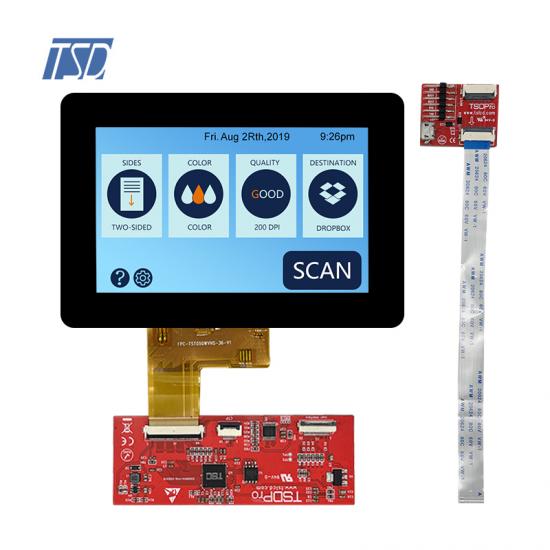

TSD 5'' LCD UART interface 800x480 resolution tft lcd display module

  • Model Name: ProLCD-T050C01
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 450 cd/m2
  • Driver IC: ST7262-G4-E
  • Interface: UART
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



ProLCD-T050C01 is 5 inch LCD display with UART interface, 800x480 resolution with standard PCAP touch, 5" tft lcd display module, luminance with touch screen is 450 nits, outline size is 140.7x93.83x4.68mm, Active area of LCD is 108x64.8mm. LCD type is 5 inch TFT display, normally black, IPS display with full viewing angle.



For this model, it's using sitronix IC, part number is ST7262, widely using for the industrial equipments. Display is coming out from UART TFT serial port internally, integrates video decoder, audio decoder, TFT LCD controller and serial communication protocol. The main function is to provide UART serial communication, so that the host MCU can easily transmit the information to be displayed to the TFT screen, support simple and fast realization of HMI human-computer interaction.

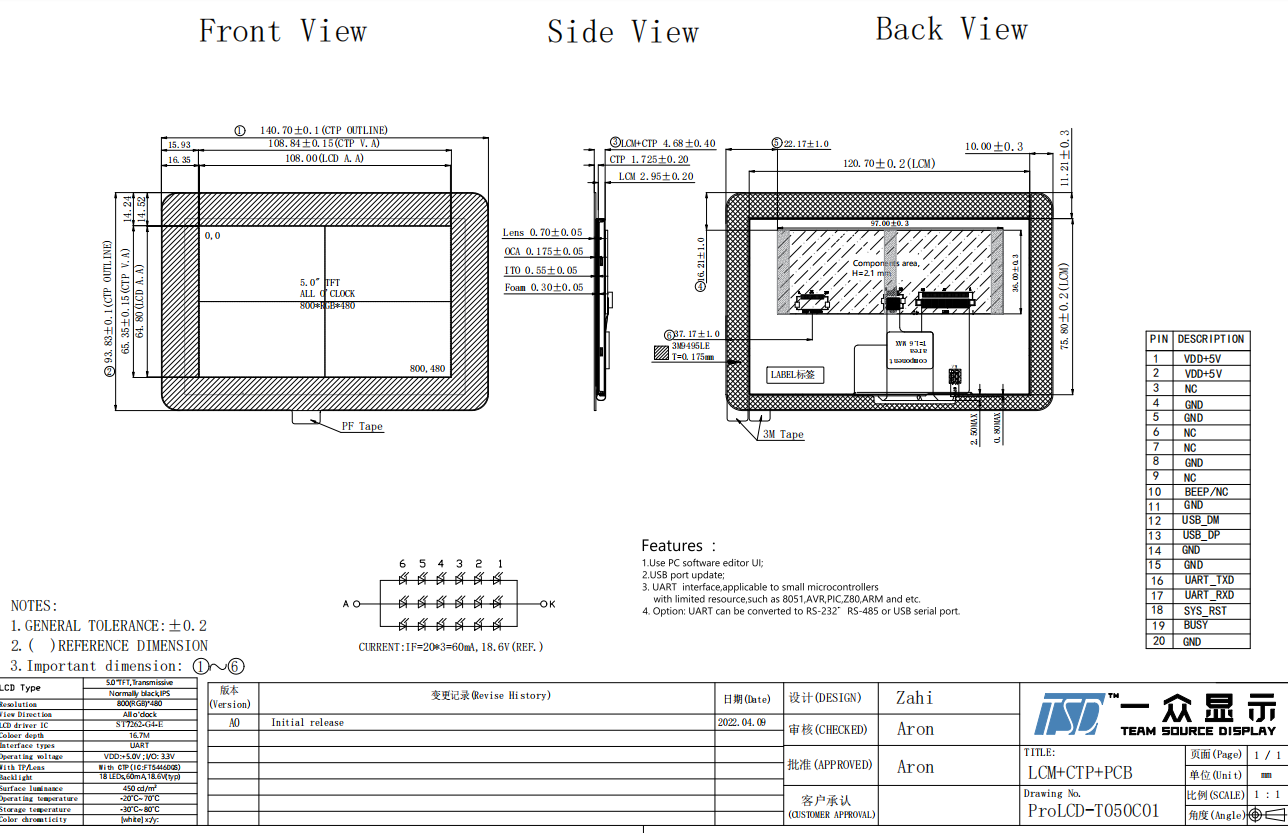

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T050C01
Outline Dimension(mm)

140.7x93.83x4.68mm

Active Area(mm) 108(W) x 64.8(H)
Resolution(dots)  800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  CTP
Driver IC ST7262
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP/NC Buzzer output / No connect
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



TSD 5 inch LCD with UART serial port, is suitable for use when video is needed Playback, electronic products with small-size TFT screens, such as various smart home Electricity, automobile and motorcycle instrument panels, industrial controls, electronic instruments, medical equipment Equipment, testing equipment and other products.


Development purpose:



1. The market demand for serial screen is increasing day by day;

2. Reduce the difficulty of designing UI on the client side and shorten the development cycle of terminal products;

3. For industrial control digital screens, if you want to design a good UI, you need high-end chips to drive them. At present, there is a shortage of chips in the world, and it is hard to find them! The serial port screen can make up for this vacancy very well. The client only needs a low-end microprocessor (commonly known as single-chip microcomputer) and cooperates with the host computer software to easily design its own UI
