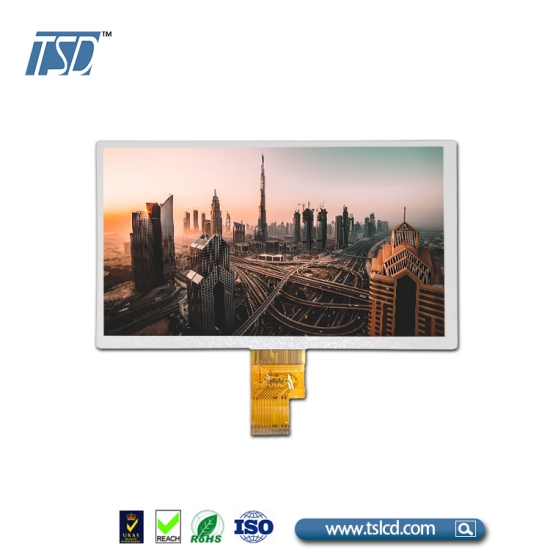

8 inch color TFT LCD panel 1024x600 resolution with digital interface

8 inch color TFT LCD panel 1024x600 resolution with digital interface

6 o'clock viewing angle


8 inch color TFT LCD panel 1024x600 resolution with digital interface



Specification
Part No. TST080WSSH-02, 8 inch lcd panel
Outline Dimension(mm) 164.9x100.0x6.7
Display Area(mm) 154.08x85.92
Resolution(dots) WVGA, 1024*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,Transmissive, 8 inch TFT
Surface treatment Antiglare
View direction  6H
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000
