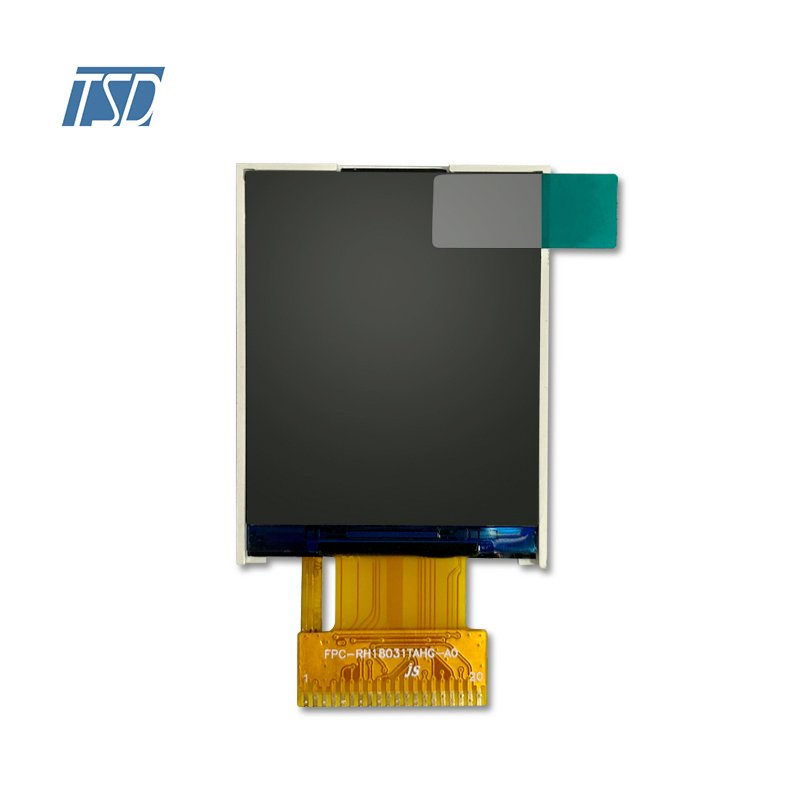

Description:
TST018QQST-05 is a 1.77 inch 128*160 resolution LCD display with MCU interface. With a small size looking, it is popular in smart home market and widely used for industrial devices to displaying interface and controling the product process, etc. For our standard 1.77 inch LCD, which has such features: Driver IC is ST7735S, Viewing direction is 6 o'clock, interface is MCU, Operating voltage is 2.8~3.3v, Color depth is 16.7M. 1.77 inch LCD found in a wide range of applications like portable electronic devices, industrial instruments and smart home appliance.

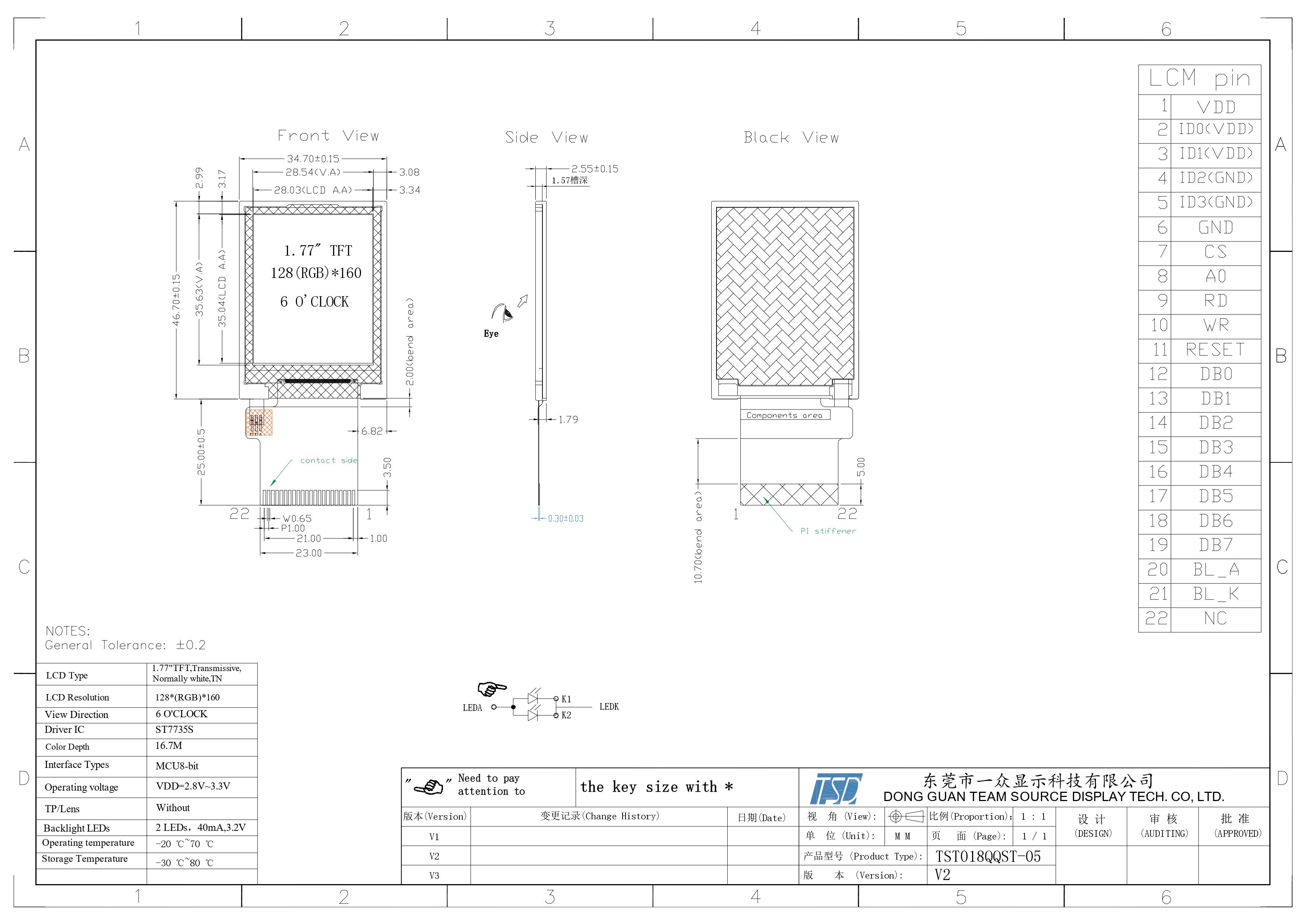

Drawing:
Specifications:
| General Specification | |
| Part No. | TST018QQST-05 |
| Outline Dimension(mm) | 34.70x46.70x2.55 |
| Active Area(mm) | 28.03x35.04 |
| Resolution(dots) | 128xRGBx160 |
| Operating temperature(°C) | -20 ~ +70°C |
| Storage temperature(°C) | -30 ~ +80°C |
| Number of Pixel(pixels) | 128xRGBx160 |
| Touch panel | Available |
| Driver IC | ST7735S |
| Pixel arrangement | RGB-stripe |
| Display mode |
1.77"TFT,Transmissive,
Normally white,TN
|
| Surface treatment | - |
| View direction | 6 |
| Weight(g) | TBD |
| Interface | MCU |
| Module lifetime(Hours) | 50,000-100,000 |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VDD | |
| 2 | ID0 | |
| 3 | ID1 | |
| 4 | ID2 | |
| 5 | ID3 | |
| 6 | GND | |
| 7 | CS | |
| 8 | A0 | |
| 9 | RD | |
| 10 | WR | |
| 11 | RESET | |
| 12 | DB0 | |
| 13 | DB1 | |
| 14 | DB2 | |
| 15 | DB3 | |
| 16 | DB4 | |
| 17 | DB5 | |
| 18 | DB6 | |
| 19 | DB7 | |
| 20 | BL-A | |
| 21 | BL-K | |
| 22 | NC | |
Applications:
For our 1.77 inch LCD display TST018QQST-05, displays an small size and high resolution, making it widely used in portable electronic devices and embedded systems. No matter it's in smartphones, embedded systems, measuring instruments, or navigation devices, TSD's 2.8 inch LCD support clear and high-quality image display, offering users a great visual experience and information presentation.
Product Features:
1. The1.77 inch LCD finds extensive application in portable electronic devices such as smartphones to complete these devices expressing a user-friendly interface and image presentation;
2. This 1.77 inch LCD is commonly found in embedded systems. Embedded systems like computer systems embedded in various devices;
3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.
