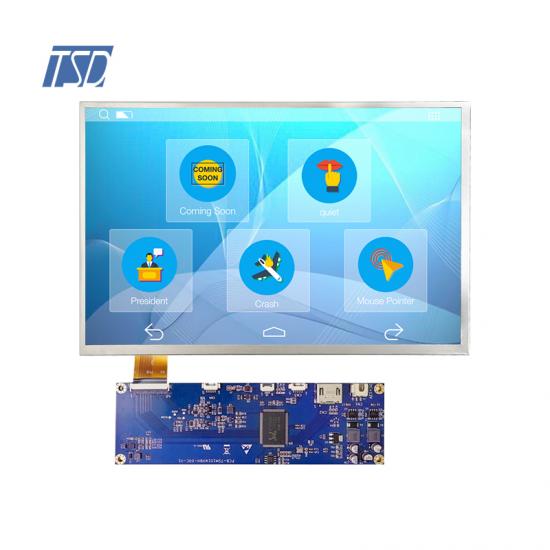

TSD 10.1 inch 1280x800 resolution IPS TFT LCD with HDMI interface

  • Model Name: TSM101WXBH-69
  • LCD Type: 10.1 inch HDMI TFT display
  • Resolution: 1280x800
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: HX8861
  • Interface: HDMI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TSM101WXBH-69 is 10.1 inch 1280x800 resolution IPS TFT display with HDMI interface, backlight outline dimension for the lcd display is 229.7x149.15mm, LCD active area is 216.96x135.6mm. Thickness of the lcd module is 5mm. It's IPS dipslay with 1000 cd/m2 high brightness. TSD also have the standard PCAP touchscreen for it. There are HDMI, CTP, Backlight and power interface for it.



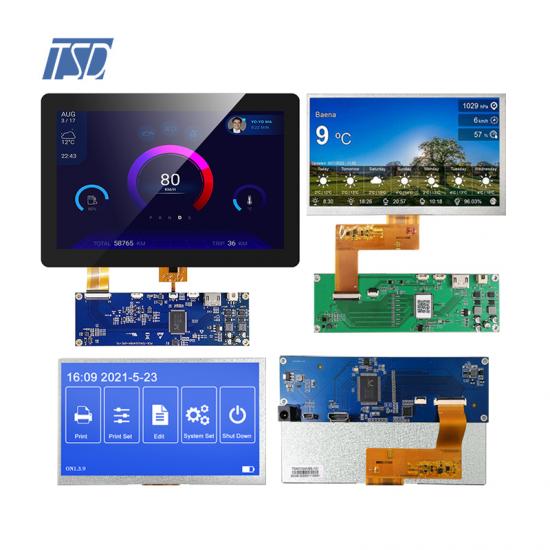

HDMI displays support high-definition multimedia interface (High Definition Multimedia Interface, HDMI) interface display devices. HDMI displays can transmit a large amount of information and provide clear images. For TSD HDMI display solution, we have 3.97 inch, 4.3 inch, 7 inch, 10.1 inch, 12.3 inch and many other standard models, customized design are warmly welcome and supported.

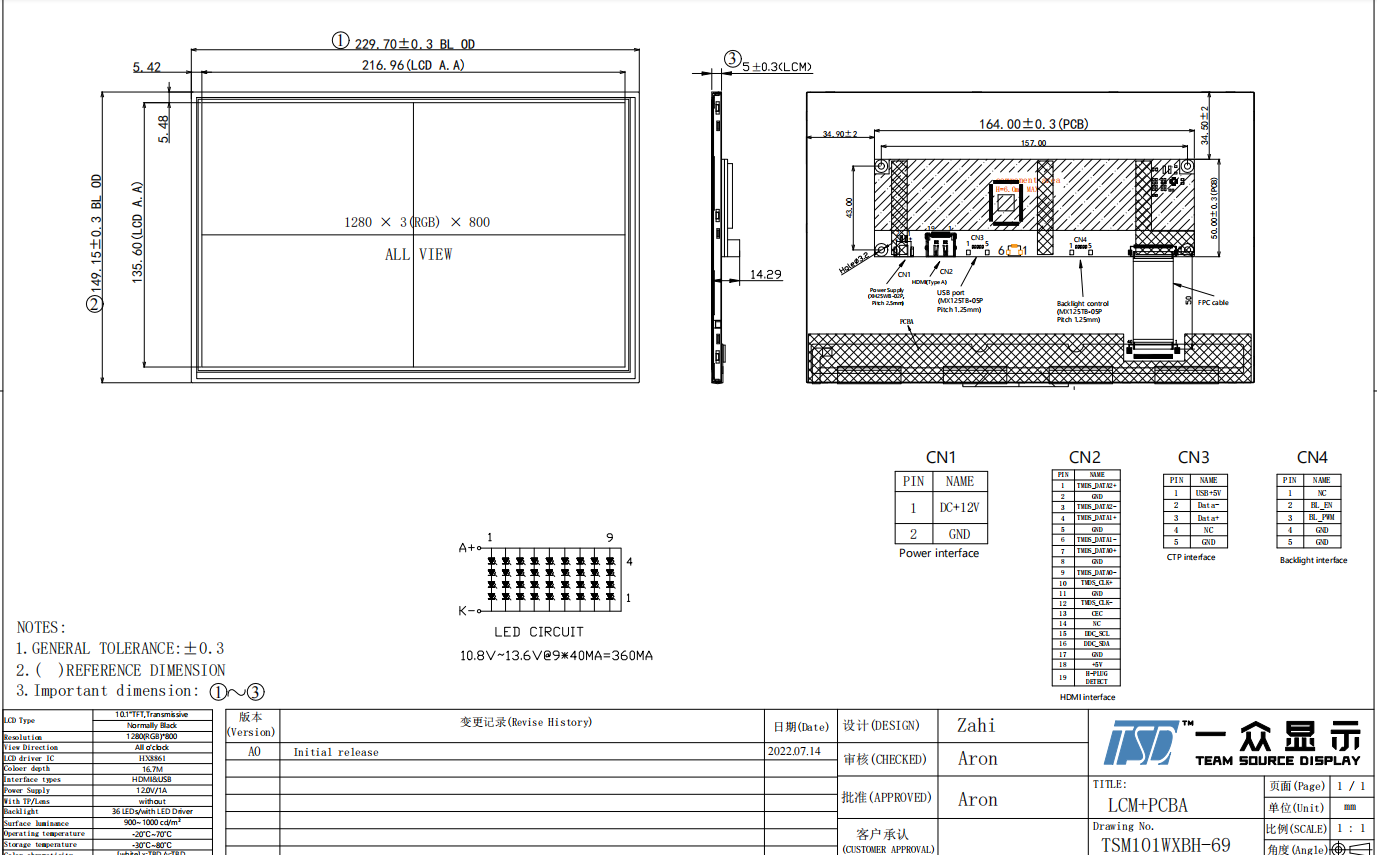

Drawing:





Specifications:



General Specification
Part No.  TSM101WXBH-69
Outline Dimension(mm)

229.7(W)x149.15(H)x5(D)

Active Area(mm) 216.96(W) x 135.6(H)
Resolution(dots) 1280x (RGB) × 800
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 1280RGB(H)xRGBx800(V)
Touch panel  without
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 10.1 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface HDMI
Module lifetime(Hours) 30,000-50,000





Pins Description for HDMI Type A (CN2)
Pin No.  Symbol Description
1 TMDS DATA2+ HDMI data lane2 positive input
2 GND Power ground
3 TMDS DATA2- HDMI data lane2 negative input
4 TMDS DATA1+ HDMI data lane1 positive input
5 GND Power ground
6 TMDS DATA1- HDMI data lane1 negative input
7 TMDS DATA0+ HDMI data lane0 positive input
8 GND Power ground
9 TMDS DATA0- HDMI data lane0 negative input
10 TMDS_CLK+ HDMI clock positive input
11 GND Power Ground
12 TMDS_CLK- HDMI clock negative input
13 CEC No connect
14 NC No connect
15 DDC_SCL Display Data Channel, clock input
16 DDC_SDA Display Data Channel, data input/output
17 GND Power ground
18 +5V Power supply +5V
19 H-PLUG DETECT Hotplug pin



CTP interface Description  (CN3)
Pin No.  Symbol Description
1 USB+5V USB power supply +5V
2 Data- USB data negative
3 Data+ USB data positive
4 NC No connect
5 GND Power ground



DC Power Description  (CN1)
Pin No.  Symbol Description
1 DC+12V Power supply DC +12V
2 GND Ground



Backlight control interface  (CN4)
Pin No.  Symbol Description
1 NC No connect
2 BL_EN Backlight enable input. High(>1.6V): On; Low:(<0.8V) Off
3 BL_PWM Backlight PWM dimming control input. 20KHz≤fDIM≤30KHz
4 GND Ground
5 GND Ground




Application:

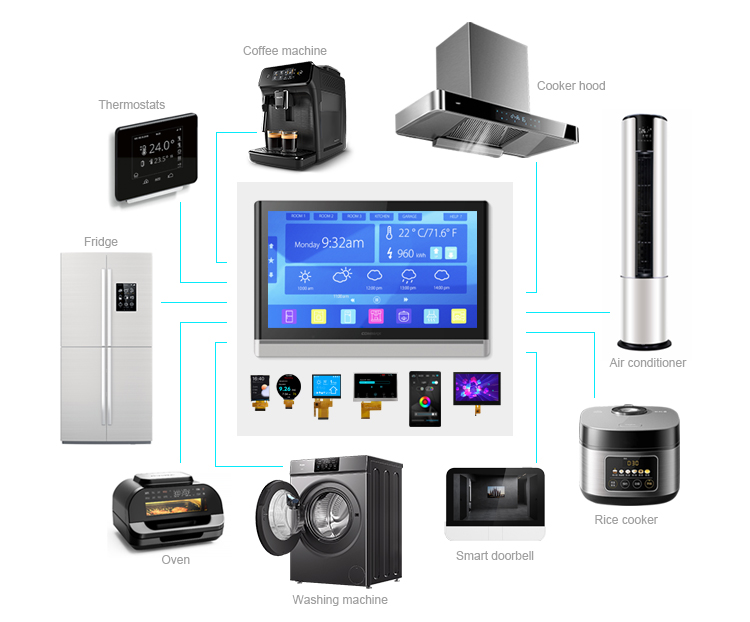

TSD HDMI TFT LCD Displays are plug and play Embedded HDMI HMI LCD modules with a USB touch screen interface. The resistive, capacitive, or non-touch modules are compatible with a wide range of systems including: Raspberry Pi, Windows, Linux,etc. From the hobbyist to the high volume industrial application, it was designed to satisfy a wide range of customer application requirements, such as Thermostats, Coffee machine, Cooker hood, Air conditioner, smart doorbell, oven and many other products.
