Description:

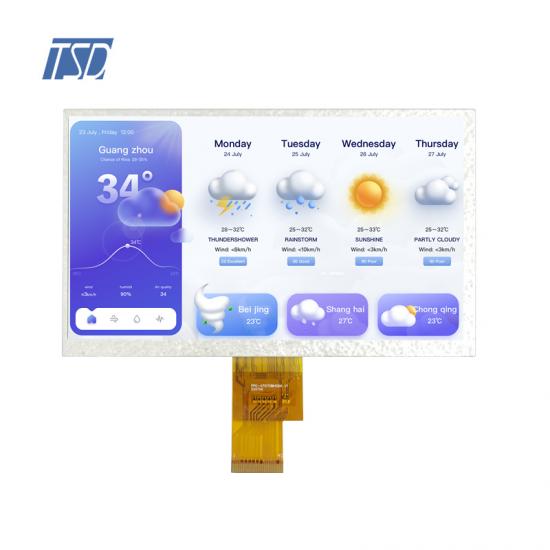

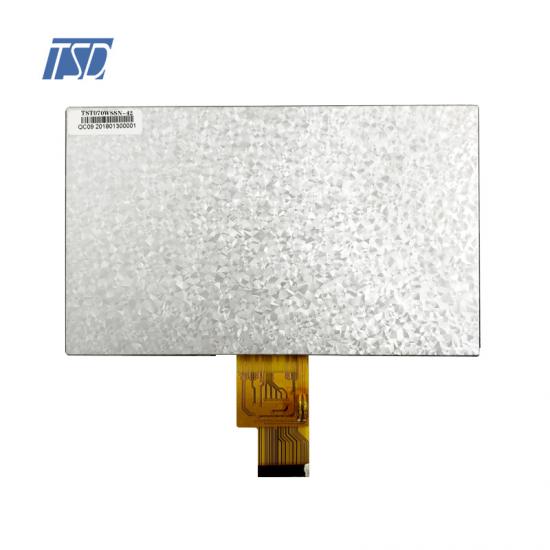

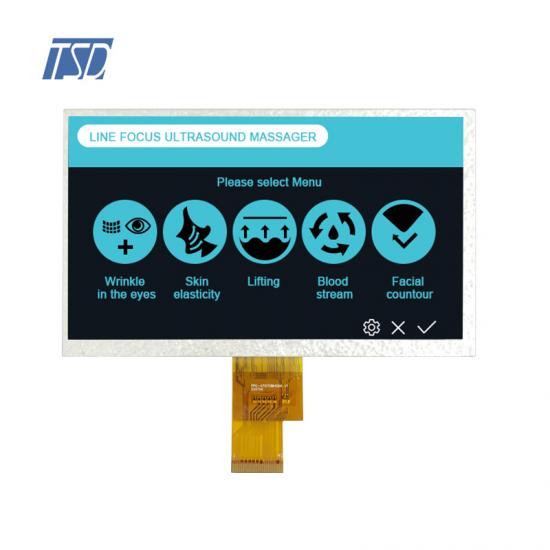

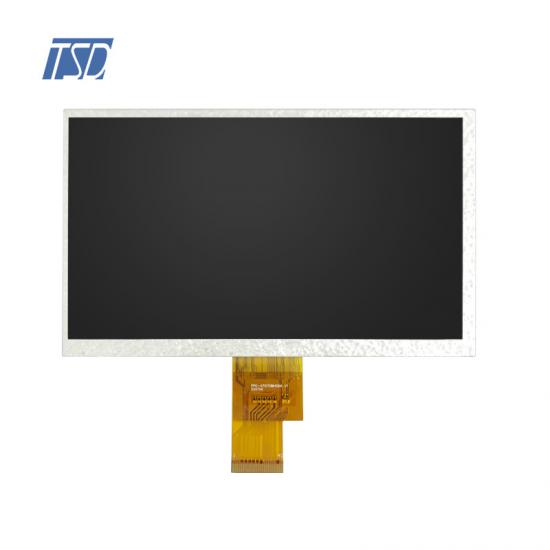

Team Source Display model TST070WSSN-42 is a standard color TFT LCD, normally white with transmissive type TN panel, 1024x600 resolution, NT52002H-D+NT51008CH-D IC, LVDS 40pin interface, 16.7M color depth, Anti-glare surface treatment.

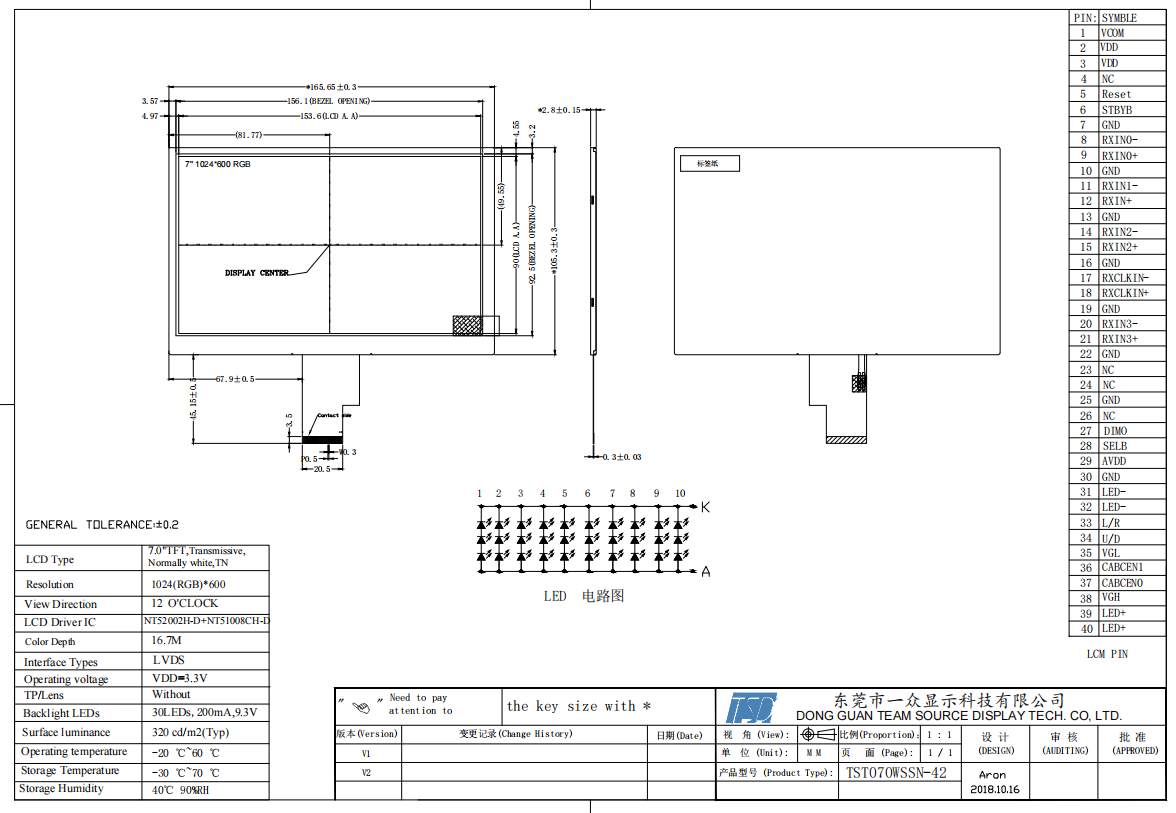

Drawing:
Specifications:
| General Specification | ||
| LCD Type. | 7"TFTTransmissive. Normally white,TN | |
| Part No. | TST070WSSN-42 | |
| Outline Dimension(mm) |
165.65(W)x105.3(H)x2.8(D) |
|
| Active Area(mm) | 153.6(W) x 90(H) | |
| Resolution(dots) | 1024x (RGB) × 600 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Operating Voltage |
3.3V | |
| Backlight | 30LEDs, 200mA, 9.3V | |
| Touch panel | available with CTP&RTP | |
| Driver IC | NT52002H-D+NT51008CH-D | |
| Pixel arrangement | RGB-stripe | |
| View direction | 12H | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | LVDS | |
| Module lifetime(Hours) | 30,000-50000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | VCOM | Common Voltage |
| 2 | VDD | Digital Power |
| 3 | VDD | LED Cathode |
| 4 | NC | Not connection |
| 5 | RESET | Global rest pin |
| 6 | STBYB |
Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z |
| 7 | GND | Power ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | LVDS differential data input |
| 10 | GND |
Power ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | LVDS differential data input |
| 13 | GND |
Power ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | LVDS differential data input |
| 16 | GND | Power ground |
| 17 | RXCLKIN- | -LVDS different clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Power ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | +LVDS differential data input |
| 22 | GND | Power ground |
| 23 | NC | Not connection |
| 24 | NC |
Not connection |
| 25 | GND |
Power ground |
| 26 | NC | Not connection |
| 27 | DIMO | |
| 28 | SELB |
6bit8bit mode select |
| 29 | AVDD |
Power for Analog Circuit |
| 30 | GND | ower ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | L/R |
Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35 | VGL | Gate OFF Voltage |
| 36 | CABCEN1 | CABC H/W enable |
| 37 | CABCEN0 |
CABC H/W enable |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
Applications:
For this 7 inch TFT LCD display TST070WSSN-42, 1024x600 resolution, widely used for smart home applications, washing machines and industrials panels.
Product Features:
1. 1024x600 resolution of 7 inch LCD display.
2. Square pixel
3. Standard touch screen and customization could be supported.
