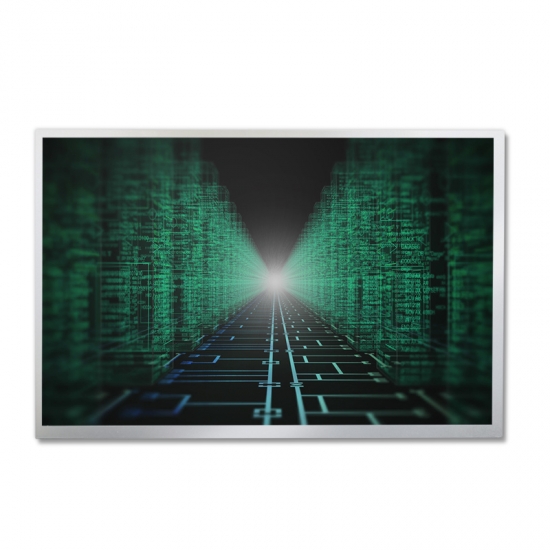

TSD 1280x800 resolution 12.1 inch ips lcd display monitors with LVDS interface

  • Model Name: TST121WXBH-01
  • LCD Type: 12.1 inch TFT LCD display
  • Resolution: 1280*1080
  • Viewing angle: IPS all viewing angle
  • Brightness: 400 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:

TSD TFT item number TST121WXBH-01 is 12.1 inch, IPS TFT LCD, 1280*800 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.





Specification
LCD type 12.1 inch ips display
Display type 12.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle All
Outline Dimension(mm) 2777.7x180.6x8.7 mm
Active Area.(mm) 261.12x163.2 mm
Resolution(dots) 1280xRGBx800
Operating Voltage 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally black
Luminance(cd/m2) 400(typ.)
Contrast Ratio 1200(typ.)
Application Notebook, advertisement display, etc.
Model Number TST121WXBH-01
Interface  LVDS
Module lifetime(Hours) 50,000-100,000

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VCC Power supply
2 VCC Power supply
3 NC Not connect
4 GND Ground
5 D0- Pixel data
6 D0+

Pixel data

7 GND Ground
8 D1- Pixel data
9 D1+ Pixel data
10 GND Ground
11 D2- Pixel data
12 D2+ Pixel data
13 GND Ground
14 CLK- Pixel data
15 CLK+ Pixel data
16 GND Ground
17 NC Not connect
18 NC Not connect
19 D3- Pixel data
20 D3+ Pixel data

Applications:



For our 12.1 inch LCD display TST121WXBH-01, it's widely using in automotiva grade applications.

Product Features:

1.12.1 inch 1920*700 res. with 20 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
