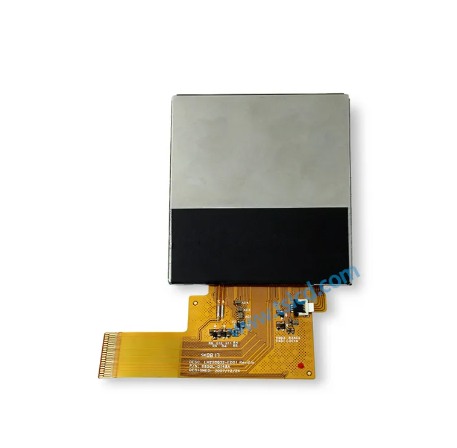

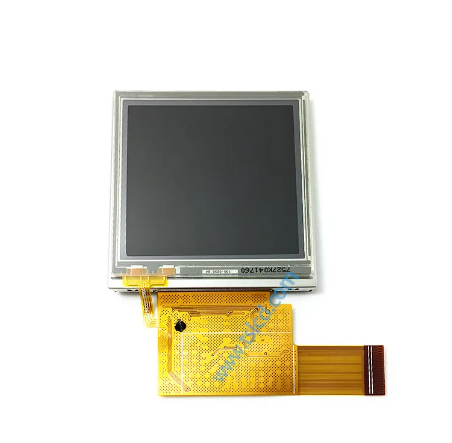

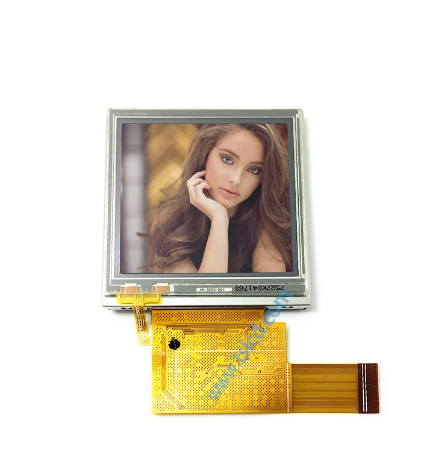

TSD 2.2 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution

General Specification

Part No.

TST022QVXH-03

Display Size(Diagonal)

2.2 inch

LCD type

TFT, TRANSFLECTIVE

Resolution

240 x (RGB) × 320

View Direction

12 o’clock

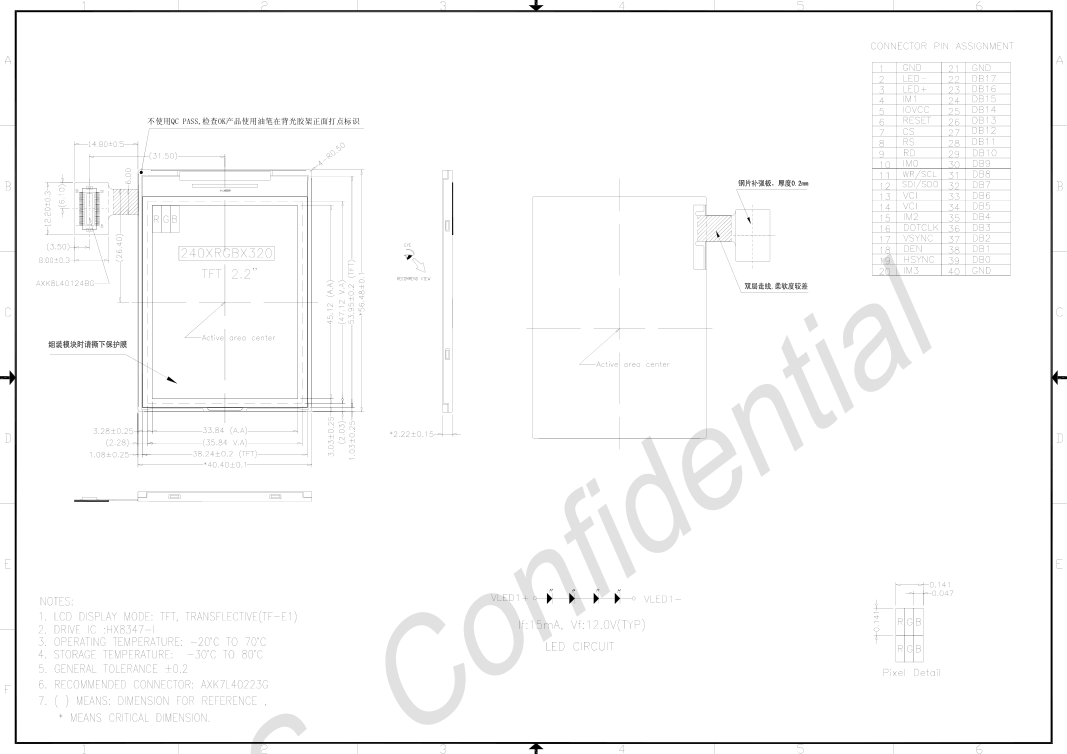

Module Outline

40.40×56.48×2.22

Active Area

33.84×45.12

Viewing Area

12 o’clock

Backlight

LED

Driver IC

HX8347-I

Interface

RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～70

Storage Temperature

-30～80

Pins Description

Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

LED- LED

DRIVER LED CATHODE -

3

LED+ LED

DRIVER LEDA ANODE -

4

IM1

System interface select.

For the detail,please refer to NOTE1

5

IOVCC

Power Supply Digital IO Pad power supply

6

RESET

LED DRIVER Reset pin.

7

CS

Chip select signal. Low: chip can be accessed;

High: chip cannot be accessed.

8

RS

(RS) Command / parameter or display data

selection pin.

9

RD

Read enable pin I80 parallel bus system

interface.

10

IM0

System interface select.

For the detail,please refer to NOTE1

11

WR/SCL

Write enable pin I80 parallel bus system interface.

(SCL) server as serial data clock in serial bus

system interface.

12

SDI/SD

Serial data input pin and output pin(SDO) in serial

bus system interface I.Serial data input pin (SDI) in

serial bus system interface II.The data is inputted

on the rising edge of the SCL signal

13

VCI

Power Supply Analog power supply -

14

VCI

Power Supply Analog power supply -

15

IM2

System interface select.

For the detail,please refer to NOTE1

16

DOTCL

Data clock signal in RGB interface

17

VSYNC

Vertical synchronizing signal in RGB interface

18

DEN

A data ENABLE signal in RGB I/F mode.

19

HSYNC

Horizontal synchronizing signal in RGB interface.

20

IM3

System interface select.

For the detail,please refer to NOTE1

21

GND

Power Supply Power Ground -

22

DB17

18-bit bi-directional data bus.

23

DB16

18-bit bi-directional data bus.

24

DB15

18-bit bi-directional data bus.

25

DB14

18-bit bi-directional data bus.

26

DB13

18-bit bi-directional data bus.

27

DB12

18-bit bi-directional data bus.

28

DB11

18-bit bi-directional data bus.

29

DB10

18-bit bi-directional data bus.

30

DB9

18-bit bi-directional data bus.

31

DB8

18-bit bi-directional data bus.

32

DB7

18-bit bi-directional data bus.

33

DB6

18-bit bi-directional data bus.

34

DB5

18-bit bi-directional data bus.

35

DB4

18-bit bi-directional data bus.

36

DB3

18-bit bi-directional data bus.

37

DB2

18-bit bi-directional data bus.

38

DB1

18-bit bi-directional data bus.

39

DB0

18-bit bi-directional data bus.

40

GND

Power Supply Power Ground
