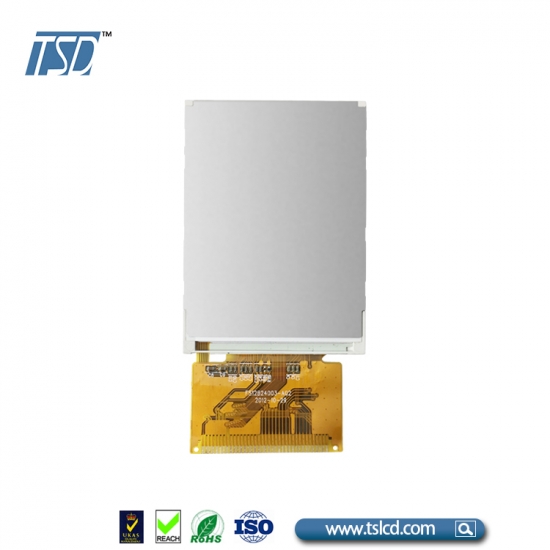

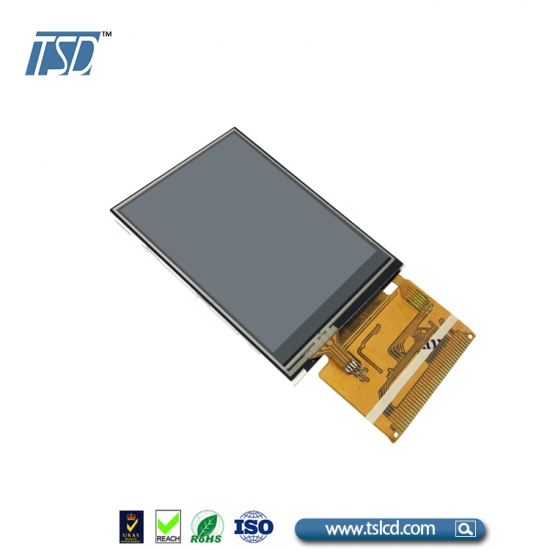

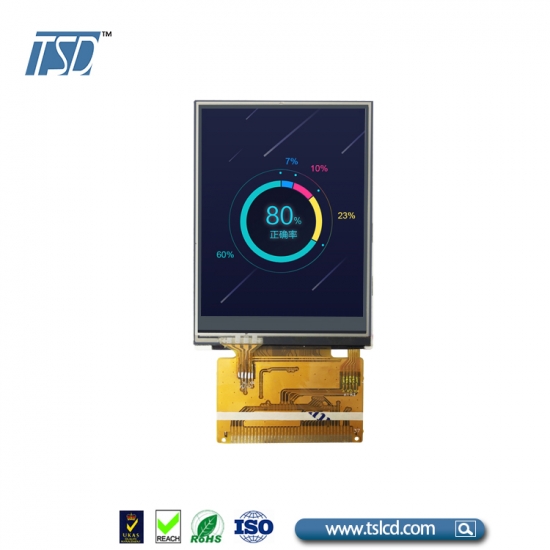

2.4inch QVGA TFT lcd Module
2.4 inch color TFT LCD display ,LCD COLOR TFT module display, TFT with touch screen ,high brightness and transmissive .
1- More than 18 year's experience of TFT LCM;
2-ISO9001&ISO14001&ISO13485&IATF16949 certified LCD manufacturer
3-Delivery in time;
4-Long life time;
5-1year warranty;
| Specification | |
| LCD type | 2.4 inch tft display module with CTP,Transmissive |
| Display type | 2.4" TFT, 262k color |
| Driver element | a-si TFT Active matrix |
| Outline Dimension(mm) | 42.72x60.26X2.3 |
| A.A.(mm) | 36.72x49.00 |
| Driver IC | ILI9341 |
| Resolution(dots)_ | 240*RGB*320 |
| Viewing Direction | 12H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Number of Pixel(pixels) | 240(H)x 3RGB x 320(V) |
| Operating Volatge | 3.2v |
| Logic Voltage | 1.8v-2.8v |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Surface treatment | Antiglare, Hard-Coating(3H) |
| Weight(g) | TBD |
| Backlight | 4 LEDs, White |
| Weight(g) | TBD |
| Interface | 8080 system 16 bits parallel interface |
| Module lifetime(Hours) | 50,000-100,000 |
