Description:

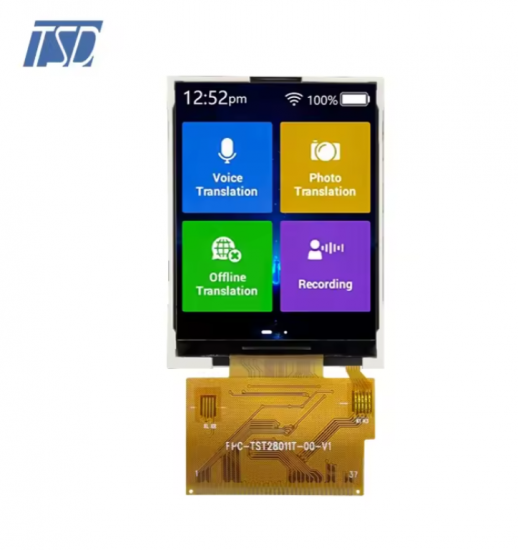

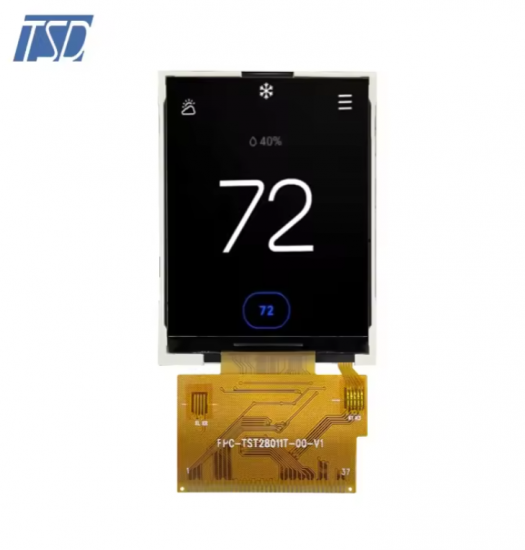

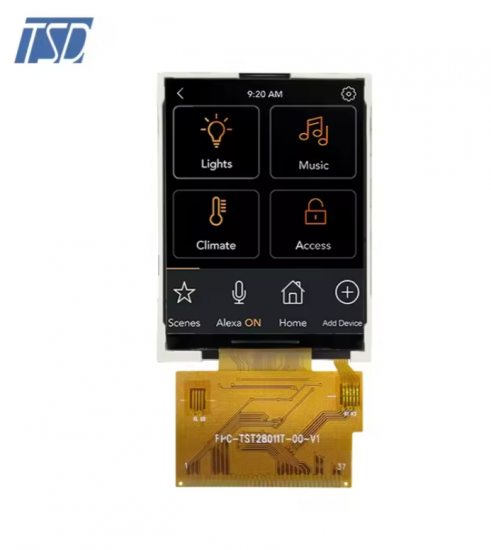

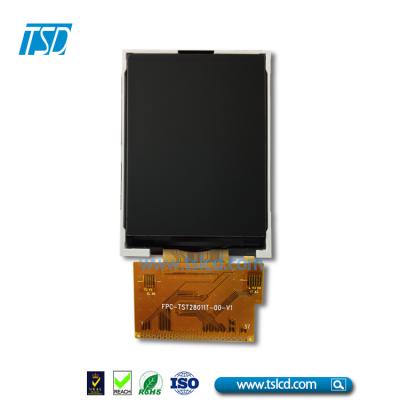

TST28011T-00 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 43.2 (W) x 57.6 (H) mm diagonally measured active area with 240 x (RGB) × 320 resolutions.

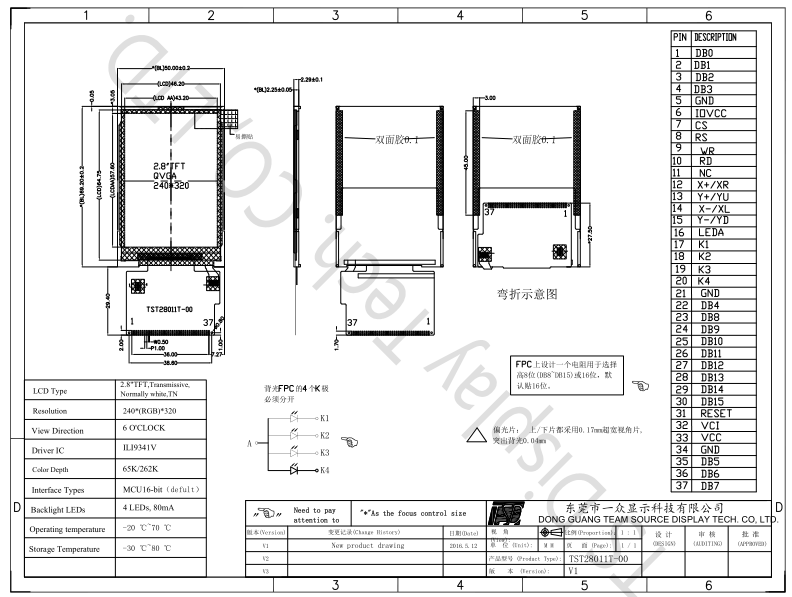

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST28011T-00 |
|
|
Outline Dimension(mm) |
50.0W) x 69.2(H) x 2.25(D) |
|
|
Active Area(mm) |
43.2 (W) x 57.6 (H) |
|
|
Resolution(dots) |
240 x (RGB) × 320 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Brightness |
-- |
|
|
Touch panel |
No |
|
|
Pixel arrangement |
RGB-stripe |
|
|
Display mode |
Normal white, TN |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
6 o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
|
B/L system |
TBD(Typ.) |
|
Interface |
RGB |
|
|
Driver IC |
ILI9341V |
|
|
PIN define |
||
|
1~4 |
Data BUS |
|
|
5 |
System Ground. (0V) |
|
|
6 |
Power supply +2.8V or 1.8V |
|
|
7 |
Chip select signal. |
|
|
8 |
Data/Command Selection pin |
|
|
9 |
write signal |
|
|
10 |
read signal |
|
|
11 |
NC |
|
|
12 |
NC |
|
|
13 |
NC |
|
|
14 |
NC |
|
|
15 |
NC |
|
|
16 |
Backlight A Aothod input pin. |
|
|
17~20 |
Backlight K Cathode input pin. |
|
|
21 |
System Ground. (0V) |
|
|
22 |
Data BUS |
|
|
23~30 |
Data BUS |
|
|
31 |
Reset input signal |
|
|
32 |
Power supply +2.8V |
|
|
33 |
Power supply +2.8V or 1.8V |
|
|
34 |
System Ground. (0V) |
|
|
35~37 |
Data BUS |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
