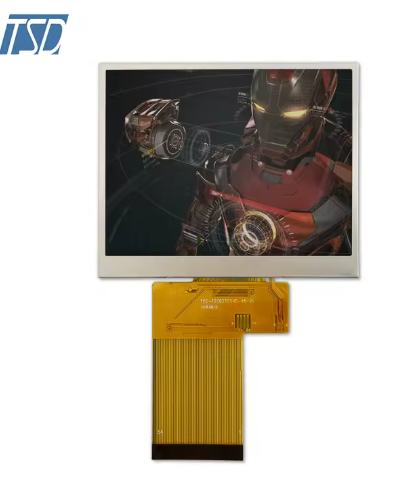

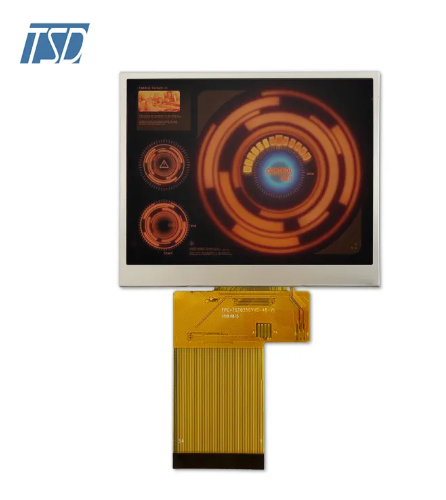

TSD 3.5 Inch 320x240 resolution TFT LCD with 24 bits RGB interface

LCD Type:a-Si TFT,Transmissive,Normally black,IPS

Resolution: 320 x (RGB) × 240

View Direction: All o'clock

LCD driver IC: ST7272A

Interface types: 3SPI/RGB24-bit

Operating voltage: 3.3

With TP/Lens: Without

Backlight: 6 LED, 20mA,18.8V

Surface luminance: 550min,650typ

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST035QVHS-46B is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 70.08(W) x 52.56 (H) mm diagonally measured active area with 3SPI/RGB24-bit resolutions.

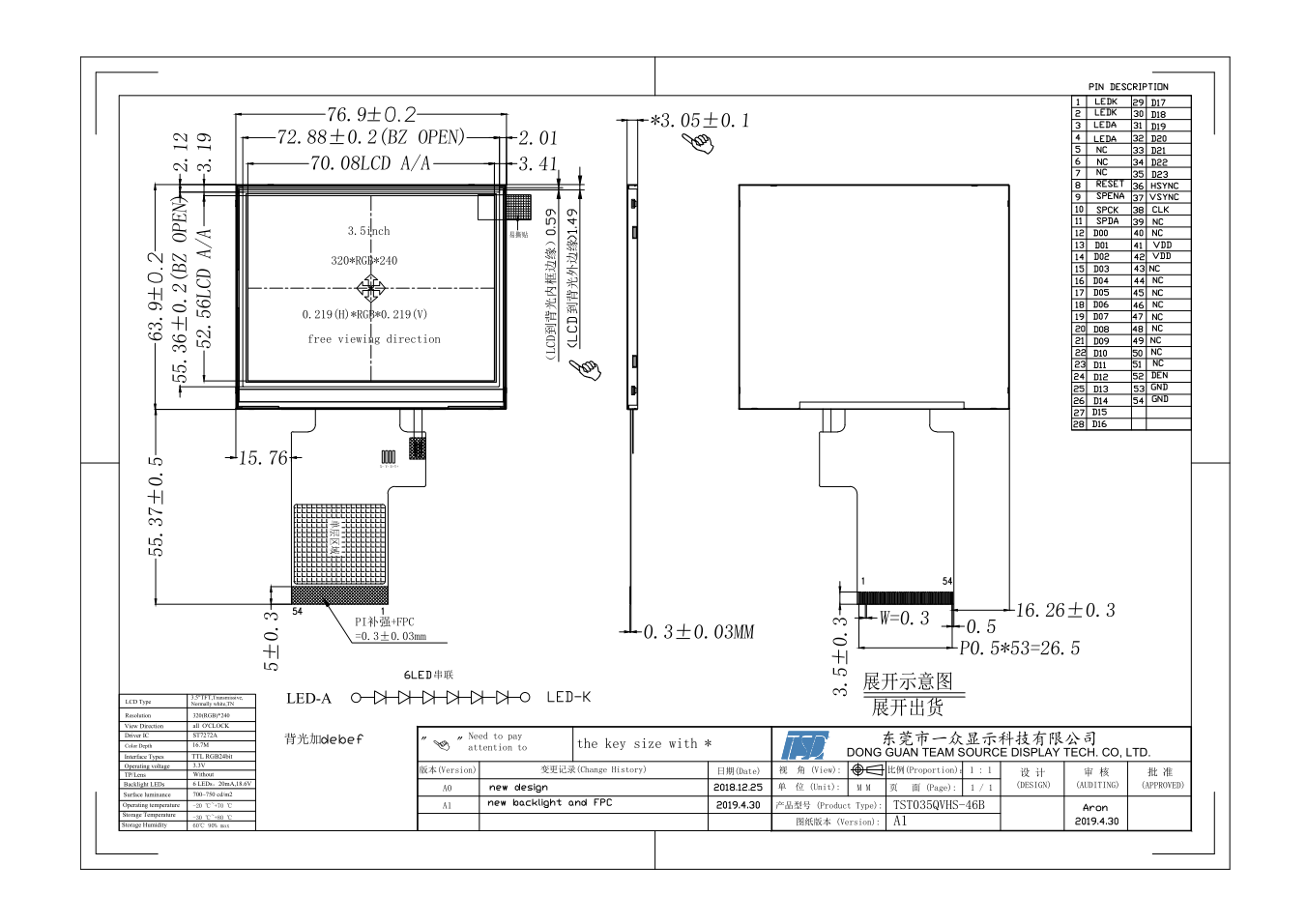

Drawing:



Specifications:



Part No.

TST035QVHS-46B

Outline Dimension(mm)

77.0(W) x 64.0(H) x3.2(D)

Active Area(mm)

70.08(W) x 52.56 (H)

Resolution(dots)

320 x (RGB) × 240

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

550cd/m2

Touch panel

No

Pixel arrangement

TTL RGB24bi

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)



B/L system

TBD(Typ.)

Interface

3SPI/RGB24-bit



Pins Description

Pin No.

Symbol

Description

1

LEDK

Cathode of LED backlight.

2

LEDK

 Cathode of LED backlight

3

LEDK

Anode of LED backlight

4

LEDA

Anode of LED backlight

5

NC

Not Connection

6

NC

Not Connection

7

NC

Not Connection

8

RESET

System reset pin.

9

CS

Chip select pin

10

SCK

Serial clock input

11

SDA

Data input/output pin in serial interface

12~19

B0-B7

Blue Data bus:B0~B7

20~27

G0-G7

Green Data bus:G0~G7

28~35

R0-R7

Red Data bus:R0~R7

36

HSYNC

Line Synchronization input

37

VSYNC

Frame/Ram Write Synchronization input

38

DCLK

Dot-clock signal and oscillator source.

39

NC

Not Connection

40

NC

Tearing Effect output signal

41

VDD

Power supply for digital voltage

42

VDD

Power supply for digital voltage

43

NC

Not Connection

44

NC

Not Connection

45

NC

Not Connection

46

NC

Not Connection

47

NC

Not Connection

48

X-

Not Connection

49

Y-

Not Connection

50

X+

Not Connection

51

Y+

Not Connection

52

DE

Display enable pin from controller. 53 GND Ground. 54 GND Ground.



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
