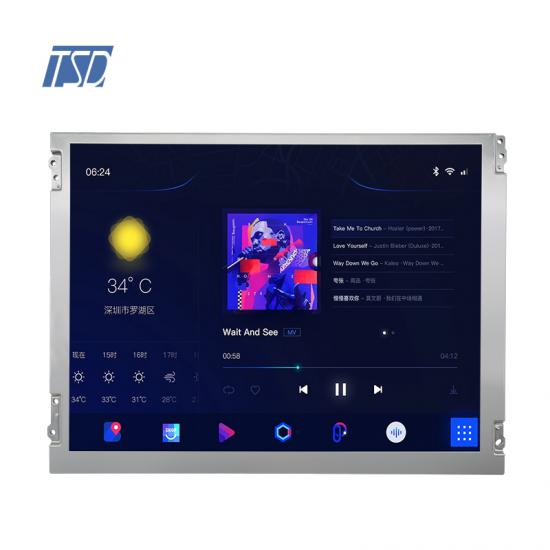

12.1 inch tft lcd display 1024*RGB*768 res LVDS interfacewith high brightness 1000 cd/m²
| Specification | |
| LCD type |
12.1 inch ips display |
| Display type | 12.1 inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
|
Viewing angle |
All |
| Outline Dimension(mm) | 260.5x204x8.4 |
| Active Area.(mm) | 245.76x184.32 |
| Resolution(dots) |
1024xRGBx768 |
|
Operating Voltage |
3.3V |
| Operating temperature(°C) | -30~75 |
| Storage temperature(°C) | -40~80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode |
Normally black |
| Luminance(cd/m2) | 1000(typ.) |
| Contrast Ratio | 1000(typ.) |
| Application | Notebook, advertisement display, etc. |
|
Number of pins |
20 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
