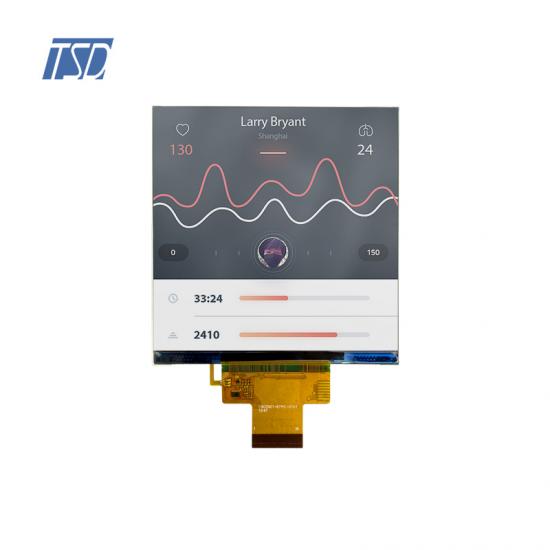

TSD 4 inch square 720x720 SPI+RGB lcd display

  • Model Name: TST040WVBN-23
  • LCD Type: 4.0 inch TFT LCD display
  • Resolution: 720x720
  • Viewing angle: All o'clock
  • Brightness: 320 cd/m2
  • Driver IC: NV3052CGRB
  • Interface: SPI+RGB interface
  • Touch Screen: could be with capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST040WVBN-23 is 4.0 inch 720x720 resolution SPI+RGB interface LCD display module with square shape, which is very suitable for home smart product. It is with standard capacitive touch, the brightness is 320 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15V, which could be customized. For this 4.0 inch TFT LCD module, driver IC is NV3052CGRB, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.


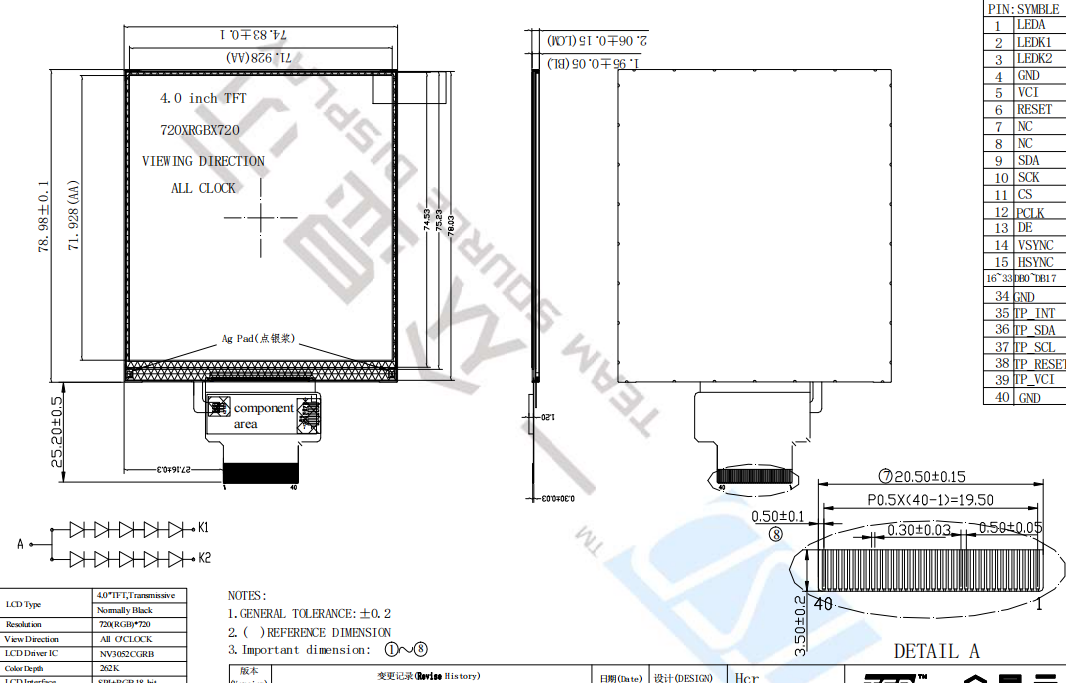

Drawing:



4.0 inch rgb+SPI square lcd


Specifications:



General Specification
Part No.  TST040WVBN-23
Outline Dimension(mm)  74.83x78.98x2.06
Active Area(mm) 71.93x71.93
Resolution(dots) 720x720
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 720(H)xRGBx720(V)
Touch panel  could be with standard CTP
Driver IC NV3052CGRB
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.0 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI+RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDA Backlight A Aothod input pin.
2-3 LEDK Backlight K Cathode input pin.
4 GND System Ground. (0V)
5 VCI Power supply +2.8Vt
6 RESET Reset input signal
7-8 NC No connect
9 SDA SPI Data input/ouput
10 SCK SPI clock input
11 CS Chip select signal.
12 PCLK Dot clock signal
13 DE A data ENABLE input signal
14 VSNYC Frame synchronizing signal
15 HSYNC Line synchronizing signal
16-33 DB0-DB17 RGB Data input
34 GND System Ground. (0V)
35-40 NC No connect




Applications:



For our 4.0 inch 720x720 LCD display TST040WVBN-23, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.0" contains 720x720 dots and can display up to 16.7M colors.
