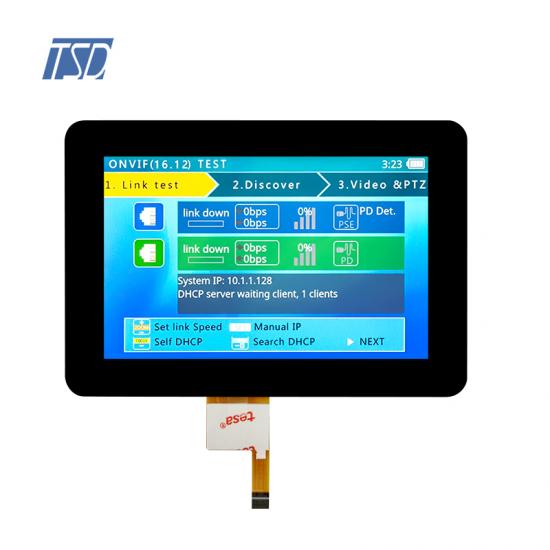

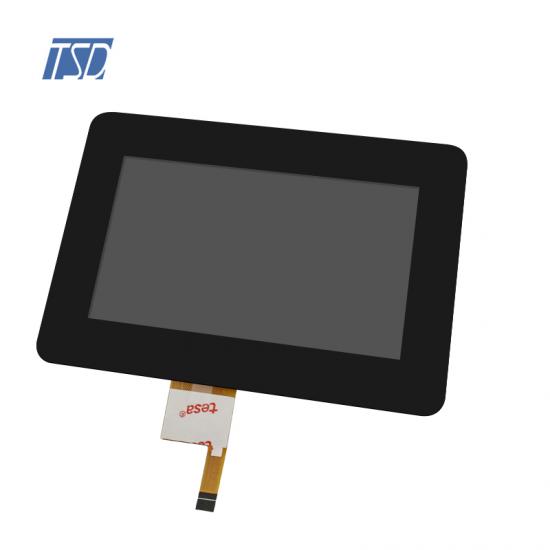

TSD 480 x272 resolution 4.3 inch touch lcd display SSD1963 board with MCU interface

  • Model Name: TSM043WQHS-99C
  • LCD Type: 4.3 inch IPS TFT display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 650 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

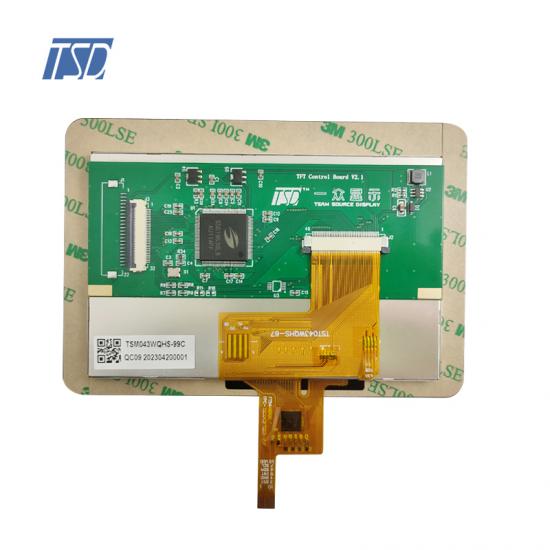

TST043WQHS-99C is a 4.3 inch touch display module with SSD1963 controller board, resolution is WQVGA 480x272, using IPS glass with full viewing angle. This 4.3 inch LCD is coming out from MCU interface, with the convert board of Solomon IC SSD1963. Outline size of CTP is 123.04x84.46mm, CTP V.A. is 96.64x55.46mm, LCD A.A. is 95.04x53.86mm. Color depth is 16.7M, support MCU 8 bits or 16 bits. This model is with our standard PCAP design, touch controller is FT5446, we could also make the customized designs basing on customer's needs.

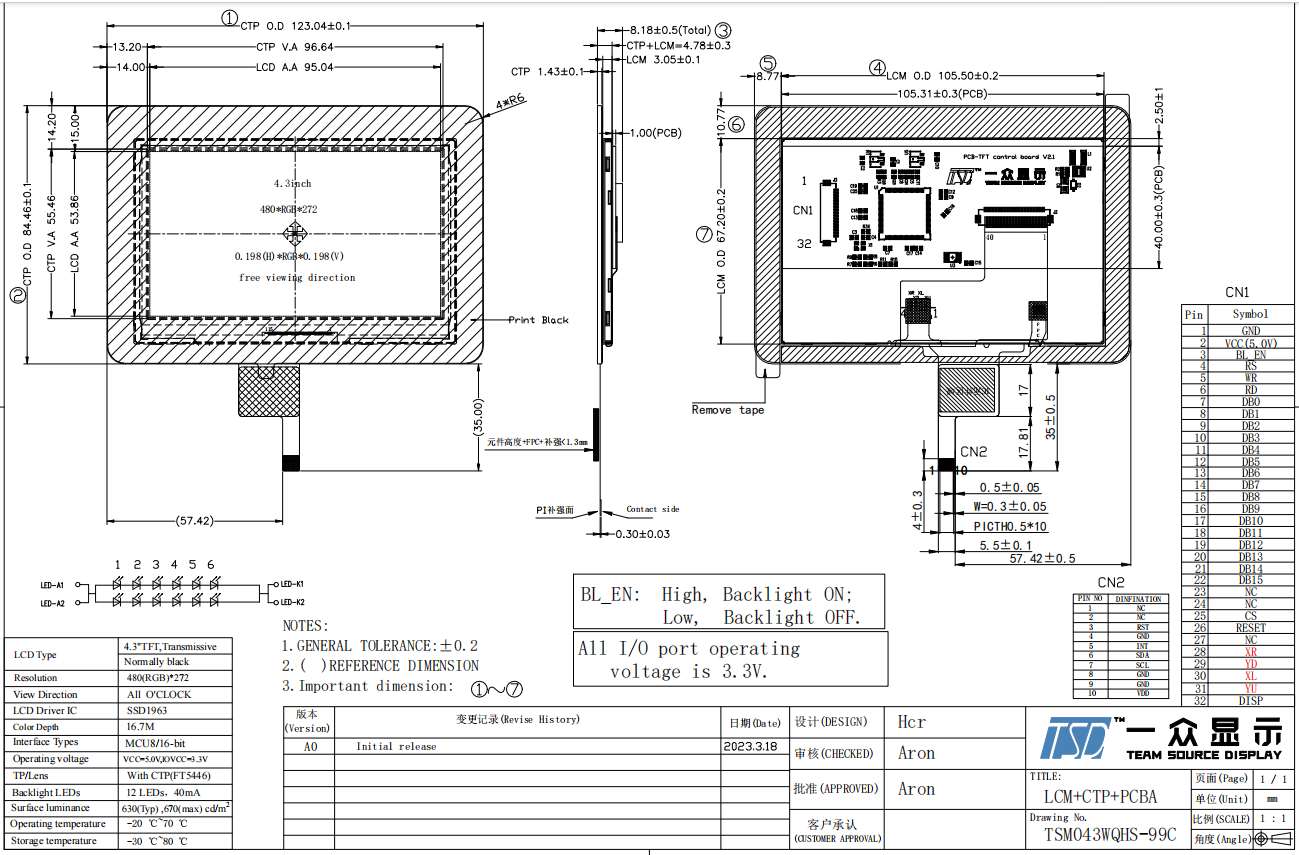

Drawing:




Specifications:



General Specification
Part No.  TSM043WQHS-99C
Outline Dimension(mm)

123.04(W)x84.46(H)x8.18(D)

Active Area(mm) 95.04(W) x 53.83(H)
Resolution(dots) 480x (RGB) × 272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480RGB(H)xRGBx272V)
Touch panel  with CTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description for LCD (CN1)
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 NC/XR Not connection/The touch panel × right
29 NC/YD Not connection/The touch panel Y down
30 NC/XL Not connection/The touch panel X left
31 NC/YU Not connection/The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.





CTP interface Description  (CN2)
Pin No.  Symbol Description
1 NC No connection
2 NC No connection
3 RST External Reset, Low is active
4 GND Ground
5 INT Interrupt request to the host
6 SDA I2C data input and output
7 SCL I2C clock input
8 GND Ground
9 GND Ground
10 VDD Power supply +3.3V




Applications:



TSD is offering all kinds of TFT LCD with SSD1963 control board that are ideal for different applications including:



Embedded systems

Industrial instrustment

Security equipment

Hand-held terminals

Medical devices etc.
