Description:

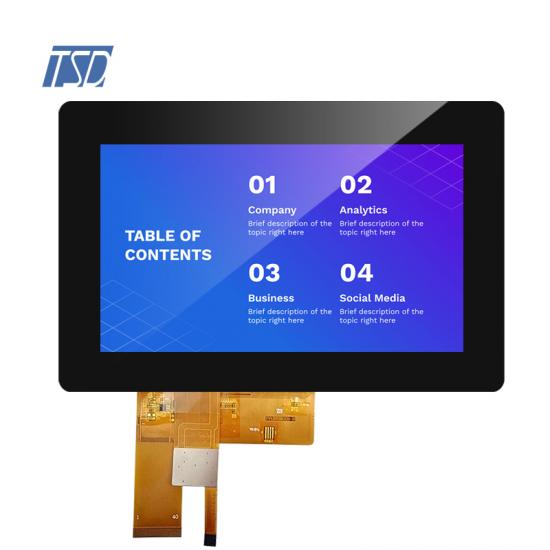

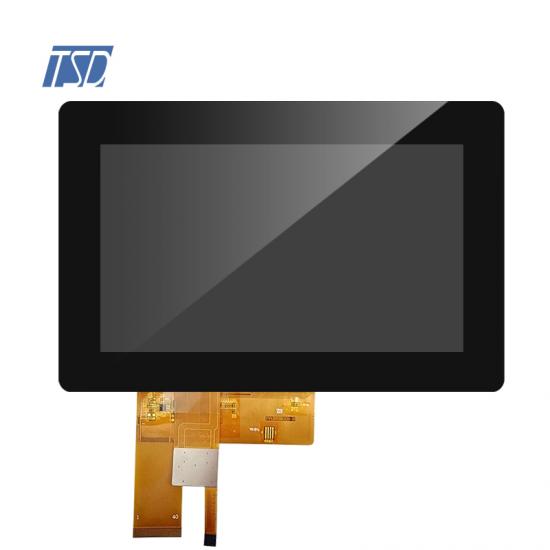

Team Source Display model TST070WVBE-31/32/33 serials are the standard 7'' color TFT LCD, normally white with transmissive type TN panel,
wvga 800x480 resolution, EK9716BD&EK73002ACGB driver IC, RGB-24bits 40pin interface, 16.7M color depth, Anti-glare surface treatment.
with RTP& CTP available, different brightness from 200~1000nits.

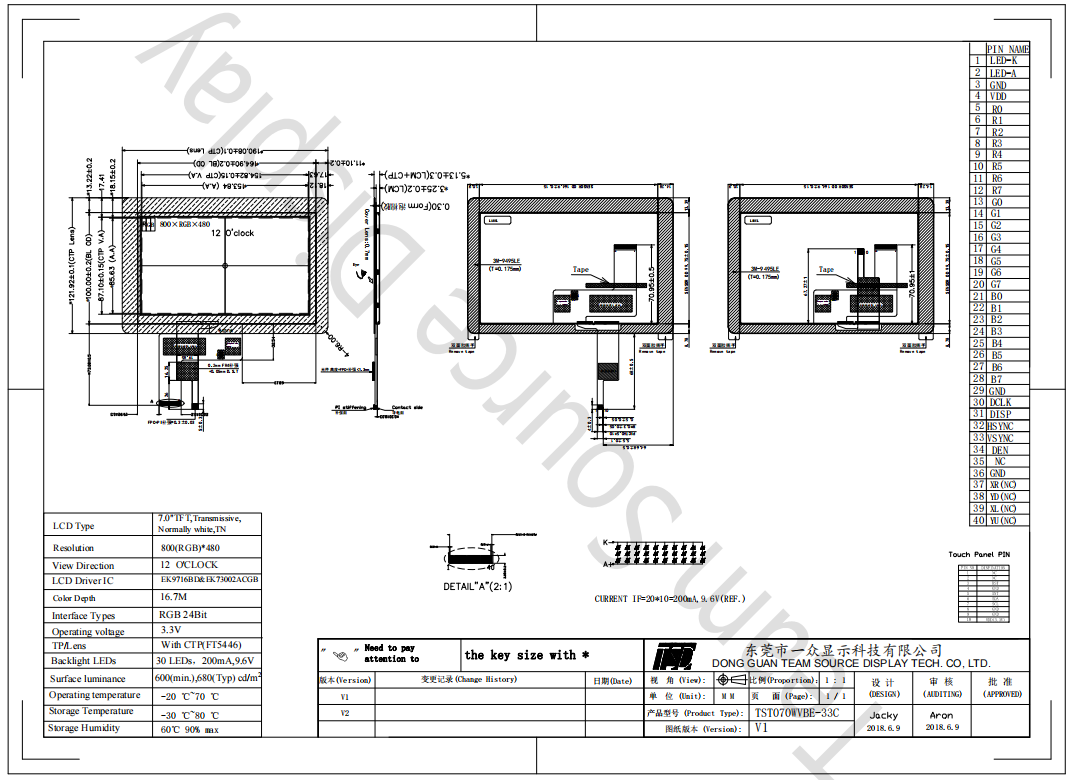

Drawing:
Specifications:
| General Specification | ||
| Display mode |
7'' TFT, Transmissive, Normal white,TN, |
|
| Part No. | TST070WVBE-33C | |
| Outline Dimension(mm) |
190.08(W)x121.92(H)x5.05(D) |
|
| Active Area(mm) | 153.84(W) x 85.63(H) | |
| Resolution(dots) | 800x (RGB) × 480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Operating Voltage |
3.3V | |
| Touch panel | with CTP (FT5446) | |
| Driver IC | EK9716BD&EK73002ACGB | |
| Pixel arrangement | RGB-stripe | |
| View direction | 12H | |
| Interface | RGB 24bits |
|
| Brightness | 200nits | |
| Backlight | 30LEDs, 200mA, 9.6V | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Module lifetime(Hours) | 30,000-50000 | |
| LCM interface definition | ||
| Pin No. | Symbol | Description |
| 1 | LEDK | Backlight K Cathode input pin |
| 2 | LEDA | Backlight A Anode input pin |
| 3 | GND | System Ground.(0V) |
| 4 | VDD | Power supply +3.3V |
| 5-12 | R0-R7 | Red data BUS |
| 13-20 | G0-G7 | Green data BUS |
| 21-28 | B0-B7 | Blue data BUS |
| 29 | GND | System ground. (0V) |
| 30 | CLK | Clock for input data. Data latched at the rising/falling edge of this signal. Default is falling edge. |
| 31 | DISP |
Standby mode control. (Normally pull high). DISP="L", enter standby mode for power saving. Timing controller and source driver will tum off, all outputs are Hi-Z DISP="H", normal operation. |
| 32 | HSYNC | Horizontal sync input in digital parallel RGB. Negative polarity. |
| 33 | VSYNC | Vertical sync input in digital parallel RGB. Negative polarity. |
| 34 | DEN |
Input data enable control. When DE mode, active High to enable data input. (Normally pull low) |
| 35 | NC | Not connection |
| 36 | GND | System ground. (0V) |
| 37 | XR/X+ | Not connection |
| 38 | YD/Y- | Not connection |
| 39 | XL/X- | Not connection |
| 40 | YU/Y+ | Not connection |
| CTP interface definition | ||
| Pin No. | Symbol | Description |
| 1 | NC | Not connect |
| 2 | NC | Not connect |
| 3 | RST | External Reset, Low is active |
| 4 | GND | Ground.(0V) |
| 5 | INT | Interrupt request to the host |
| 6 | SDA | 12C data input and output |
| 7 | SCL | 12C clock input |
| 8 | GND | Ground.(0V) |
| 9 | GND | Ground.(0V) |
| 10 | VCC | Power supply +3.3V |
Applications:
For this 7 inch TFT LCD display TST070WVBE-33C, 800x480 resolution, suitable for Industrials Equipment,
Medical devices, Household appliances, consumer products.
Product Features:
1. 800x480 7'' LCD with CTP
2. Operating temperature -20~+70 degree.
